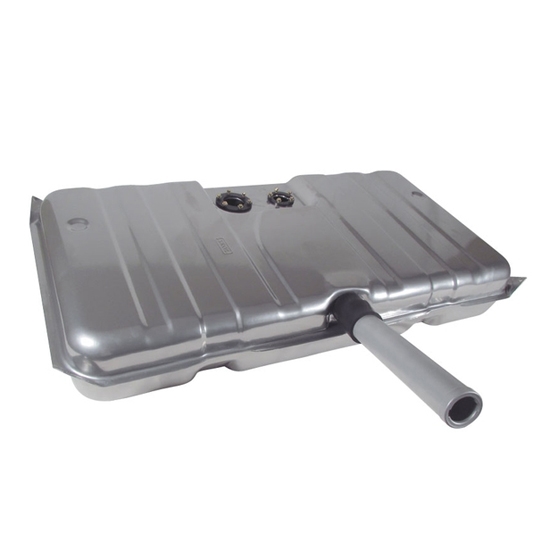

Tanks Inc. TM46D-T EFI Fuel Tank Kit, 1970 Chevy Nova

#91076244

Tanks Inc. TM46D-T EFI Fuel Tank Kit, 1970 Chevy Nova

Name: Tanks Inc. TM46D-T EFI Fuel Tank Kit, 1970 Chevy Nova
Brand: Tanks
SKU: 91076244
Price: 578.99 USD
Availability: InStock
Rating: 5 (4 reviews)

4 Reviews

Ask a Question

Includes genuine Walbro GSS340 electric fuel pump 255 LPH @ 40 PSI
Fits 1970 Chevy Nova
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation

$578.99

/each

In Stock

$599.95

Save $20.96

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

1970 Chevy Nova, EFI Conversion Fuel Tank Style, Steel

Includes genuine Walbro GSS340 electric fuel pump 255 LPH @ 40 PSI
Fits 1970 Chevy Nova
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Heavy 10 gauge no-warp mounting plate
In-tank wiring harness

See more details

Key Specs

MFG. Part #	TM46D-T-KIT
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks TM46D-T-KIT Details

These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1970 Chevy Nova
20 gallon capacity
38" x 19-3/8" x 8-3/8" (1" deeper than stock)
Longer straps included with the tank
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Charts

Walbro GSS340 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (91076244)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks TM46D-T-KIT Specifications

KEY SPECS
MFG. Part #	TM46D-T-KIT
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	Yes
Overall Length	39"
Overall Width	20.5"
Overall Height	8.375"
Hardware Included	Yes
Fuel Capacity Range	20.00-24.99 Gallons

GENERAL
Sold in Quantity	Kit
GTIN Code	691852329168
Fuel Type	Gasoline
Inlet Fitting	1/4" NPT
Baffled	Yes
Filler Neck Included	Yes
