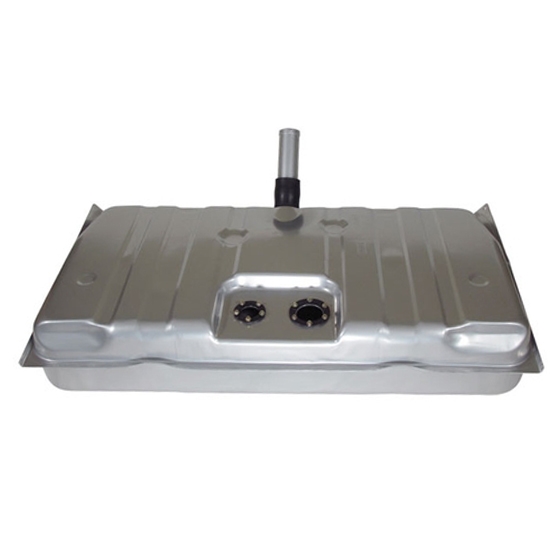

Tanks Inc. TM42A-T EFI Fuel Tank Kit, 1970-73 Camaro/Firebird

#91076241

Tanks Inc. TM42A-T EFI Fuel Tank Kit, 1970-73 Camaro/Firebird

Name: Tanks Inc. TM42A-T EFI Fuel Tank Kit, 1970-73 Camaro/Firebird
Brand: Tanks
SKU: 91076241
Price: 598.99 USD
Availability: InStock
Rating: 5 (4 reviews)

4 Reviews

4 Questions

Includes genuine Walbro GSS340 electric fuel pump 255 LPH @ 40 PSI
Specifically designed for the 1970-1973 Camaro/Firebird
Has a 20.5 gallon capacity and measures 40-1/8" x 20-5/8" x 8"

$598.99

/each

In Stock

$603.95

Save $4.96

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

70-73 Chevy Camaro, 70-73 Pontiac Firebird, Steel

Includes genuine Walbro GSS340 electric fuel pump 255 LPH @ 40 PSI
Specifically designed for the 1970-1973 Camaro/Firebird
Has a 20.5 gallon capacity and measures 40-1/8" x 20-5/8" x 8"
It is 1" deeper than stock and comes with corresponding longer straps
Kit includes aftermarket 5-bolt sender tuned for original factory fuel gauge

See more details

Key Specs

MFG. Part #	TM42A-T-KIT
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20.5 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks TM42A-T-KIT Details

These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1970-1973 Chevy Camaro and Firebird
20.5 gallon capacity (1" deeper than stock)
Longer straps included with the tank
40-1/8" x 20-5/8" x 8"
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Charts

Walbro GSS340 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (91076241)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Tanks TM42A-T-KIT Specifications

KEY SPECS
MFG. Part #	TM42A-T-KIT
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20.5 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	Yes
Overall Length	40.125"
Overall Width	20.625"
Overall Height	8"
Hardware Included	Yes
Fuel Capacity Range	20.00-24.99 Gallons

GENERAL
Sold in Quantity	Kit
GTIN Code	691852329038
Fuel Type	Gasoline
Baffled	Yes
Filler Neck Included	Yes

Ratings & Reviews

4 Reviews

Overall Assessment

Customers highly appreciate the product for its exact fit and excellent finish, highlighting its high quality. The EFI kit, made specifically for diverse vehicles, is noted for its availability. Users have also praised the product for its competitive pricing. Trusted to provide responsive interactions, customers express assured satisfaction. The product's qualities strongly position it as a superior choice compared to others in the market.

Write A Review

4 reviews

Filter by Ratings

Sort Reviews

In stock kit!

5.0

4 years ago

Stv

NE IN

Verified

Full EFI kit for my exact ride, AND in stock!

Would Recommend

I would buy this tank again!

5.0

8 years ago

70 camaro

new england

Verified

the fit and finish is great!

Would Recommend

quality

5.0

11 years ago

ohb

carrollton, georgia

Verified

I couldn't find this TANKS fuel tank at a better price, and SPEEDWAY ships quickly. Also, I know that if I have a question or a problem, they will hear me and answer.

Would Recommend

quality

5.0

11 years ago

ohb

carrollton, georgia

Verified

I couldn't find this TANKS fuel tank for a better price, and SPEEDWAY ships quickly. Also, I know they answer me when I have a question or a problem.

Would Recommend

Showing 4 of 4 reviews

Questions & Answers

4 Questions • 4 Answers

Sort Questions

Does it have a fitting for a return line?

by Ryan

• 9 years ago

1 answer

View Answer

will this pump work/last using a regulator to reduce pressure to 6-7 psi for carburetor on engine making @ 600 horsepower? I know the pump that Tanks Inc makes will work as they recommend the 190 psi unit. I can not afford fuel injection at this time but I would like to be ready when I can

by sarge

• 9 years ago

1 answer

View Answer

What are the dimensions of this tank

by Farm kid Keith

• 10 years ago

1 answer

View Answer

does this tank have anti fuel starve baffles in it? does it come with fuel sending unit & pump mount

by owen

• 11 years ago

1 answer

View Answer

4 of 4 questions shown

Fitment

1970-1973 Chevy Camaro

1970-1973 Pontiac Firebird
