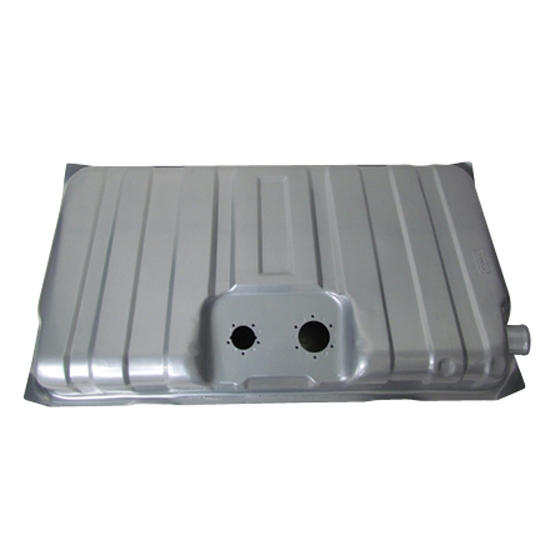

Tanks Inc. TM41-T EFI Fuel Tank Kit, 1962-64 Chevy II/Nova

-11%

#91076239

Tanks Inc. TM41-T EFI Fuel Tank Kit, 1962-64 Chevy II/Nova

Name: Tanks Inc. TM41-T EFI Fuel Tank Kit, 1962-64 Chevy II/Nova
Brand: Tanks
SKU: 91076239
Price: 636.99 USD
Availability: InStock
Rating: 5 (2 reviews)

2 Reviews

1 Question

Includes genuine Walbro GPA-4 GSS340 electric fuel pump 255 LPH @ 40 PSI
Fits 1962-1964 Chevy II/Nova (will not fit wagons with 3rd row seats)
16 gallon capacity

$636.99

/each

In Stock

$716.95

Save $79.96

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

62-64 Chevy Chevy II, EFI Conversion Fuel Tank Style

Includes genuine Walbro GPA-4 GSS340 electric fuel pump 255 LPH @ 40 PSI
Fits 1962-1964 Chevy II/Nova (will not fit wagons with 3rd row seats)
16 gallon capacity
No modification needed to your car
Heavy 10 gauge no-warp mounting plate

See more details

Key Specs

MFG. Part #	TM41-T-KIT30
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	16 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks TM41-T-KIT30 Details

These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1962-1964 Chevy II/Nova (will not fit wagons with 3rd row seats)
16 gallon capacity
34-1/4" x 18-7/8" x 8-3/4"
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Charts

Walbro GSS340 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (91076239)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877) 596-3842.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks TM41-T-KIT30 Specifications

KEY SPECS
MFG. Part #	TM41-T-KIT30
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	16 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	No
Overall Length	34.25"
Overall Width	18.875"
Overall Height	8.75"
Hardware Included	Yes
Fuel Capacity Range	15.00-19.99 Gallons

GENERAL
Sold in Quantity	Kit
Fuel Type	Gasoline
Inlet Fitting	1/4" NPT
Baffled	Yes
Filler Neck Included	No

Ratings & Reviews

2 Reviews

Overall Assessment

Customers appreciate the utility and quality the product offers, especially for L/S engine swaps. The kit provides all necessary parts, thus proving its practicality. It stands out in terms of material quality, accentuated by a beautiful finish on the tank. The assembly process is straightforward, augmenting the product's usability. Compared to competitors, customers prefer our product, emphasizing its exceptional quality and comprehensive features. Its performance excellence solidifies customer satisfaction, setting it apart from others.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

It was just what I needed for my L/S engine swap.

5.0

a year ago

David R.

Heathsville Va.

Verified

It has everything needed to complete the swap.

Would Recommend

Very nice quality

5.0

3 years ago

Russ

Wichita, Kansas

Verified

I haven't installed it in my car yet but I assembled the pump and sending unit and it seems like everything is nice quality. Beautiful finish on the tank itself.

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

Hello. Do these tank kits come with the mounting straps?

by mini

• 11 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1962-1964 Chevy Chevy II
