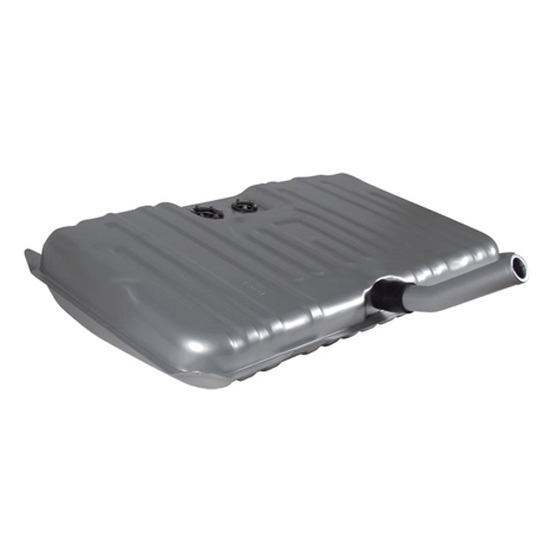

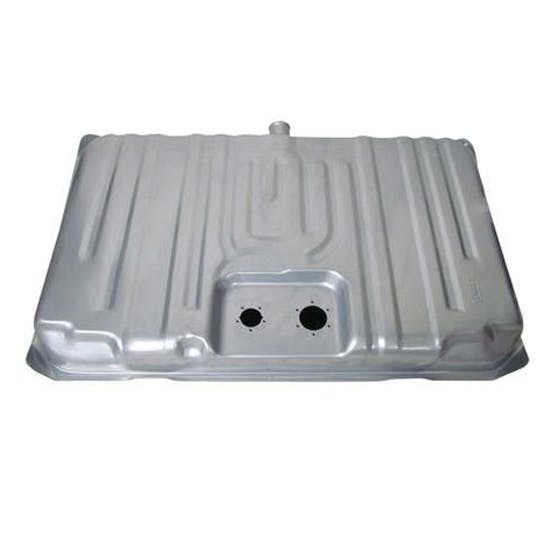

Tanks Inc. TM34F-T EFI Fuel Tank Kit, 1970 Monte Carlo
$543.99
/each
Factory Shipped
$596.95
Save $52.96
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | TM34F-T-KIT |
| Fuel Tank Style | EFI Conversion |
| Fuel System Type | EFI |
| Capacity | 20 gallons |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyTanks TM34F-T-KIT Details
Tanks TM34F-T-KIT Details
These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).
- Fits 1970 Chevrolet Monte Carlo
- 20 gallon capacity
- 39-1/4" x 24-1/2" x 7-3/4"
- Coated galvanized steel construction
- Silver powder coated finish
- EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fuel pump/sender are recessed in tank for easy installation
- No modification needed to your car
- Looks like an OE tank when installed
- Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
- Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness
Charts
Walbro GSS340 Flow Chart (PDF)
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Tanks TM34F-T-KIT Specifications
Tanks TM34F-T-KIT Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | TM34F-T-KIT |
| Brand | Tanks |
| Fuel Tank Style | EFI Conversion |
| Fuel System Type | EFI |
| Capacity | 20 gallons |
| Material Type | Steel |
| Finish | Powder Coated |
| Color | Silver |
| Sending Unit Included | Yes |
| Fuel Pump Included | Yes |
| Tank Straps Included | No |
| Overall Length | 39.25" |
| Overall Width | 24.5" |
| Overall Height | 7.75" |
| Hardware Included | Yes |
| Fuel Capacity Range | 20.00-24.99 Gallons |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 691852328321 |
| Filler Neck Included | Yes |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
1970 Chevy Monte Carlo
