#91076217

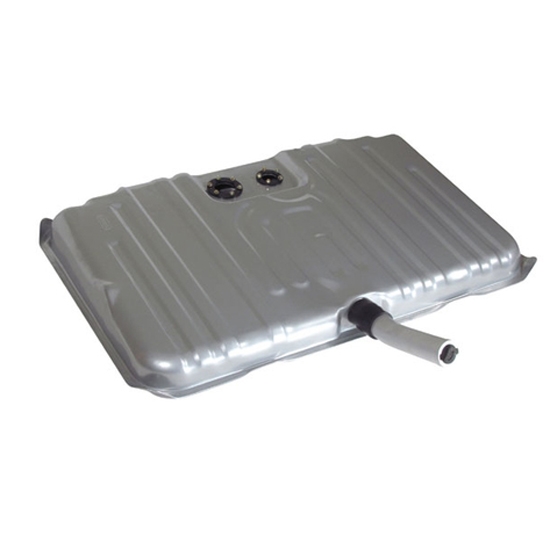

Tanks Inc. TM34B-T EFI Fuel Tank Kit, 1968-69 Chevelle
- Specially designed to fit the 1968-69 Chevelle
- Has a 20 gallon capacity and measures 39-1/4" x 24-1/2" x 7-3/4"
- Features a coated galvanized steel construction with a silver powder coated finish
$608.99
/each
On Backorder
$614.95
Save $5.96
This part is Backordered. We estimate this item will ship on or before November 1st.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
1970 Skylark, 68-69 Chevelle, 68-69 Beaumont, Steel
- Specially designed to fit the 1968-69 Chevelle
- Has a 20 gallon capacity and measures 39-1/4" x 24-1/2" x 7-3/4"
- Features a coated galvanized steel construction with a silver powder coated finish
- Includes a EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
- There is no modification needed to your car and looks just like the original when installed
Key Specs
| MFG. Part # | TM34B-T-KIT |
| Fuel Tank Style | EFI Conversion |
| Fuel System Type | EFI |
| Capacity | 20 gallons |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyTanks TM34B-T-KIT Details
Tanks TM34B-T-KIT Details
These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).
- Fits 1968-1969 Chevelle/Beaumont, 1970 Buick Skylark
- 20 gallon capacity
- 39-1/4" x 24-1/2" x 7-3/4"
- Coated galvanized steel construction
- Silver powder coated finish
- EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fuel pump/sender are recessed in tank for easy installation
- No modification needed to your car
- Looks like an OE tank when installed
- Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
- Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness
Charts
Walbro GSS340 Flow Chart (PDF)
Guides & Documents
Warranty Information
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Tanks TM34B-T-KIT Specifications
Tanks TM34B-T-KIT Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | TM34B-T-KIT |
| Brand | Tanks |
| Fuel Tank Style | EFI Conversion |
| Fuel System Type | EFI |
| Capacity | 20 gallons |
| Material Type | Steel |
| Finish | Powder Coated |
| Color | Silver |
| Sending Unit Included | Yes |
| Fuel Pump Included | Yes |
| Tank Straps Included | No |
| Overall Length | 39.25" |
| Overall Width | 24.5" |
| Overall Height | 7.75" |
| Hardware Included | Yes |
| Fuel Capacity Range | 20.00-24.99 Gallons |
| GENERAL | |
| Sold in Quantity | Kit |
| GTIN Code | 691852328192 |
| Fuel Type | Gasoline |
| Inlet Fitting | 1/4" NPT |
| Baffled | Yes |
| Filler Neck Included | Yes |
Ratings & Reviews
4
4 Reviews
Customers appreciate that this product includes tank straps, negating the need to order separately, and consider it an all-in-one solution superior to options available in the market. Users found it perfect and better than expected, with notable lack of issues, emphasizing on the product's usability and practicality. There was dissatisfaction toward one aspect, the internal parts of the kit in a specific case, but the tank quality stayed undisputed. This product is largely recommended for its comprehensive features and confirmed quality.
Ratings & Reviews
4
4 Reviews
Customers appreciate that this product includes tank straps, negating the need to order separately, and consider it an all-in-one solution superior to options available in the market. Users found it perfect and better than expected, with notable lack of issues, emphasizing on the product's usability and practicality. There was dissatisfaction toward one aspect, the internal parts of the kit in a specific case, but the tank quality stayed undisputed. This product is largely recommended for its comprehensive features and confirmed quality.
4
4 reviews
5
3
4
0
3
0
2
0
1
1
Filter by Ratings
awesome product!
5.0
4 years ago
lsxfan
oklahoma
Verified
It doesnt say it comes with new tank straps but it does!!! so no need to order those separately
Would Recommend
I like it
5.0
5 years ago
Ted
Akron Ohio
Verified
Perfect
Would Recommend
Better than expected!
5.0
5 years ago
Darin
Newalla, Oklahoma
Verified
All in one, better then expect. Was for sure there would be issues....none, not one. The market has been needing these all in one tanks.
Would Recommend
Not up to par
1.0
11 years ago
Theircomingto Takemeaway
Arkansas
Verified
Tank kit for my 68 chevelle was awful. The tank itself was ok, but the internal parts were not. If I hadn't butchered them up, trying to make fit, I would have returned all. Service & durability questionable. Ordered ready to install tank from another source.
Would Not Recommend
Showing 4 of 4 reviews
Questions & Answers
3 Questions • 3 Answers
Questions & Answers
3 Questions • 3 Answers
What gas cap is needed with this tank? Shallow or deep cam?
by DBal
• 4 years ago
1 answer
View Answer
Will this pump meet the PSI requirements of an LS3 factory fuel injection?
by Rick
• 8 years ago
1 answer
View Answer
do I need to purchase a fuel line kit also
by jam no
• 9 years ago
1 answer
View Answer
3 of 3 questions shown
Fitment
Fitment
1970 Buick Skylark
1968-1969 Chevy Chevelle
1968-1969 Pontiac Beaumont
