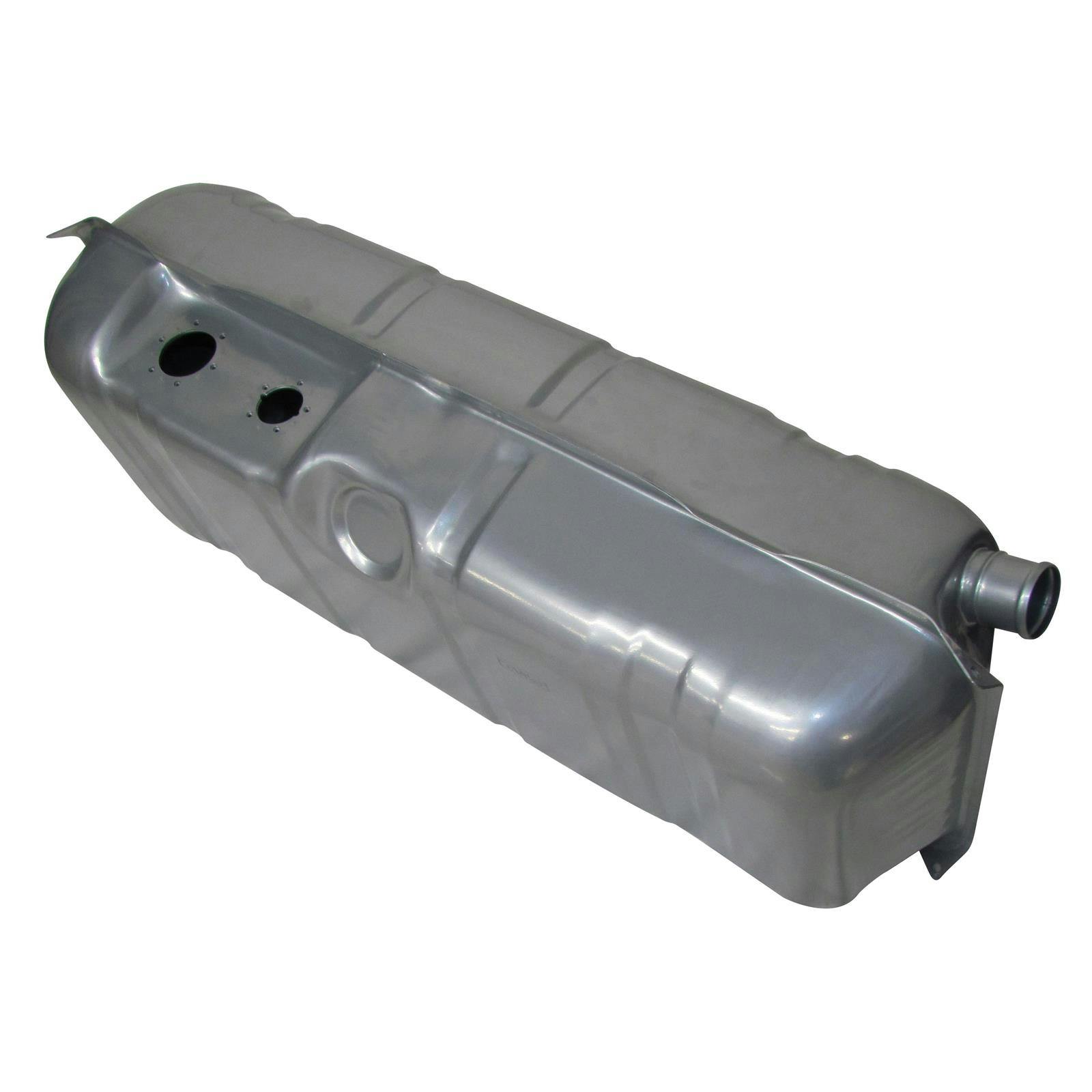

Tanks Inc. TM31-T EFI Fuel Tank Kit, 1961-64 Chevy Fullsize

#91076214

Tanks Inc. TM31-T EFI Fuel Tank Kit, 1961-64 Chevy Fullsize

Name: Tanks Inc. TM31-T EFI Fuel Tank Kit, 1961-64 Chevy Fullsize
Brand: Tanks
SKU: 91076214
Price: 595.99 USD
Availability: InStock
Rating: 4.3 (3 reviews)

3 Reviews

2 Questions

Features a coated galvanized steel construction
Has a 20 gallon capacity and measures 38" x 15-1/8" x 11-1/8"
Specifically designed for the 1961-1964 Chevy Bel Air, Biscayne, and Impala

$595.99

/each

Factory Shipped

$611.95

Save $15.96

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

61-64 Bel Air, 61-64 Biscayne, 61-64 Impala, Steel

Features a coated galvanized steel construction
Has a 20 gallon capacity and measures 38" x 15-1/8" x 11-1/8"
Specifically designed for the 1961-1964 Chevy Bel Air, Biscayne, and Impala
Comes complete with a high-flow (255 liters p/hr.) in-tank Walbro pump that supports up to 630 hp
Includes an EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation

See more details

Key Specs

MFG. Part #	TM31-T-KIT
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20 gallons
Material Type	Steel

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks TM31-T-KIT Details

These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1961-1964 Chevy Bel Air, Biscayne, Impala
20 gallon capacity
38" x 15-1/8" x 11-1/8"
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Note: Filler neck not included.

Charts

Walbro GSS340 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (91076214)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks TM31-T-KIT Specifications

KEY SPECS
MFG. Part #	TM31-T-KIT
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	20 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	No
Overall Length	38"
Overall Width	15.125"
Overall Height	11.125"
Hardware Included	Yes
Fuel Capacity Range	20.00-24.99 Gallons

GENERAL
Sold in Quantity	Kit
GTIN Code	691852327904
Fuel Type	Gasoline
Baffled	Yes
Filler Neck Included	No

Ratings & Reviews

4.3

3 Reviews

Overall Assessment

Customers appreciate the high quality and good fits of the product, while noting its practical use in replacements like in a '64 Impala. One small caveat mentioned was the preference for rubber instead of the included cork gaskets, which they replaced for a more satisfactory result. However, the overall consensus leans positively, considering it a worthwhile investment and a superior choice among other options on the market.

Write A Review

4.3

3 reviews

Filter by Ratings

Sort Reviews

Product looks good.

4.0

4 years ago

Joe

Matthews,NC

Verified

Haven't installed the tank yet but everything looks good!

Would Recommend

Almost all good

4.0

6 years ago

Mr. D

Yakima Washington

Verified

Nice kit, didn't care for the cork gaskets so I replaced with rubber gaskets that I had to purchase elsewhere.

Would Recommend

Money well spent

5.0

8 years ago

Pat

Lincoln, NE

Verified

Great quality piece. It fit my 64 Impala like the original. One of my best purchases for the LS swap in my car.

Would Recommend

Showing 3 of 3 reviews

Questions & Answers

2 Questions • 2 Answers

Sort Questions

for a 1964 impala do I need to change my gas cap to a non vented when I buy this tank

by david

• 8 years ago

1 answer

View Answer

Will this tank work for a 1964 oldsmobile dynamic 88

by ben

• 10 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1961-1964 Chevy Bel Air

1961-1964 Chevy Biscayne

1961-1964 Chevy Impala
