Product Summary

61-63 Bel Air, 61-63 Biscayne, 61-63 Impala, Steel

    Key Specs

    MFG. Part #TM31-T-KIT-SWM63
    BrandTanks
    Fuel Tank StyleEFI Conversion
    Fuel System TypeEFI
    Capacity20 gallons

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

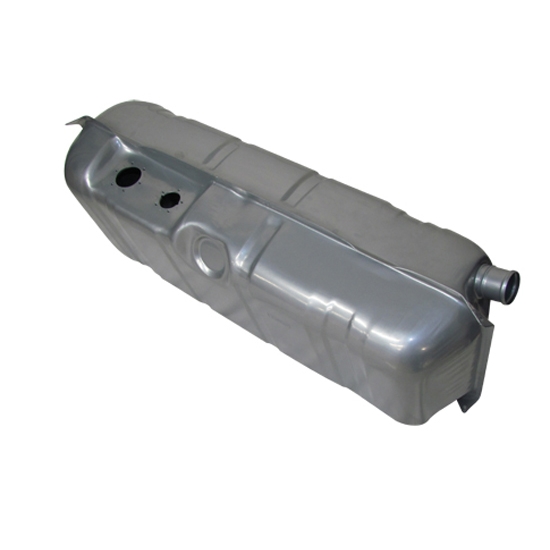

    These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

    • Fits 1961-1963 Chevy Bel Air, Biscayne, Impala
    • 20 gallon capacity
    • 38" x 15-1/8" x 11-1/8"
    • Coated galvanized steel construction
    • Silver powder coated finish
    • EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
    • Fuel pump/sender are recessed in tank for easy installation
    • No modification needed to your car
    • Looks like an OE tank when installed
    • Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
    • Includes genuine Walbro GSS340 electric fuel pump
      • 255 LPH @ 40 PSI
      • Made in the USA
      • Heavy 10 gauge no-warp mounting plate
      • Oven brazed 1/4" NPT supply/return line port fittings
      • Barbed rollover vent valve fitting
      • Up to 100 PSI operation
      • In-tank wiring harness

    Note: Neck not included.

    Charts

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Specifications

    KEY SPECS
    MFG. Part #TM31-T-KIT-SWM63
    BrandTanks
    Fuel Tank StyleEFI Conversion
    Fuel System TypeEFI
    Capacity20 gallons
    GENERAL
    Fuel Capacity Range20.00-24.99 Gallons
    Material TypeSteel
    FinishPowder Coated
    ColorSilver
    Sending Unit IncludedYes
    Fuel Pump IncludedYes
    Filler Neck IncludedYes
    Tank Straps IncludedNo
    Hardware IncludedYes
    Overall Length38.00"
    Overall Width15.125"
    Overall Height11.125"
    Sold in QuantityKit
