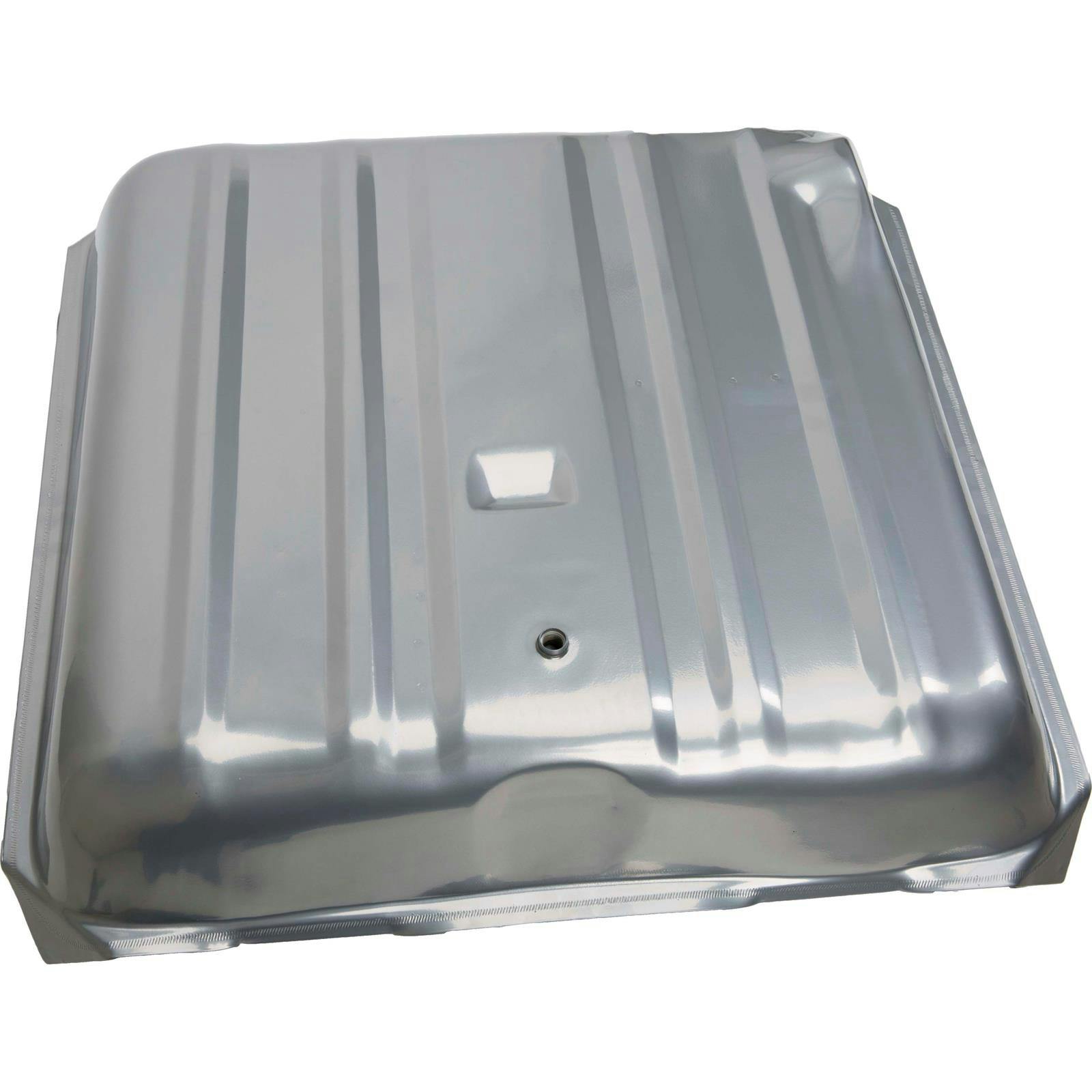

Tanks Inc. 570-CG-KIT-SWM6 EFI Fuel Tank Kit 1957 Chevy w/GPA-6

-8%

#910762691

Tanks Inc. 570-CG-KIT-SWM6 EFI Fuel Tank Kit 1957 Chevy w/GPA-6

Includes genuine GPA-6 Walbro electric fuel pump 255 LPH @ 40 PSI
Fits 1957 Chevy Car
EFI-style internal baffling with 4.8 liter internal fuel tray to prevent fuel pump starvation

$725.99

/each

In Stock

$795.95

Save $69.96

Order soon, only 3 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Bel Air, One-Fifty Series, Two-Ten Series, Del Ray

Includes genuine GPA-6 Walbro electric fuel pump 255 LPH @ 40 PSI
Fits 1957 Chevy Car
EFI-style internal baffling with 4.8 liter internal fuel tray to prevent fuel pump starvation
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
No modification needed to your car

See more details

Key Specs

MFG. Part #	570-CG-KIT-SWM6
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	15.5 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks 570-CG-KIT-SWM6 Details

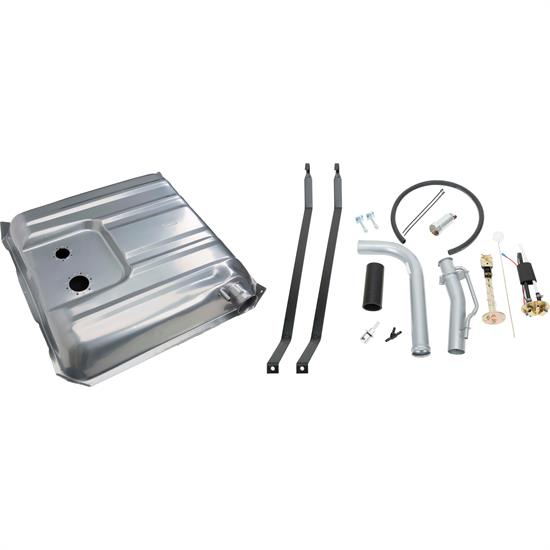

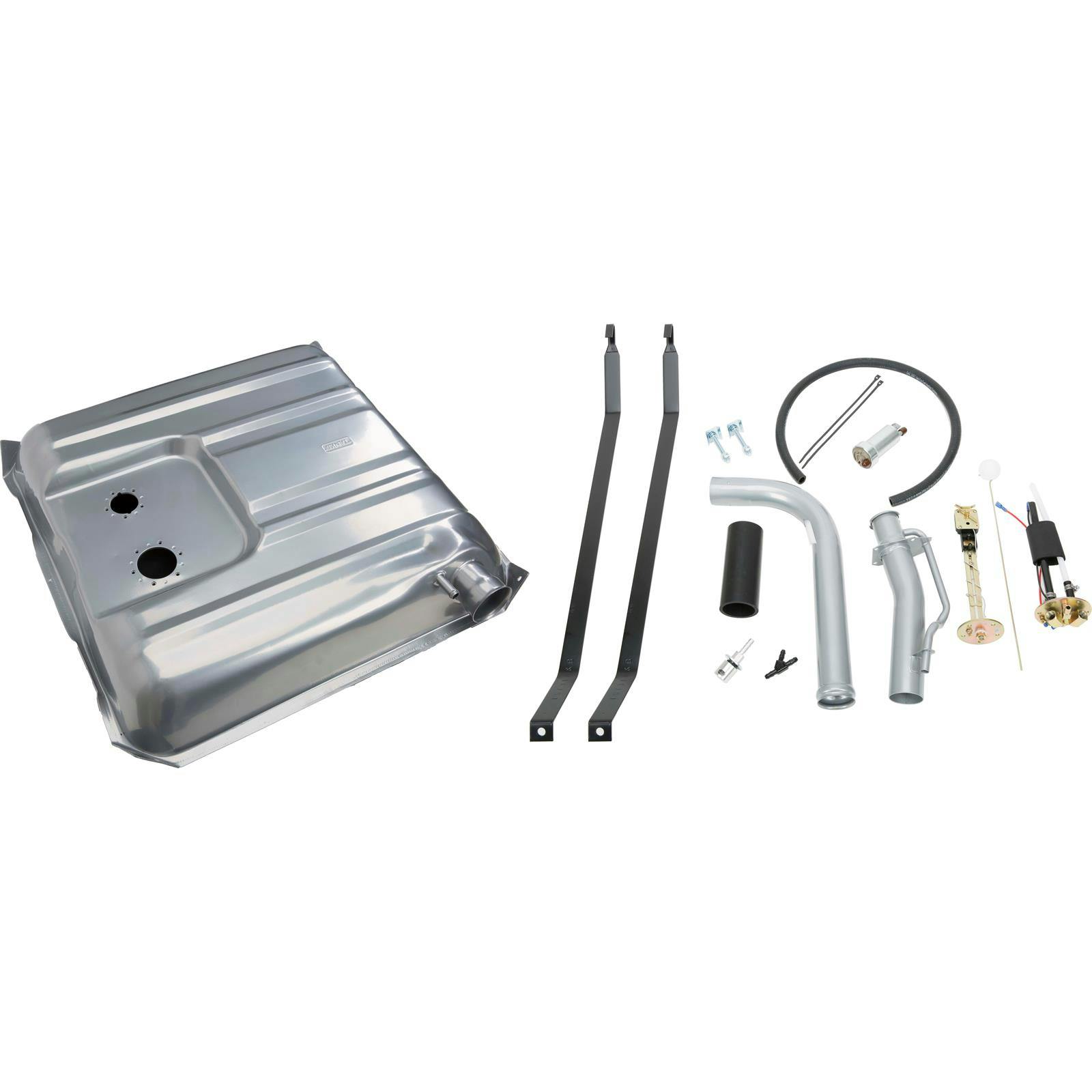

These all-inclusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1957 Chevy Car
15.5 gallon capacity
24-1/2" x 25" x 8"
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.8 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GPA-6 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Charts

Walbro GPA-6 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (910762691)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks 570-CG-KIT-SWM6 Specifications

KEY SPECS
MFG. Part #	570-CG-KIT-SWM6
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	15.5 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	No
Overall Length	24.5"
Overall Width	25"
Overall Height	8"
Hardware Included	Yes
Free Flow Rate	67 GPH / 255 LPH
Fuel Capacity Range	15.00-19.99 Gallons

GENERAL
Sold in Quantity	Each
Fuel Type	Gasoline
Ohm Range	0-30 OHM
Baffled	Yes
Filler Neck Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1957 Chevy Bel Air

1957 Chevy Del Ray

1957 Chevy One-Fifty Series

1957 Chevy Two-Ten Series
