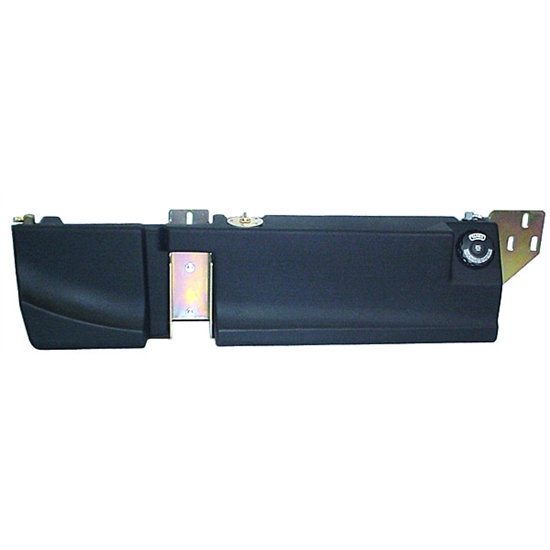

Tanks Inc 28EZ 1928-29 Ford Model A Apron Fill Saddle Fuel Tanks
28-29 Ford Model A, Custom Replacement Fuel Tank Style, Carbureted Fuel System Type, Black
Upgrade the fuel system on your Model A with these specially made fuel tank kits for 1928-29 Fords. Easy bolt-on installation and quality poly construction make these fuel tanks the perfect addition to your street rod. The tanks simply bolt on along with your running boards. Then cut a 1-1/2" hole in your splash apron, install the included grommet and 1-3/4" diameter billet cap/plugs, and finally plumb and wire the tanks.
To fill your Model A saddle fuel tanks, remove billet cap/plug, insert fuel nozzle through grommet and into the push-thru cap. It will open to let fuel pass through. When finished, remove the fuel nozzle and the push-thru cap shuts. Now just insert the billet plug and you're finished.
- Includes 2 poly saddle fuel tanks
- Bolt on with running board brackets
- 6.5 gallon capacity per side
- Includes switchover valve to switch between left/right tank
- Requires two 5-bolt senders - not included
- Push-thru cap does not have to be removed for filling
- Works on Model A cars and trucks
- Each tank measures 38" x 7-3/4" x 9-1/2"
- 2.625" end of tank to center of fill cap
- 2" center of cap to inside edge
- 7.50" center of cap to outside edge
- The saddle tank design does not work well with fuel injection
Note: These are designed to work on original style frames and may not work with Speedways new model A frames.
Tanks will bolt to the outside of the frame and therefore, the original mechanical brakes can not be used in conjunction with these tanks.
E-Z Fill Instructions (PDF)
