-9%

Tanks 570-CG-KIT-SWM 1957 Chevy Fuel Tank W/ Filler Neck, For EFI

-9%

#91076269

Tanks 570-CG-KIT-SWM 1957 Chevy Fuel Tank W/ Filler Neck, For EFI

Name: Tanks 570-CG-KIT-SWM 1957 Chevy Fuel Tank W/ Filler Neck, For EFI
Brand: Tanks
SKU: 91076269
Price: 673.99 USD
Availability: InStock
Rating: 4.7 (3 reviews)

3 Reviews

2 Questions

Has a 15.5 gallon capacity and measures 24-1/2" x 25" x 8"
Filler neck included
No modification needed to your car and it looks like an OE tank when installed in your 1957 Chevy

$673.99

/each

In Stock

$740.95

Save $66.96

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Bel Air, One-Fifty Series, Two-Ten Series, Del Ray

Has a 15.5 gallon capacity and measures 24-1/2" x 25" x 8"
Filler neck included
No modification needed to your car and it looks like an OE tank when installed in your 1957 Chevy
Features a coated galvanized steel construction with a silver powder coated finish
Includes a EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation

See more details

Key Specs

MFG. Part #	570-CG-KIT-SWM
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	15.5 gallons
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tanks 570-CG-KIT-SWM Details

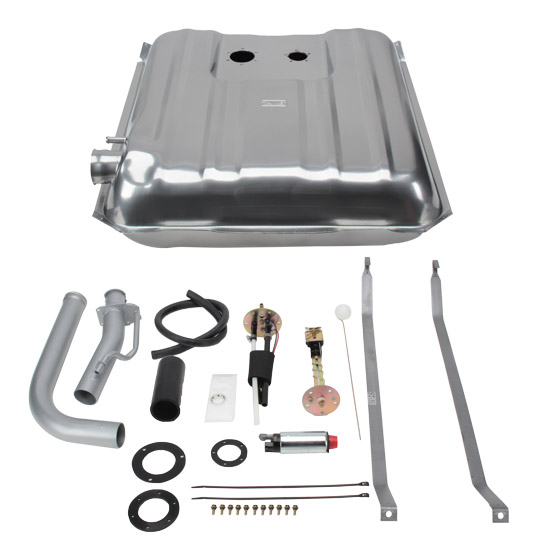

These all-inlcusive EFI-ready steel fuel tanks from Tanks Inc. take the headache out of converting your classic to modern LS power. Each kit comes complete with a high-flow (255 liters p/hr) in-tank Walbro pump that supports up to 630 hp. Also included are a sending unit (Ohms will match the make/model/year application of tank), mounting straps, and hose (if applicable).

Fits 1957 Chevy passenger cars
15.5 gallon capacity
24-1/2" x 25" x 8"
Coated galvanized steel construction
Silver powder coated finish
EFI-style internal baffling with 4.3 liter internal fuel tray to prevent fuel pump starvation
Fuel pump/sender are recessed in tank for easy installation
No modification needed to your car
Looks like an OE tank when installed
1/4" NPT fuel drain plug
Includes aftermarket 5-bolt sender tuned for original factory fuel gauge
Includes genuine Walbro GSS340 electric fuel pump
- 255 LPH @ 40 PSI
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- Oven brazed 1/4" NPT supply/return line port fittings
- Barbed rollover vent valve fitting
- Up to 100 PSI operation
- In-tank wiring harness

Charts

Walbro GSS340 Flow Chart (PDF)

Guides & Documents

Fuel Tanks Technical Information (91076269)

Warranty Information

Speedway Motors cannot facilitate the return of defective Tanks Inc.’s products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Tanks Inc. at (319) 465-3522 or (877) 596-3842.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Tanks 570-CG-KIT-SWM Specifications

KEY SPECS
MFG. Part #	570-CG-KIT-SWM
Brand	Tanks
Fuel Tank Style	EFI Conversion
Fuel System Type	EFI
Capacity	15.5 gallons
Material Type	Steel
Finish	Powder Coated
Color	Silver
Sending Unit Included	Yes
Fuel Pump Included	Yes
Tank Straps Included	No
Overall Length	24.5"
Overall Width	25"
Overall Height	8"
Hardware Included	Yes
Fuel Capacity Range	15.00-19.99 Gallons

GENERAL
Sold in Quantity	Kit
Fuel Type	Gasoline
Baffled	Yes
Filler Neck Included	No

Ratings & Reviews

4.7

3 Reviews

Overall Assessment

Customers praise the product for its perfect fit and comprehensive kit, essential in enabling efficient conversion processes for vintage vehicles. It stands out for its factory-fit quality, thus increasing its practicality. Some users have taken note of minor faults, but overall, it doesn't deter from the product's performance. The durable material ensures safety when holding fuel. The product is highly recommended for car restorations due to ease of installation and reliable, as stated features. This reflects positively on the product's superiority over competitors.

Write A Review

4.7

3 reviews

Filter by Ratings

Sort Reviews

Exactly the right fit

5.0

4 years ago

Dean

Arvada. Colorado

Verified

Redoing a 1957 Chevy with "Fuel Injection" This kit contained everything I needed for the conversion. Looks Great!!

Would Recommend

Factory fit

4.0

9 years ago

Matt

Ohio

Verified

This fuel setup installed factory fit just as stated..... Only faults I noticed from it being a complete kit was the 2 npt barb fittings at the pump , followed by the filler 2 neck hose clamps Haven't filled up yet but see no problem with holding fuel Great job Tanks inc. and Speedway for supplying another great product keep it up

Would Recommend

Product is as stated.

5.0

9 years ago

New Mexico

Verified

I'm installing it now in a full restoration so I have just hung the tank and planning to put a trunk door in the car .

Would Recommend

Showing 3 of 3 reviews

Questions & Answers

2 Questions • 2 Answers

Sort Questions

Would this work in a returnless fuel system by using a fuel pump driver module, and blocking the return side?

by Mike

• 7 years ago

1 answer

View Answer

Will a fuel pump for a ls3 engine work in this tank

by Bob

• 8 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1957 Chevy Bel Air

1957 Chevy Del Ray

1957 Chevy One-Fifty Series

1957 Chevy Two-Ten Series
