Product Summary

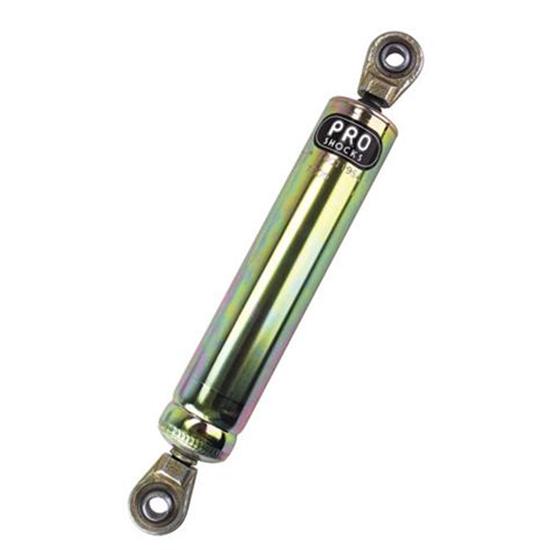

Modified, Stock Car, Twin Tube Shock Type, Zinc Plated

  • These steel shocks feature a gas cell and are IMCA approved
  • The TA series is engineered to work with the coil over kits
  • Compressed length measures 14-1/2" and the extended length measures 23-1/2"
  • Both the upper and lower shock mounts have a 1/2" spherical rod end
  • Features a large, smooth steel body with a zinc plated finish for added corrosion protection

Key Specs

MFG. Part #TA940
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Made to Order

This custom item will ship when completed

Quick and Easy Returns

Return Policy

Details

Pro Shocks® new TA series steel shocks feature a gas cell and are IMCA approved. The TA series will work with the coil over kits. You must order end separately.

Comp. Length: 14-1/2"
Ext. Length: 23-1/2"


Charts

Specifications

KEY SPECS
MFG. Part #TA940
BrandPro Shocks
Shock TypeTwin Tube
Shock Body MaterialSteel
Shock Body TypeSmooth
Shock Body SizeLarge Body
GENERAL
Shock Stroke Range9.00" to 9.99"

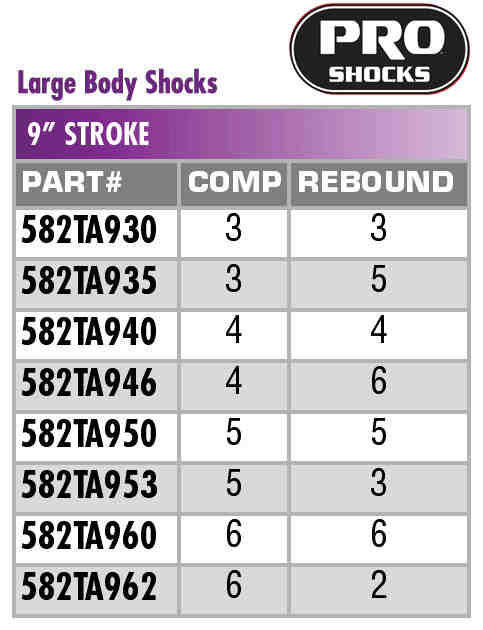

Compression Valving4
Rebound Valving4
Shock Stroke9.00
Upper Shock Mount1/2" Spherical Rod End
Lower Shock Mount1/2" Spherical Rod End
Extended Length Range23.00" to 23.99"
Extended Length23.5"
Compressed Length Range14.00" to 14.99"
Compressed Length14.5"
FinishZinc Plated
Coil-Over CompatibleYes
Body Diameter2.00"
Valve Positions4 compression - 4 rebound
Sold in QuantityEach
NotesShock ends are sold separately. Need two part# 582-200S
Shock Eyelet Width.625"
Bolt Hole Circle.500"
Hardware IncludedNo
