Universal Fit, Single Joint Universal Joint Style
Comes as a Kit
View Kit Components
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4"-36 Spline |
| Shaft Diameter | 3.75" |
| Spline Count | 36 |
Need help?
855.313.9176Quick and Easy Returns
Return PolicySteering U-Joint
As featured on Classic Truck’s Week to Wicked. Watch the transformation here!
Dont jeopardize your safety with inferior quality Mustang II power rack universal joints. Speedway offers only the finest steering U-joints made by Sweet Manufacturing.
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints

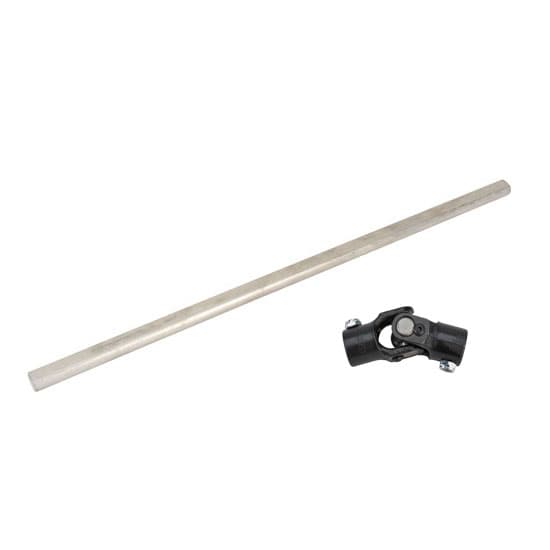

Steering Shaft
Speedway now offers a steering shaft which is 3/4" DD machined the entire length of the steering shaft. This makes it easier to set up your steering.The carbon steel steering shaft come in 22".
Application
When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.
STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 9100403 |
| Brand | Speedway Motors |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4"-36 Spline |
| Shaft Diameter | 3.75" |
| Spline Count | 36 |
| GENERAL | |
| Spline End | 3/4"-36 |
| Overall Length | 3.75" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 30 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Oxide |
| Color | Black |
| Sold in Quantity | Kit |
