Product Summary

Universal Fit, Single Joint Universal Joint Style

    Key Specs

    MFG. Part #401-52323
    Universal Joint StyleSingle Joint
    End #11" DD Aftermarket
    End #21" DD Aftermarket
    Spline CountNo splines

    Need To Know

    Free Shipping on Orders Over $149

    Quick and Easy Returns

    Details

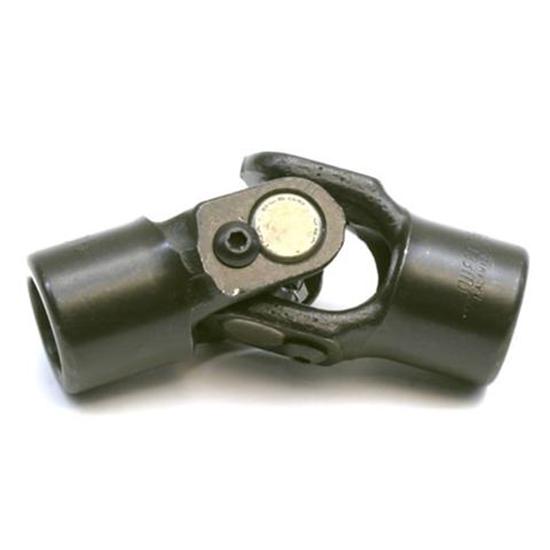

    Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints are of the highest quality for racing and street use.

    • Full compliment bearings
    • Forged Vanadium steel yokes and u-joint
    • Highest quality for racing or street
    • Features needle bearing u-joints
    Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

    Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

    Item Details

    GM columns measure slightly less than 1" while Ididit and Flaming River columns measure a true 1".

    Application

    When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

    STEP 1
    Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

    STEP 2

    Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

    STEP 3
    With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

    Specifications

    KEY SPECS
    MFG. Part #401-52323
    BrandSweet Manufacturing
    Universal Joint StyleSingle Joint
    End #11" DD Aftermarket
    End #21" DD Aftermarket
    Spline CountNo splines
    GENERAL
    Spline EndNo Splines
    Overall Length3.75"
    Outside Diameter1.355"
    Max Operating Angle30 °
    Set Screw IncludedNo
    Material TypeSteel
    FinishBlack Oxide
    ColorBlack
    Sold in QuantityEach
