#91032298

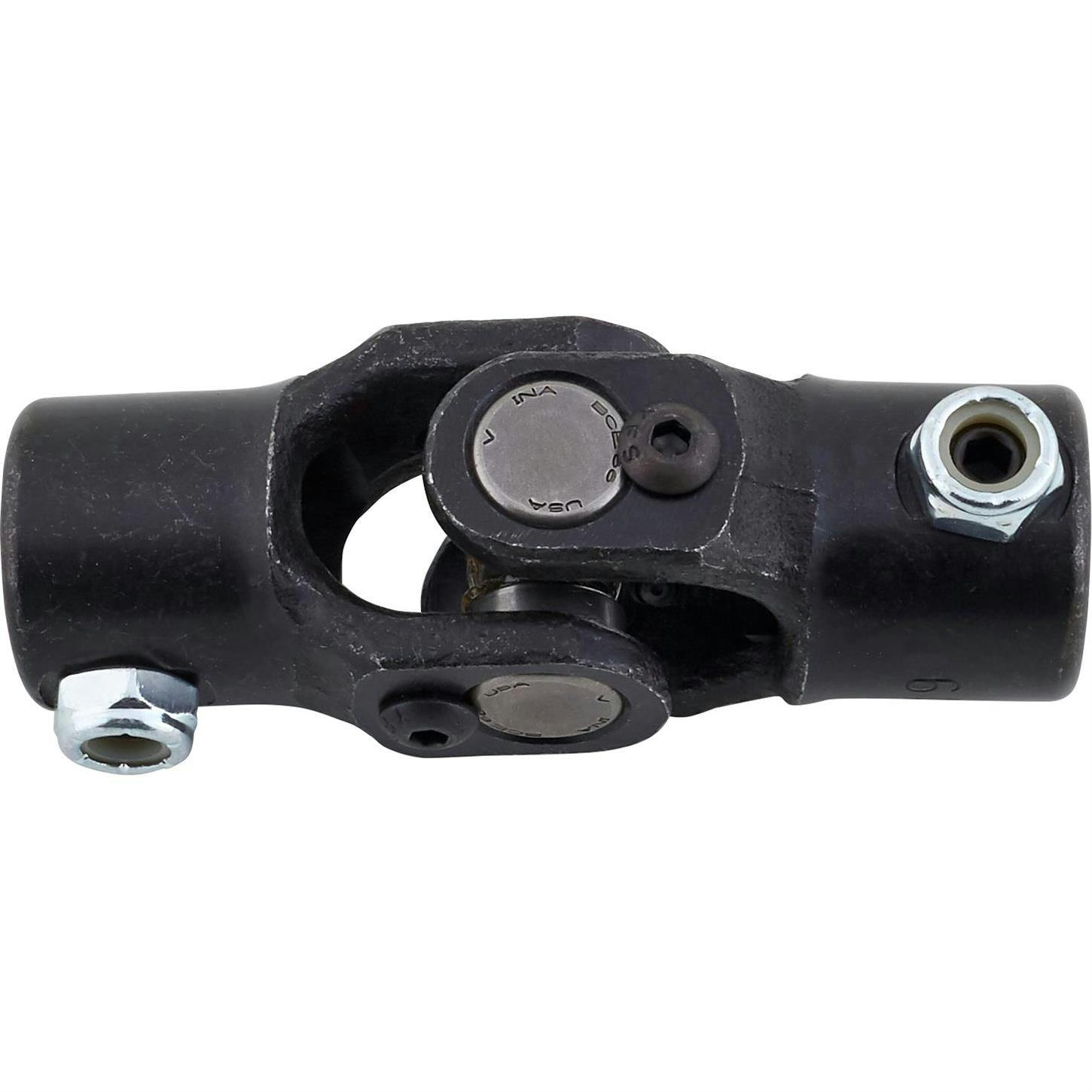

Sweet Mfg Steering U-Joint, 3/4 Inch DD to 3/4 Inch DD, Universal
- Both ends are 3/4" DD style
- Features needle bearing u-joints
- Made of the highest quality for racing
$89.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Single Joint Universal Joint Style
- Both ends are 3/4" DD style
- Features needle bearing u-joints
- Made of the highest quality for racing
- It has forged vanadium steel yokes and u-joint
- This universal joint is 3.875" long and 1.375" in diameter
Key Specs
| MFG. Part # | 401-51919 |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4" DD |
| Spline Count | No splines |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySweet Manufacturing 401-51919 Details
Sweet Manufacturing 401-51919 Details
- Full compliment bearings
- Forged Vanadium steel yokes and u-joint
- Highest quality for racing
- Features needle bearing u-joints
- U-Joint=3.875" L x 1.375" D
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Item Details
Length: 3.75" Width: 1.38"Lock screws increase width to 1.564"
Application
STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the u-joint for your specific application.
Guides & Documents
Sweet Manufacturing 401-51919 Specifications
Sweet Manufacturing 401-51919 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-51919 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4" DD |
| Spline Count | No splines |
| GENERAL | |
| Spline End | No Splines |
| Overall Length | 3.75" |
| Outside Diameter | 1.35" |
| Max Operating Angle | 30 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Oxide |
| Color | Black |
| Sold in Quantity | Each |
