Product Summary

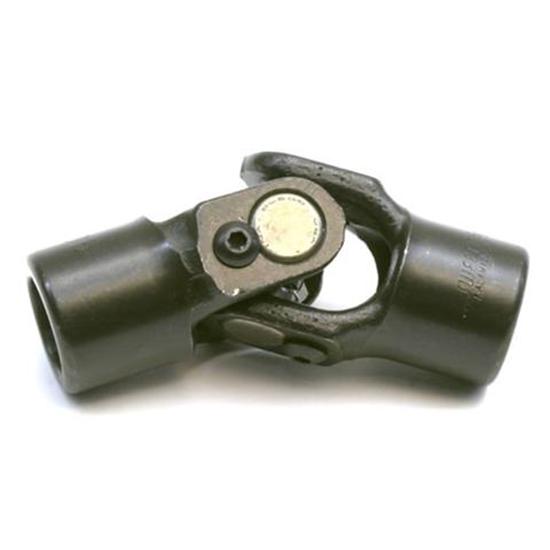

Universal Fit, Single Joint Universal Joint Style

  • One end has 3/4" DD and the other has a 3/4"-48 Spline
  • Features needle bearing u-joints and compliment bearings
  • Made from durable stainless steel with a black oxide finish
  • Overall length measures 3.75" and the outside diameter is 1.355"
  • These steering universal joints work with Wilwood, Sweet Jaguar, and MGB with their 3/4"-48 spline

Key Specs

MFG. Part #401-51019
Universal Joint StyleSingle Joint
End #13/4" DD
End #23/4"-48 Spline
Shaft Diameter.75"

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

Dont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints work with Wilwood, Sweet Jaguar, and MGB with their 3/4"-48 spline.

  • Works with: Wilwood, Sweet Jaguar, MGB
  • Full compliment bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  • 3/4"-48 Spline
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Item Details

Wilwood, Sweet Jaguar, MGB
3/4"-48 Spline

Application

When purchasing U-Joints, 3 easy steps will help ensure that they will be correct for your application.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Specifications

KEY SPECS
MFG. Part #401-51019
BrandSweet Manufacturing
Universal Joint StyleSingle Joint
End #13/4" DD
End #23/4"-48 Spline
Shaft Diameter.75"
GENERAL
Spline Count48
Spline End3/4"-48
Overall Length3.75"
Outside Diameter1.355"
Max Operating Angle30 °
Set Screw IncludedYes
Material TypeSteel
FinishBlack Oxide
ColorBlack
Sold in QuantityEach
