#9106111

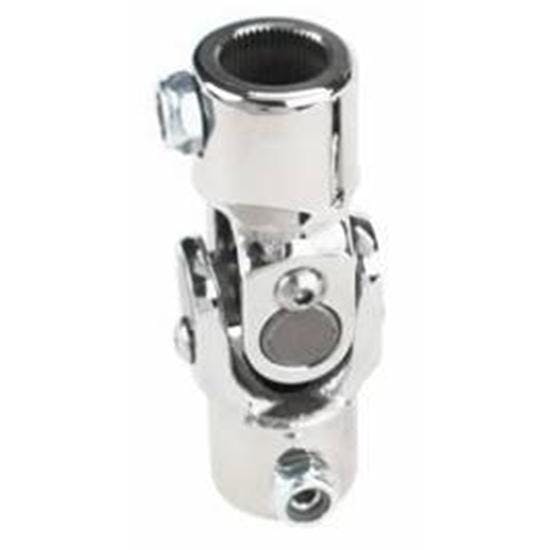

Sweet Mfg Steering U-Joint, 13/16-36 Spline, 3/4 In DD, Big GM Pre '78
Black OxideStainless
$100.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#9106111
$100.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Universal Joint Style | Single Joint |

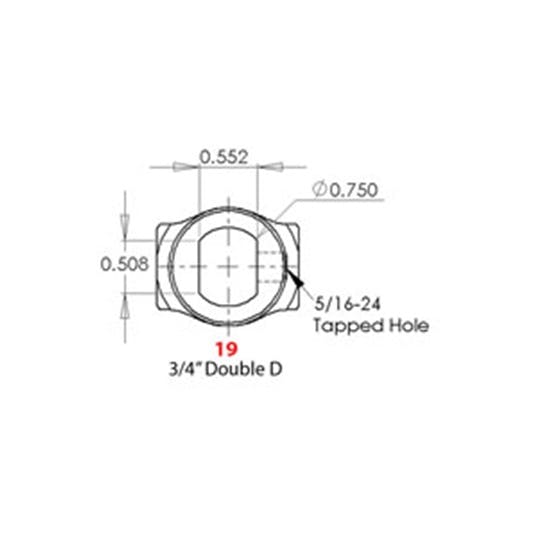

| End #1 | 3/4" DD |

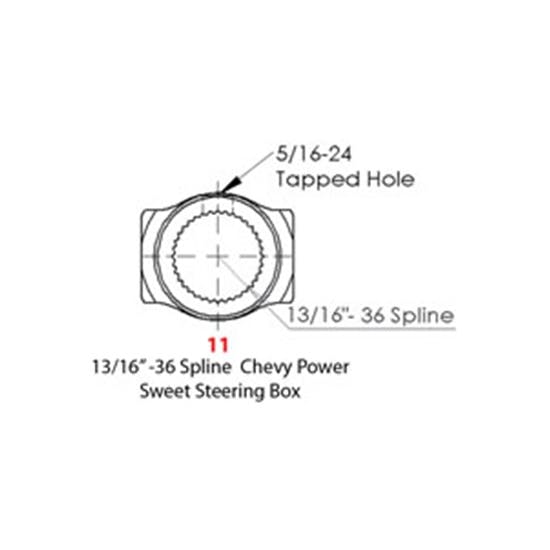

| End #2 | 13/16"-36 Spline |
| Spline Count | 36 |
| Spline OD | .8125" |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. They feature a double D end to make use of the double D shaft.
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Application
STEP 1

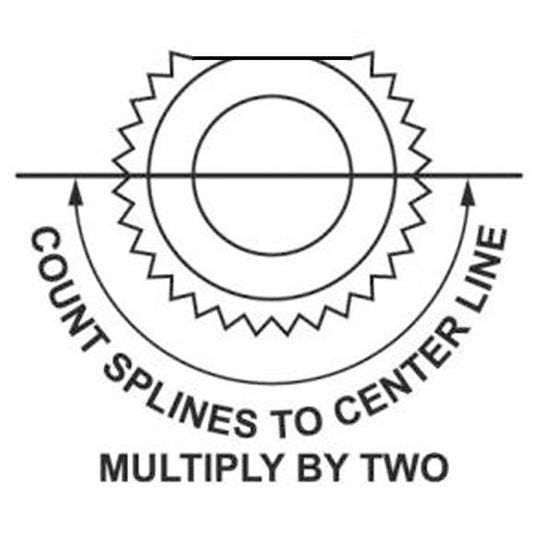

Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-61119 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" DD |
| End #2 | 13/16"-36 Spline |
| Spline Count | 36 |
| Spline OD | .8125" |
| GENERAL | |
| Spline End | 13/16"-36 |
| Overall Length | 3.75" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 30 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Chrome |
| Sold in Quantity | Each |
