Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit

Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit

74-78 Ford Mustang II, 30 ° Max Operating Angle, Steel

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
X
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Sweet Mfg Mustang II Manual Rack to 3/4 DD U-Joint Kit
Zoomed In Image
Part # 91603042
$149.99
each
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Max Operating Angle:
30 °
Material Type:
Steel
Sold in Quantity:
Kit

Info

Universal steering u-joints for your favorite project! We packed together specialty u-joints for ease of installation on your Mustang II style rack and pinion projects. One joint is specific to Mustang II racks and the other allows the freedom to work in many universal steering column applications.

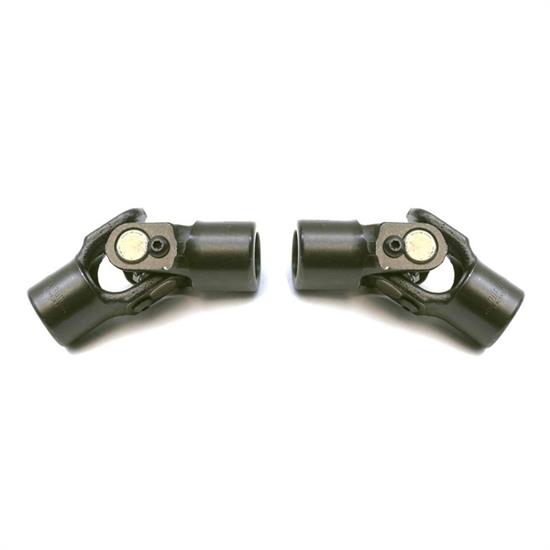

Kit Contains:

  • (1) Sweet Mfg Mustang II Manual Steering U-Joint 9/16 26 Spline to 3/4 DD
  • (1) Sweet Mfg Universal Steering U-Joint, 3/4 DD to 3/4 DD

Sweet Mfg Mustang II Manual Steering U-Joint 9/16 26 Spline to 3/4 DD

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints feature forged Vanadium steel yokes and full complement bearings.

  • Full complement bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing or street
  • Features needle bearing u-joints
  • 3-3/4" in length
  • 1-3/16" diameter
  • End #1: 3/4" DD
  • End #2: 9/16"-26 Spline
  • Max Operating Angle: 30 °
  • Set Screw Included
  • Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

Sweet Mfg Universal Steering U-Joint, 3/4 DD to 3/4 DD

Don't jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. This universal joint is 3.875 inches long and 1.375 inches in diameter.

  • Full complement bearings
  • Forged Vanadium steel yokes and u-joint
  • Highest quality for racing
  • Features needle bearing u-joints
  • U-Joint=3.875"" L x 1.375"" D
  • Maximum operating angle: 30°
  • Universal Joint Style: Single Joint
  • End #1: 3/4" DD
  • End #2: 3/4" DD
  • Spline Count: No splines
  • Spline End: No Splines
  • Overall Length: 3.75"
  • Outside Diameter: 1.355"

Application

Tech Tip #1: When using more than two universal joints in a system, a support heim must be used.

Tech Tip #2: Increasing a U-Joint's angle of operation beyond 30° dramatically increases the stress on the joint, weakening the whole steering mechanism. If a greater angle is needed, add another u-joint.

Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1".  DO NOT interchange these u-joints.

STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.

STEP 2

Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.

STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Sweet Mfg Steering U-Joint 9/16 26 Spline to 3/4 DD, Mustang II Manual
    Qty x 1
  • Sweet Mfg Steering U-Joint, 3/4 Inch DD to 3/4 Inch DD, Universal
    Qty x 1
