#9103248
Sweet Mfg. Double U-Joint, 3/4-30 Spline to 3/4 DD, Small GM '78-UP
- Designed for the 1978-up small GM vehicles
- U-joints allow up to 70 degrees of angle or 1" of offset
- Made from forged vanadium steel and real needle bearing joints
$156.99
/each
In Stock
Order soon, only 2 left in stock!
Garage Sale alternatives: from $87.2
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Double Joint Universal Joint Style
- Designed for the 1978-up small GM vehicles
- U-joints allow up to 70 degrees of angle or 1" of offset
- Made from forged vanadium steel and real needle bearing joints
- Overall length measures a total of 5-5/8" and has an O.D. of 1.355"

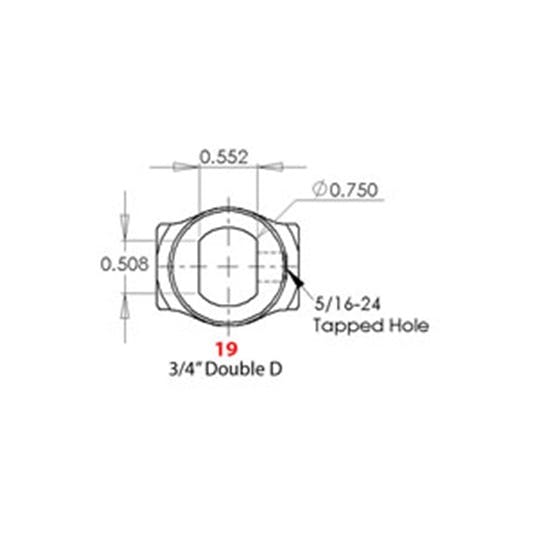

- One end has a 3/4" DD and the other has a3/4"-30 spline
Key Specs
| Universal Joint Style | Double Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4"-30 Spline |
| Spline Count | 30 |
| Spline OD | .750" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySweet Manufacturing 401-81519 Details
Sweet Manufacturing 401-81519 Details
Sometimes you need just a little bit more clearance than a standard steering u-joint can give you. Our double u-joints allow up to 70 degrees of angle or 1" of offset for just those occasions. These steering universal joints are made of forged vanadium steel and real needle bearing joints. 5-5/8" overall length.
Learn more about u-joints and steering systems by reading our tech article. U-Joint Selection and Design.Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Item Details
'Small GM P/S ''78 and Later3/4"-30 Spline'
Guides & Documents
Sweet Manufacturing 401-81519 Specifications
Sweet Manufacturing 401-81519 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-81519 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Double Joint |
| End #1 | 3/4" DD |
| End #2 | 3/4"-30 Spline |
| Spline Count | 30 |
| Spline OD | .750" |
| GENERAL | |
| Spline End | 3/4"-30 |
| Overall Length | 5.6" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 70 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Oxide |
| Color | Black |
| Sold in Quantity | Each |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
I have bought this before, and will again
5.0
9 years ago
None
Green Bay, Wisconsin
Verified
I used this steering u-joint on a truck I'm building. They do the job, but they are not near as smooth operating as another brand I've used. They are although not as bulky as others.
Would Recommend
Showing 1 of 1 reviews
Questions & Answers
1 Question • 1 Answer
Questions & Answers
1 Question • 1 Answer
Hi, im putting a 49 Dodge truck cab on a 2001 GM 3500 express using the complete 01 steering column. I need to lengthen, and change the angle of the steering shaft. If I put a double u joint on the steering gear box this will take care of both problems. Im looking at #9103248, is this spline the same, I mic ed it at .720", .730". I assume this one 9103248 is .750". Will this work, if not what do you have for this. Thanks, Bob
by Bob
• 7 years ago
1 answer
View Answer
1 of 1 questions shown
