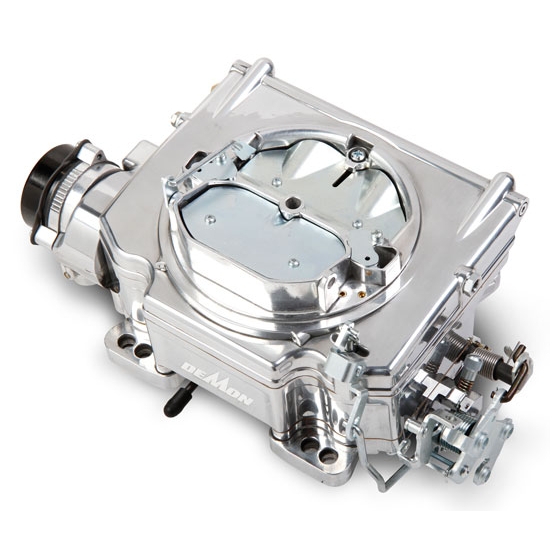

Street Demon 1902 625 CFM 4 Barrel Carburetor, Polished Aluminum

#91012018

Street Demon 1902 625 CFM 4 Barrel Carburetor, Polished Aluminum

Name: Street Demon 1902 625 CFM 4 Barrel Carburetor, Polished Aluminum
Brand: Demon Carburetion
SKU: 91012018
Price: 532.95 USD
Availability: Discontinued

Write a Review

2 Questions

Discontinued

This item is currently not available

Shop all Carburetors

Product Summary

Universal Fit, 4-Barrel Carburetor Barrels, 600 CFM CFM

See more details

Key Specs

Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Electric
CFM Range	600-699 CFM
CFM	600 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Demon Carburetion 1902 Details

WICKED POWER! The ALL NEW Street Demon™ redefines the street four barrel carburetor with clean looks and ease of use! The Street Demon offers enthusiasts a straightforward carburetor designed to deliver a stable idle, amazingly crisp throttle response and smooth performance. Its optimized calibration and dual mounting pattern make it Run–Ready™ for a large variety of engines and vehicles!

625 CFM air flow - ideal for use on most stock to mildly modified V8s
Dual mounting bolt pattern - fits any street 4bbl intake (square flange or spread bore)
Electric Choke Management means easy cold starts
Single fuel inlet for simple installation
Aerospace Composite fuel bowl offers significant heat insulating benefits over aluminum fuel bowl - keeps fuel up to 20º cooler for optimum performance with modern fuels
Integrated fuel bowl/main body design with gasket above fuel level and no plugged passages to eliminate all potential leak paths
Small 1-3/8” primary throttle bores combined with proven Triple-Stack™ boosters deliver amazingly crisp throttle response and drivability, superior fuel atomization and improved fuel economy
Goggle Valve Secondary (GVS™) throttle plate delivers over twice the air flow of the primary bores for power you can hear and feel
GVS™ makes total air flow 625 CFM while maintaining the crisp throttle response delivered by small primary bores

Features

Secondary air valve control - torsion spring valve control/adjustment permits seamless primary to secondary throttle response regardless of the throttle opening rate (unique contoured profile developed for better cylinder to cylinder fuel distribution)
Smooth styling - patented timeless design fits modern as well as traditional themed vehicles (Patent No.: US D648,746 S)
Developed from the ground up with great looks and ease of use in mind
Easy to clean and maintain
One-piece air horn assembly
2 Stage metering rods control easily accessible without carburetor disassembly or removal
4 optional vacuum step-up springs available to dial in hi-end performance
Optional sets of metering rods available to refine calibration
Multiple primary and secondary main jet orifice sizes available
Patent pending mechanical design
Integrated 700R4/200R4 transmission kickdown cable mounting location for proper shifts
Ford A/T kickdown (does not work with AOD transmissions)
Available TPS kit allows use with 4L60 and 4L80 transmissions

Charts

Street Demon 4 Barrel Carb Installation Instructions (PDF)

Guides & Documents

Carburetors Installation Instructions (91012018)

Determining the Best Performance Carburetor For Your Application

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Demon Carburetion 1902 Specifications

KEY SPECS
MFG. Part #	1902
Brand	Demon Carburetion
Carburetor Barrels	4-Barrel
Fuel Type	Gasoline
Choke Type	Electric
CFM Range	600-699 CFM
CFM	600 CFM
Carburetor Flange Type	4-Barrel Square Bore
Finish	Polished
Material Type	Aluminum
Secondary Type	Air Valve
Fuel Inlet Type	Single
Gasket(s) Included	Yes
New or Remanufactured	New
Supercharged Application	No

GENERAL
Bolt Hole Pattern	5.160" x 5.625"
GTIN Code	792898400078
Sold in Quantity	Each
