#665385C
Stewart Warner 385C-F R Swing 6-12 Fuel Level Sending Unit, 240/33 Ohm
- Sending unit has an overall diameter measuring 2.6"
- Features a 5 on 2.20" bolt hole pattern
- Ohm range is 240 empty and 33 full
$44.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 2.6" Overall Diameter, Height Adjustable
- Sending unit has an overall diameter measuring 2.6"
- Features a 5 on 2.20" bolt hole pattern
- Ohm range is 240 empty and 33 full
- Fully height adjustable to fit most tanks
- Requires a 1-7/16" hole in the tank for minimum/maximum of 1-5/8"
Key Specs
| MFG. Part # | 385C-F |
| Brand | Stewart Warner |
| Overall Length | 12" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Height Adjustable | Yes |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyStewart Warner 385C-F Details
Stewart Warner 385C-F Details
This Stewart Warner brand fuel sender is compatible with all Stewart Warner and Classic Instruments fuel gauges.

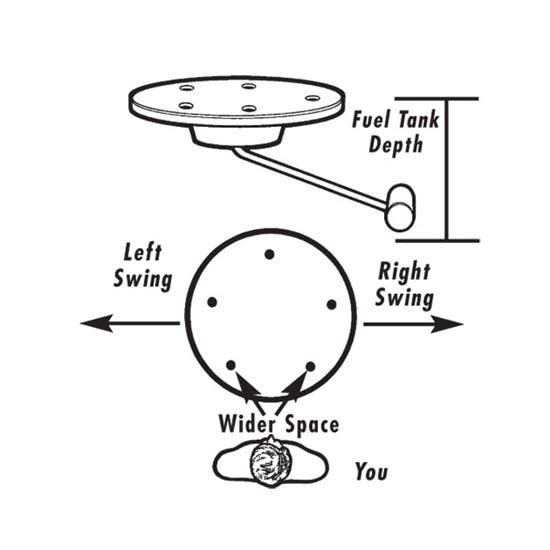

How deep is your tank?
Measure the depth of your tank where the fuel sender arm will be located. Choose the sender with an operating range which includes that dimension.

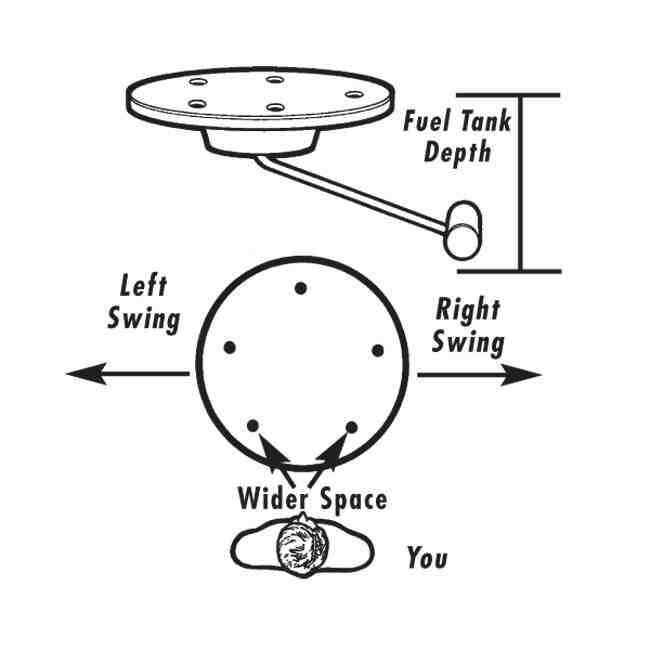

Right or Left-swing arm?
Most fuel gauge senders attach with a 5-screw pattern. Two of these screws are farther apart than the other three. Position yourself such that the 2 wider-spaced holes are closest to your chest; a right side sender will have the arm (or "float") extending to your right, and a left side sender will have the arm extending to your left. This only matters when replacing an existing sender. A first-time installation can use either one, just drill the mounting holes accordingly.
OHM
The OEMs used several different resistance ranges for fuel level indication over the years. However, some of the aftermarket gauge manufacturers follow the common Stewart Warner values (240 ohm empty, 33 ohm full). The gauges and senders that we carry (385 & 391’s) use these standard Stewart Warner values.
(Link)
Item Details
Requires a 1-7/16" hole in the tank for minimum/maximum of 1-5/8"Charts
Stewart Warner 385C-F Specifications
Stewart Warner 385C-F Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 385C-F |
| Brand | Stewart Warner |
| Overall Length | 12" |
| Ohm Range | 240 ohms empty, 33 ohms full |
| Height Adjustable | Yes |
| GENERAL | |
| Overall Diameter | 2.6" |
| Bolt Hole Pattern | SAE 5 hole (2.125 in. bolt circle) |
| Sold in Quantity | Each |
| Notes | 6.00" - 12.00" length. Requires a 1-7/16" hole in the tank for minimum/maximum of 1-5/8". |
Ratings & Reviews
4.8
37 Reviews
Customers unanimously praise our product for its quality, accuracy, and ease of installation. The product is versatile: fitting into different models of cars seamlessly, with some even installing it in self-built aircrafts. Users noted the benefit of being able to program it for custom dashboards, as well as its usefulness in providing accurate fuel readings. The high standard of material quality and the consistency of results were highlighted frequently. Many customers explicitly confirmed that they'd continue choosing our products over competitors, thanks to its confirmed superior performance and value.
Ratings & Reviews
4.8
37 Reviews
Customers unanimously praise our product for its quality, accuracy, and ease of installation. The product is versatile: fitting into different models of cars seamlessly, with some even installing it in self-built aircrafts. Users noted the benefit of being able to program it for custom dashboards, as well as its usefulness in providing accurate fuel readings. The high standard of material quality and the consistency of results were highlighted frequently. Many customers explicitly confirmed that they'd continue choosing our products over competitors, thanks to its confirmed superior performance and value.
4.8
37 reviews
5
31
4
5
3
0
2
0
1
1
Most Liked Positive Review
5.0
Stewart Warner products are the best
You can't beat quality and experience, these guys know what they are doing when they make products. You can depend on quality and endurance. Fit was perfect and performance was perfect. Will always chose Stewart Warner
Most Liked Negative Review
1.0
SW fuel gage and sender problem
After buying and installing the above SW set I found it would show about 1/8 tank of fuel when the sender was at the very bottom of the float travel. I ordered second sender and ended up with the same problem. I am told the problem can be corrected by using a resister in the fuel gage line to the gage. I have not tried the resister yet not knowing what value resister to use.
Filter by Ratings
I'd buy this again
5.0
8 months ago
Chi chris
Willow springs Illinois
Verified
Used this sender in my 1934 ford Victoria and it worked great! The instructions were super simple and install was a cake walk. Just make sure you have a good ground wire.
Would Recommend
If needed yes.
5.0
a year ago
Rag
Ssf ca
Verified
Instructions could be bet.
Would Recommend
I would purchase this product again ☺️
5.0
a year ago
Butch
San Luis Obispo,CA
Verified
Fit perfect in my tank
Would Recommend
Works!
5.0
a year ago
Rob
Mineola Tx.
Verified
Used this for a 7 inch deep tank on a street rod project..pretty strait forward. Had to make slight adjustments to get my guage to read the way I wanted
Would Recommend
yes I would buy it again, works like it's advertised.
5.0
3 years ago
Marv
Council Bluffs, IA
Verified
Although the car isn't assembled yet, I "bench" assembled it to make sure it worked properly and it did because having a tank full of gas isn't the time to determine there is a problem...plus it helped me ascertain that the fuel gauge was also working properly.
Would Recommend
Great product and I would defiantly buy it again if needed
5.0
3 years ago
BAL
South Windsor, CT
Verified
Wasn't sure how the grounding would work but after installing the float and setting the sender in place I filled the tank and low & behold, it worked!
Would Recommend
Must have for plastic tank install
5.0
3 years ago
JT
Orlando Florida
Verified
Must have purchase with your new plastic tank, but takes a bit of engineering to make work properly
Would Recommend
Exactly What I Needed
5.0
4 years ago
Jazzy
Townsend, MA
Verified
Installed perfectly and worked great on my '71 F-100
Would Recommend
Nice part
5.0
5 years ago
Jeff Mayes
Fortlauderdale
Verified
Did what it was supposed to do. Nice fit
Would Recommend
I would buy this product again
5.0
5 years ago
Chuck
Illinois
Verified
It's a little bit different from the old school and the new school but I can program it to the Dakota dash and it'll work just great
Would Recommend
Showing 10 of 37 reviews
