Part # 91002967

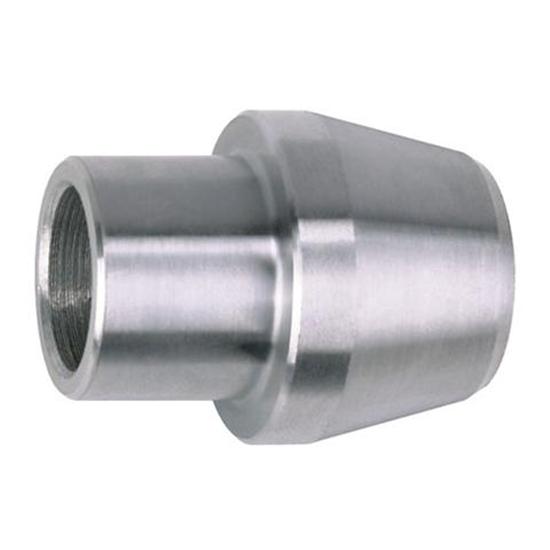

Steel Tube Ends Weld Bung for 1 Inch I.D. Tube, 5/8-18 RH

by

|

  • This heavy duty steel weld bung works well for a variety of applications including splitting wishbones, custom tie rods or custom suspension control arms
  • 5/8"-18 RH female threads works well along with heim joints, rod ends, 4 bar ends, etc.

$13.99

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, 1.375" Diameter Big End, Steel

  • This heavy duty steel weld bung works well for a variety of applications including splitting wishbones, custom tie rods or custom suspension control arms
  • 5/8"-18 RH female threads works well along with heim joints, rod ends, 4 bar ends, etc.
  • This bung is 1" OD where the tubing slips over making it a great fit for 1-3/8" 7 gauge tubing (.187" wall thickness), as well as 1-14" OD 11 gauge tubing (.125" wall thickness)
  • Use with a LH thread weld bung on the opposite end of suspension tubes so that spinning the tube will shorten or lengthen the assembly
  • When a heavy duty or custom length suspension link is necessary this is the perfect solution

Key Specs

MFG. Part #91002967
Overall Length1.75"
Diameter Big End1.375"
Diameter Small End0.975"
Thread Pitch5/8"-18

Need To Know

Free Shipping on Orders Over $149

Quick and Easy Returns

Details

Heavy duty steel weld bungs for splitting wishbones, custom tie rods or custom suspension control arms. These weld bungs are 1” O.D. (0.975") where they slide into the steel 1" I.D. tubing.

Specifications

KEY SPECS
MFG. Part #91002967
BrandSpeedway Motors
Overall Length1.75"
Diameter Big End1.375"
Diameter Small End0.975"
Thread Pitch5/8"-18
GENERAL
Thread TypeRH Female
Thread Length1.00"
Material TypeSteel
FinishZinc Plated
Sold in QuantityEach
StyleSmooth
Tube I.D.1"
