#1750301

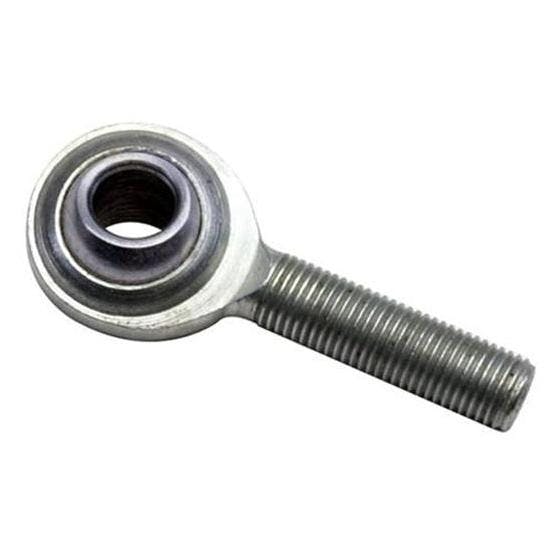

Standard Steel Heim Joint Rod Ends, 1/4 Inch LH Male
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
$6.99
/each
In Stock
$8.49
Save $1.50
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Male Thread Type, Steel, Zinc Plated
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 1/4"-28 LH male rolled threads ensure strength and precision
- 27 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750301 Details
Speedway Motors 1750301 Details
These standard rod ends are a general purpose, two piece design. They have a carbon steel body and a hardened ball with metal to metal contact.
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Charts
Standard Rod End Chart (GIF)
Guides & Documents
Speedway Motors 1750301 Specifications
Speedway Motors 1750301 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750301 |
| Brand | Speedway Motors |
| Thread Type | LH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
2 Reviews
Customers highly recommend this product for their linkage applications and replacing rod ends due to its superior quality and affordable price, setting it apart from competitors. Users have found it highly practical, praising its effective functionality and usability. Its confirmed qualities include durability, showcasing exceptional performance even under stress, highlighting its robust material quality and safety.
Ratings & Reviews
5
2 Reviews
Customers highly recommend this product for their linkage applications and replacing rod ends due to its superior quality and affordable price, setting it apart from competitors. Users have found it highly practical, praising its effective functionality and usability. Its confirmed qualities include durability, showcasing exceptional performance even under stress, highlighting its robust material quality and safety.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
I will buy again
5.0
2 years ago
Dan
Ia
Verified
Used for replacing stressed and broken rod ends on my Formula Ford after having rear suspension broken when hit during a race.
Would Recommend
good quality and price
5.0
7 years ago
jeepjay
monroe wa
Verified
use these for linkage applications they always work well
Would Recommend
Showing 2 of 2 reviews
