#1750201

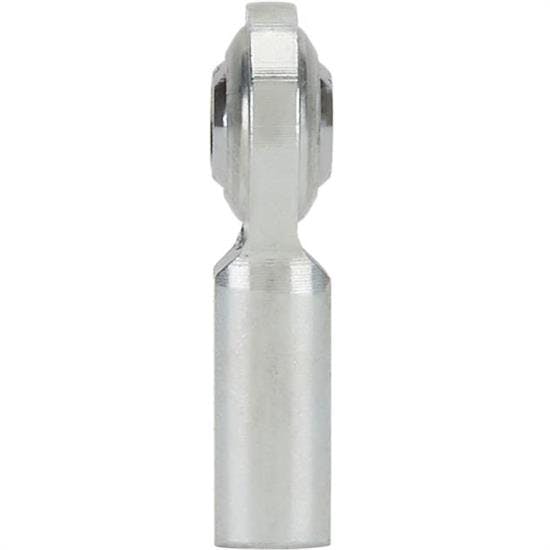

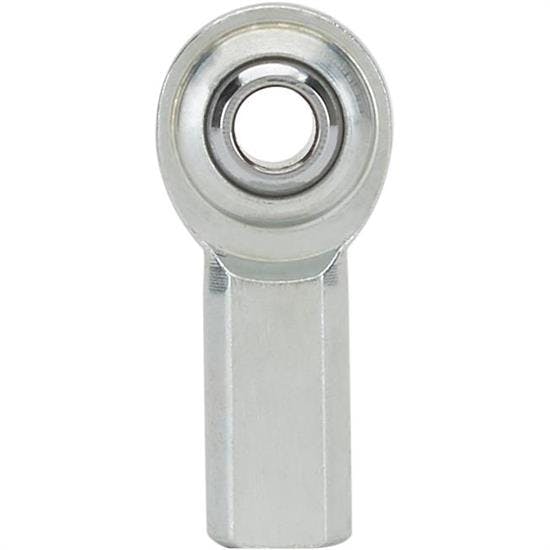

Standard Steel Heim Joint Rod Ends, 1/4-28 RH Female
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
$7.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Female Thread Type, Steel, Natural
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 1/4"-28 RH female threads ensure strength and precision
- 27 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750201 Details
Speedway Motors 1750201 Details
Standard rod ends are for general purpose applications and are a 2-piece design with a low carbon steel body and a hardened steel ball without a race (metal to metal contact).
Applications: Clutch, brake, and throttle.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750201 Specifications
Speedway Motors 1750201 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750201 |
| Brand | Speedway Motors |
| Thread Type | RH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 0.890" |
| Rod End Head Width | 0.75" |
| Bushing Length | .37" |
| Overall Length | 1.68" |
| Center Hole to End of Shank | 1.30" |
| Sold in Quantity | Each |
