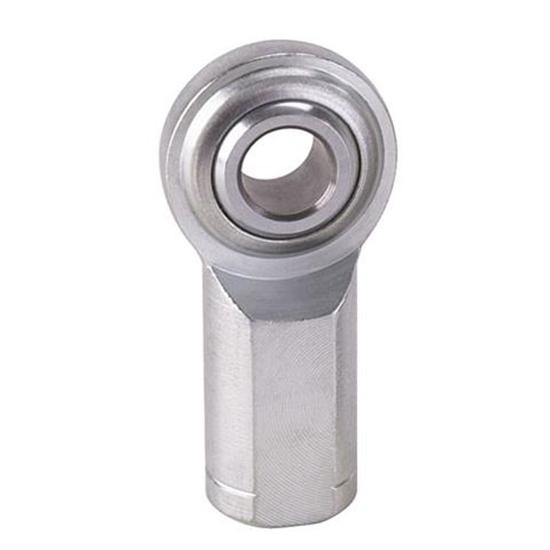

Standard Steel Heim Joint Rod Ends, 1/4-28 LH Female
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
$5.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Female Thread Type, Steel, Natural
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 1/4"-28 LH female threads ensure strength and precision
- 27 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750401 Details
Speedway Motors 1750401 Details
Standard rod ends are for general purpose applications and are a 2-piece design with a low carbon steel body and a hardened steel ball without a race (metal to metal contact).
Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750401 Specifications
Speedway Motors 1750401 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750401 |
| Brand | Speedway Motors |
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Eyelet |
| Thread Pitch | 1/4"-28 |
| Material Type | Steel |
| Hole Diameter | 0.25" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
2 Reviews
Customers speak highly of our product's functionality and versatility. They commend its proficiency in menial tasks, particularly for minor car adjustments. It has been successfully utilized as an adjustable rod for vehicle spoilers and excellently in mounting mechanical throttle linkages on a cobra, outperforming traditional cables. The quality of the material is consistently praised, solidifying our product's enviable status in comparison to competitors.
Ratings & Reviews
5
2 Reviews
Customers speak highly of our product's functionality and versatility. They commend its proficiency in menial tasks, particularly for minor car adjustments. It has been successfully utilized as an adjustable rod for vehicle spoilers and excellently in mounting mechanical throttle linkages on a cobra, outperforming traditional cables. The quality of the material is consistently praised, solidifying our product's enviable status in comparison to competitors.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
I would definetly buy the product again good for small jobs
5.0
9 years ago
Silver beast
El paso texas
Verified
I used this product to make adjustable rods for a front spoiler on a vehicle
Would Recommend
Great Throttle Linkage mount
5.0
16 years ago
FFR Builder
Boston
Nice part. I used three of these to mount a mechanical throttle linkage on my cobra. Much nicer than a cable.
Would Recommend
Showing 2 of 2 reviews
