#1750105

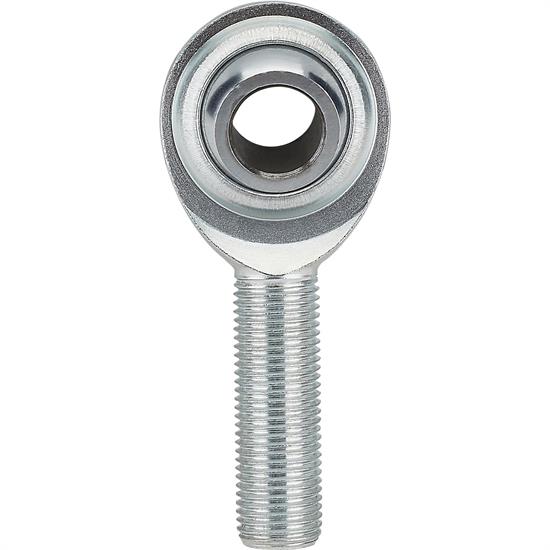

Standard Steel Heim Joint Rod Ends, 1/2-20 RH Male
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
$9.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 1/2"-20 RH male rolled threads ensure strength and precision
- 20 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750105 Details
Speedway Motors 1750105 Details
These right hand standard rod ends are a general purpose, two-piece design. They have a carbon steel body and a hardened steel ball without a race (metal to metal contact).
Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.
Assembly: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750105 Specifications
Speedway Motors 1750105 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750105 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 1/2"-20 |
| Material Type | Steel |
| Hole Diameter | 0.5" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
4.8
19 Reviews
Customers highly praise our product for its premium quality and functionality, being a perfect fit for various projects. Its practicality and adaptability in light duty applications and rod ends attachment for sway bars were commended. Some customers recommended it for applications on hot rods, and racing cars due to their experience with the product's durability and reliability. The product's sturdiness was remarked upon, however, there was one suggestion for a heavier variant. Despite this, the product's usability and performance across different contexts, including unibikes and street rods, are positively affirmed. The product is also recognized for its enduring performance, only requiring minimal maintenance. This is accompanied by an appreciation for its cost-effectiveness, making it a superior choice for linkage assemblies. In comparison with competitors, our product's longstanding quality, price point, and multifaceted utility have made it a preferred choice among users.
Ratings & Reviews
4.8
19 Reviews
Customers highly praise our product for its premium quality and functionality, being a perfect fit for various projects. Its practicality and adaptability in light duty applications and rod ends attachment for sway bars were commended. Some customers recommended it for applications on hot rods, and racing cars due to their experience with the product's durability and reliability. The product's sturdiness was remarked upon, however, there was one suggestion for a heavier variant. Despite this, the product's usability and performance across different contexts, including unibikes and street rods, are positively affirmed. The product is also recognized for its enduring performance, only requiring minimal maintenance. This is accompanied by an appreciation for its cost-effectiveness, making it a superior choice for linkage assemblies. In comparison with competitors, our product's longstanding quality, price point, and multifaceted utility have made it a preferred choice among users.
4.8
19 reviews
5
16
4
2
3
1
2
0
1
0
Most Liked Positive Review
5.0
Been using these for years.
I have used these same Heim Joints (in various sizes) on the last several cars I have built, both hot rods and race cars. I am yet to ever have one break and they hold up very well with just a little lubrication two or three times per year with some white lithium spray grease. Also, I haven't found any supplier that beats Speedway's price.
Most Liked Negative Review
3.0
Standard RH Male Heim, 1/2" Shank/Hole
I'm using this product in a linkage assembly. It's low cost makes it ideal for this application.
Filter by Ratings
Perfect for my application
5.0
a year ago
Robert
Houston, TX
Verified
I'm using this for a go kart / buggy I am building for my children. Plenty strong for that, no slop, and also low friction. Also, the price is right! Perfect for what I am doing.
Would Recommend
Great quality!
5.0
2 years ago
Vince
Wisconsin
Verified
Very good quality. I used this for a project and it fit and functioned perfectly.
Would Recommend
As described.
5.0
3 years ago
Matt
Roseville
Verified
Upswing in light duty application. Holding up well.
Would Recommend
Yes I would.
4.0
4 years ago
AlFord
Garfield, Wash.
Verified
I used it on the back of my radius rod. I wish it was a little heaver.
Would Recommend
I would buy this again.
5.0
4 years ago
Mike
Ca.
Verified
Worked great for my four link.
Would Recommend
Great product.
5.0
5 years ago
Nick V
Panama City Florida
Verified
Used these to fab up a set of double adjustable aluminum sway bar links for 2020 Gladiator. Worked perfect.
Would Recommend
I would buy this item again.
5.0
5 years ago
J
McAlester, OK
Verified
I am using rod ends to attach sway bar links to a sway bar on the rear of a hot rod. The sway bar is a midget torsion bar and arms with Speedway bushings in a steel tube. Simple.
Would Recommend
Will be buying this item for my projects in the future
5.0
6 years ago
Eddy
Houston tx
Verified
It was perfect for what I needed and price was reasonable
Would Recommend
these are great products, I recomend these to everyone !
5.0
6 years ago
GIZMO
Declo, Idaho
Verified
these work perfect! In the past I have purchased some hiem joints for my pro street falcon. Now I am using them on a pro street kids pedal car.
Would Recommend
I would buy again
5.0
6 years ago
Tony
Nebraska
Verified
Fits great
Would Recommend
Showing 10 of 19 reviews
Questions & Answers
Questions & Answers
4 Questions • 4 Answers
How big is the hole in the heim?
by dah
• 2 months ago
1 answer
View Answer
What is the part number of the appropriate threaded adapter?
by alex
• 9 years ago
1 answer
View Answer
dimension CM8 ? Hi, The dimensions are the same of CM8 on the pics ? Sorry I'm french....
by ju64
• 11 years ago
1 answer
View Answer
What is the thread demintions?
by
• 14 years ago
1 answer
View Answer
4 of 4 questions shown
