#91335109

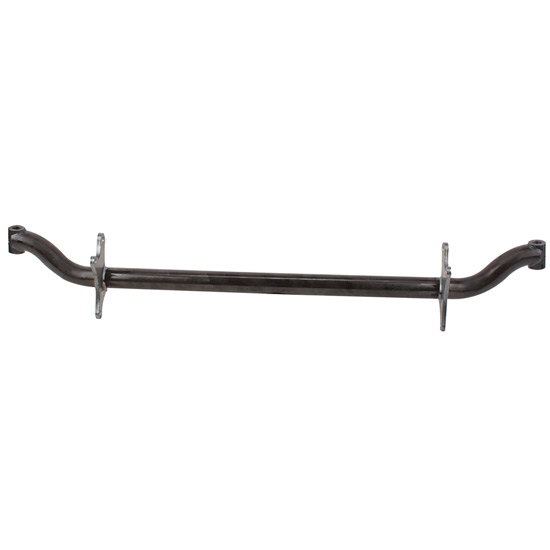

Spring Over Front Tube Axle, Ford Spindle, 4 Inch Drop, Plain
- For '37-'48 early Ford spindles
- 4" drop spring over
- 48" kingpin centers
$629.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Ford Stock Spindle Style, Dropped Axle
- For '37-'48 early Ford spindles
- 4" drop spring over
- 48" kingpin centers
- .250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
- Plain finish
Key Specs
| Spindle Style | Ford Stock |
| Straight Axle Style | Tube |
| Dropped Axle | Yes |
| Suspension Height Adjustment | 4 Inch Lowered |
| Tube O.D. | 2" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91335109 Details
Speedway Motors 91335109 Details
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.
- Spring-over axle design
- 48" eye-to-eye
- Use with 26" spring
Charts
Specs
- Axle Bracket Thickness: 3/8"
- Axle Bracket Spacing: 5" eye to eye (outside holes)
- Spring Shackle Pivot Hole to Center of the Axle: 3-3/4"
Guides & Documents
Speedway Motors 91335109 Specifications
Speedway Motors 91335109 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91335109 |
| Brand | Speedway Motors |
| Spindle Style | Ford Stock |
| Straight Axle Style | Tube |
| Dropped Axle | Yes |
| Suspension Height Adjustment | 4 Inch Lowered |
| Tube O.D. | 2" |
| Finish | Natural |
| Material Type | Steel |
| GENERAL | |
| King Pin Centers | 48" |
| Drilled | No |
| Material Thickness | 0.250" |
| Front Leaf Spring Style | Spring-Over Axle |
| Sold in Quantity | Each |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Nice axle
5.0
4 years ago
Will
Oklahoma
Verified
Not that I wanted a new axle, but the one I had was bent.... So Speedway to the rescue. The car is still being built so I can't say anything about driving on it. But as a fabricator myself. I can tell you this is a well built piece and it fit perfect. Not to finish installing the rest of the suspension and get some spindles mounted up.
Would Recommend
Showing 1 of 1 reviews
