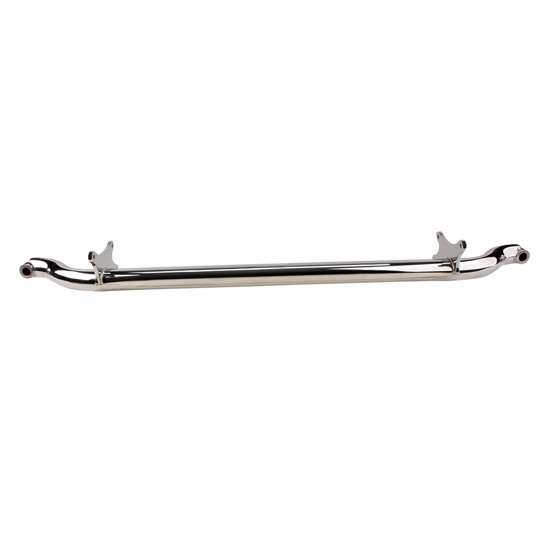

Spring Over Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome

#91335108

Spring Over Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome

For '37-'48 early Ford spindles
4" drop spring over
48" kingpin centers

Finish:

Chrome

$649.99

/each

On Backorder

This part is Backordered. We estimate this item will ship on or before December 7th.

Get something sooner

Browse In Stock and Ready to Ship Alternatives

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Ford Stock Spindle Style, Dropped Axle

For '37-'48 early Ford spindles
4" drop spring over
48" kingpin centers
.250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
Chrome finish

See more details

Key Specs

Spindle Style	Ford Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91335108 Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.

Spring-over axle design
48" eye-to-eye
Use with 26" spring

Charts

Spring Over Suspension Image (JPG)

Leaf Spring Measuring Guide (JPG)

Caster Angle Illustration (GIF)

Specs

Axle Bracket Thickness: 3/8"
Axle Bracket Spacing: 5" eye to eye (outside holes)
Spring Shackle Pivot Hole to Center of the Axle: 3-3/4"

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Solid Axle Choices for Your Traditional Hot Rod

Straight Axles Technical Information (91335108)

CA Prop 65

Speedway Motors 91335108 Specifications

KEY SPECS
MFG. Part #	91335108
Brand	Speedway Motors
Spindle Style	Ford Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"
Finish	Chrome
Material Type	Steel

GENERAL
King Pin Centers	48"
Drilled	No
Material Thickness	0.250"
Front Leaf Spring Style	Spring-Over Axle
Sold in Quantity	Each
