$599.99

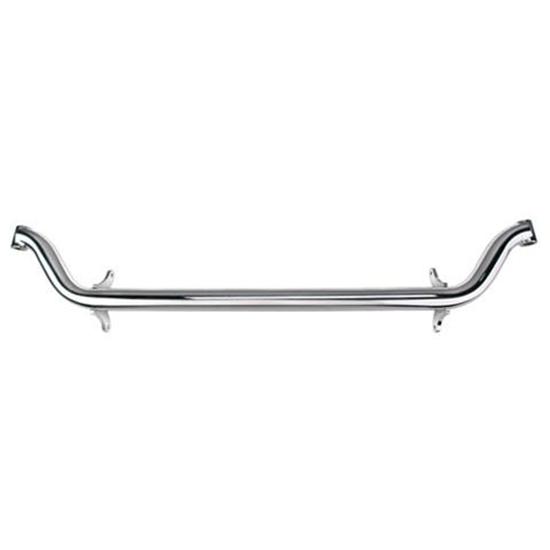

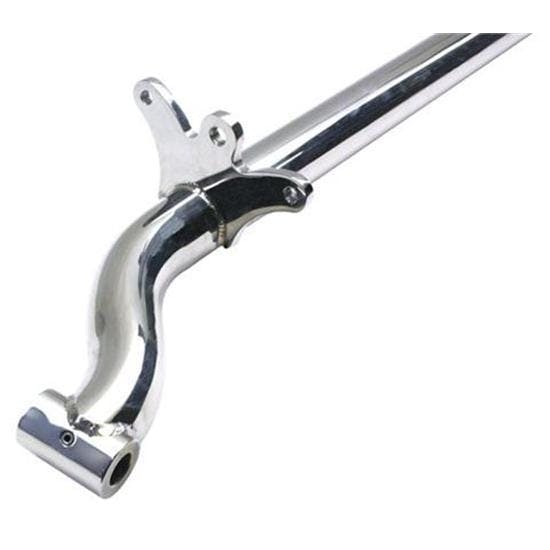

Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome
Universal Fit, Ford Stock Spindle Style, Solid Tube Straight Axle Style, 48" King Pin Centers
On Backorder
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome
X
We estimate this item will ship on or before January 31st.
Part # 91335106
$599.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- For '37-'48 early Ford spindles
- 4" drop spring behind
- 48" kingpin centers
- .250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
- Chrome finish
Details
Spindle Style:
Ford Stock
Straight Axle Style:
Solid Tube
King Pin Centers:
48"
Drilled:
No
Dropped Axle:
Yes
Suspension Height Adjustment:
4 Inch Lowered
Tube O.D.:
2"
Finish:
Chrome
Material Type:
Steel
Material Thickness:
0.250"
Front Leaf Spring Style:
Spring-Behind Axle
Sold in Quantity:
Each
MFG. Part #:
91335106
Info
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.
- Spring-behind axle design
- 48" eye-to-eye
- Use with 26" spring
Spring Behind Axle Illustration (GIF)
Leaf Spring Measuring Guide (Link)
Specs
- Axle Bracket Thickness: 3/8"
- Axle Bracket Spacing: 5" eye to eye (outside holes)
Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
