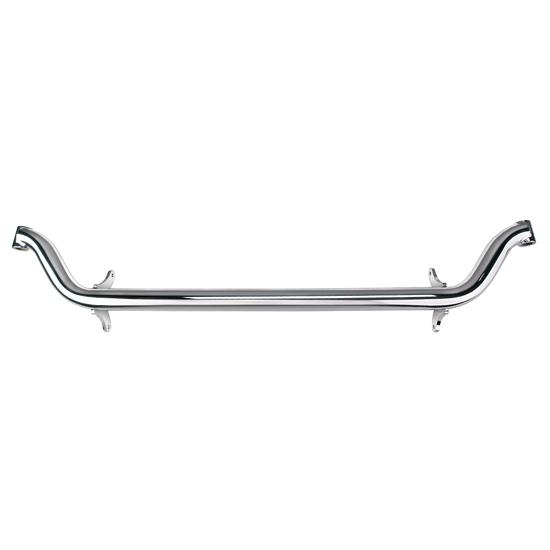

Spring Behind Front Tube Axle, Chevy Spindle, 6 Inch Drop, Chrome
Spring Behind Front Tube Axle, Chevy Spindle, 6 Inch Drop, Chrome
Speedway Motors

|

#91335210

Spring Behind Front Tube Axle, Chevy Spindle, 6 Inch Drop, Chrome

Finish:

Chrome

Plain

$649.99

/each

On Backorder

This part is Backordered. We estimate this item will ship on or before September 13th.

Get something sooner

Browse In Stock and Ready to Ship Alternatives

Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Chevy/GM Stock Spindle Style, Chrome

    See more details

    Key Specs

    Spindle StyleChevy/GM Stock
    Straight Axle StyleTube
    Dropped AxleYes
    Suspension Height Adjustment6 Inch Lowered
    Tube O.D.2"
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Speedway Motors 91335210 Details

    Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

    • Spring-behind axle design
    • 48" eye-to-eye
    • Use with 26" spring

    Charts

    Specs

    • Axle Bracket Thickness:  3/8"
    • Axle Bracket Spacing:  5" eye to eye (outside holes)

    Speedway Motors 91335210 Specifications

    KEY SPECS
    MFG. Part #91335210
    BrandSpeedway Motors
    Spindle StyleChevy/GM Stock
    Straight Axle StyleTube
    Dropped AxleYes
    Suspension Height Adjustment6 Inch Lowered
    Tube O.D.2"
    FinishChrome
    Material TypeSteel
    GENERAL
    King Pin Centers48"
    DrilledNo
    Material Thickness0.250"
    Front Leaf Spring StyleSpring-Behind Axle
    Sold in QuantityEach

    Questions & Answers

    3 Questions • 3 Answers

    Will this work to replace the 4inch drop axle that comes with your deluxe t bucket kit with 4 link front suspension?

    by ClintonT

    • 8 years ago

    1 answer

    View Answer

    Does the spring-behind chrome tube axle for Chevy spindles have the threaded hole for the clevis pin? I want to order the spindles #91032100 and put them on the axle #91335210. The diagram shows a threaded hole in the axle for the king pin.

    by Arrcee

    • 11 years ago

    1 answer

    View Answer

    is this axle for chevy car or truck spindles?

    by tbuilder

    • 12 years ago

    1 answer

    View Answer

    3 of 3 questions shown
