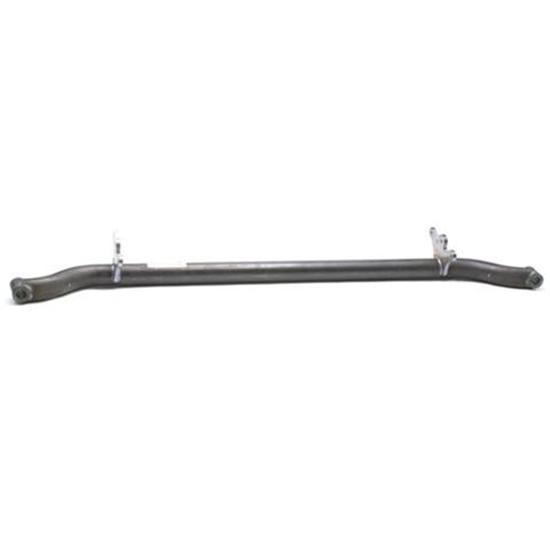

Spring Behind Front Tube Axle, Chevy Spindle, 6 Inch Drop, Plain

#91335211

Spring Behind Front Tube Axle, Chevy Spindle, 6 Inch Drop, Plain

This 6" dropped tube axle is perfect for your spring behind front end on your hot rod build
Accepts 1949 to 1954 Chevy spindles which have a wide selection of brake kits and wheel bolt patterns available
Constructed from 2" diameter .250" wall thickness premium steel tubing for outstanding strength

Finish:

Plain

$406.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Chevy/GM Stock Spindle Style, Natural

This 6" dropped tube axle is perfect for your spring behind front end on your hot rod build
Accepts 1949 to 1954 Chevy spindles which have a wide selection of brake kits and wheel bolt patterns available
Constructed from 2" diameter .250" wall thickness premium steel tubing for outstanding strength
Mounts for radius rods and the spring come welded to the axle for your convenience
48" kingpin centers and is designed for use with a 26" spring

See more details

Key Specs

Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	6 Inch Lowered
Tube O.D.	2"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91335211 Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

Spring-behind axle design
48" eye-to-eye
Use with 26" spring

Charts

Spring Behind Axle Illustration (GIF)

Leaf Spring Measuring Guide (JPG)

Caster Angle Illustration (GIF)

Specs

Axle Bracket Thickness: 3/8"
Axle Bracket Spacing: 5" eye to eye (outside holes)

Guides & Documents

Straight Axles Technical Information (91335211)

CA Prop 65

Speedway Motors 91335211 Specifications

KEY SPECS
MFG. Part #	91335211
Brand	Speedway Motors
Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	6 Inch Lowered
Tube O.D.	2"
Finish	Natural
Material Type	Steel

GENERAL
King Pin Centers	48"
Drilled	No
Material Thickness	0.250"
Front Leaf Spring Style	Spring-Behind Axle
Sold in Quantity	Each
