Add to Cart
$1,099.99

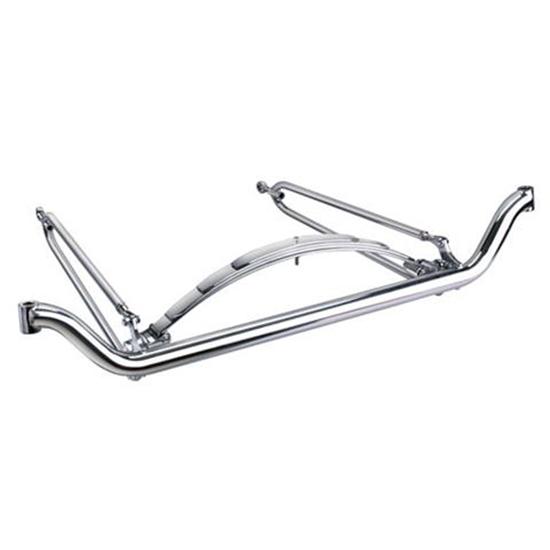

Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome
Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome

Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome

Universal Fit, Straight Axle Front Suspension Type, 4 Inch Lowered Suspension Height Adjustment

2 Reviews | 1 Answered Question
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome
Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome
Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome
X
Spring-Behind 4 In Drop Tube Axle Front End for Ford Spindles, Chrome
Zoomed In Image
Part # 91339002
$1,099.99
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This 4" drop tube axle front suspension kit is just the ticket for your hot rod build
  • Spring behind design lowers the ride height and delivers an outstanding appearance
  • Harpin radius rods make for a simple installation onto your frame
  • Beautifully chrome plated components make this perfect for show cars
  • Requires '37 to '48 Ford spindles - see our various steering and brake kits to complete your front end

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Front Suspension Type:
Straight Axle
Suspension Height Adjustment:
4 Inch Lowered
Control Arm Style:
Radius Rod
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Chrome
Spindle Style:
Ford Stock
Dropped Spindles:
No
Dropped Axle:
Yes
Dropped Control Arms:
No
Front Leaf Spring Style:
Spring-Behind Axle
Spindles Included:
No
MFG. Part #:
91339002

Info

For 1937-1948 early Ford passenger car spindles. Maximum car weight 2500 lbs.

Kit includes:

  • Two 1-3/4" spring shackles w/ nylon bushings
  • Two spring pivots
  • 26" 4-leaf spring w/ nylon buttons
  • Two axle brackets
  • Tube axle, 48" eye-to-eye, 4" dropped
  • Two 27" radius rods
  • Four clevises with jam nuts and bolts
  • Two 5/8" Heims with jam nuts
  • Spring U-bolts sold separately

Front Axle/Suspension Tech Tips (GIF)

Notes

Installation Guide (PDF)

Charts

Instructions (PDF)

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Spring Behind Front Tube Axle, Ford Spindle, 4 Inch Drop, Chrome
    Qty x 1
  • Front Hairpin Radius Rods, 27 Inch, Chrome Steel
    Qty x 1
  • Super Glide® T-Bucket Front Spring, Standard Eye, Chrome
    Qty x 1
  • Hardware, Chrome Front End
    Qty x 1
  • Hairpin Front Axle Instruction Sheet
    Qty x 1
