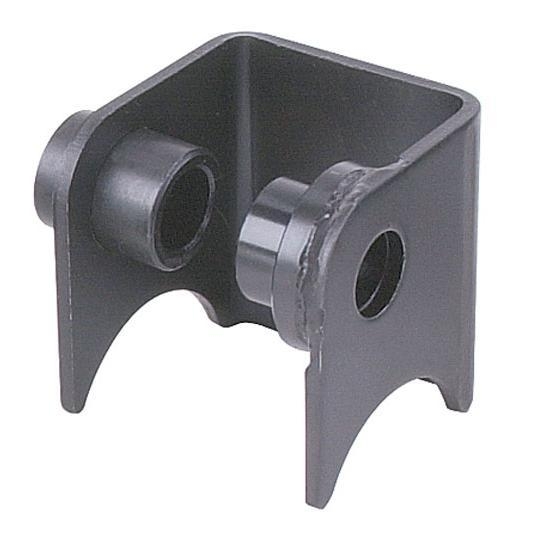

Speedway Weld-On Roll Cage Shock Mount
Speedway Weld-On Roll Cage Shock Mount

Speedway Weld-On Roll Cage Shock Mount

Universal Fit, Steel, Painted, 0.51" Hole Diameter, Welding Required, 2.00" Overall Length

10 Reviews | 0 Answered Questions
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Speedway Weld-On Roll Cage Shock Mount
Speedway Weld-On Roll Cage Shock Mount
Speedway Weld-On Roll Cage Shock Mount
X
Speedway Weld-On Roll Cage Shock Mount
Zoomed In Image
Part # 91721002
$5.99
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • Weld-on shock mount for bearing end shocks (spherical bearings or heim)
  • Contoured to fit onto 1.5" outside diameter tubing
  • Mount can easily be altered to fit on 1.625," 1.750"
  • This will accept a shock eye with a maximum width of 1"
  • Features a 1/2" hole

Details

Material Type:
Steel
Finish:
Painted
Hole Diameter:
0.51"
Welding Required:
Yes
Overall Length:
2.00"
Overall Width:
1.88"
Overall Height:
1.86"
Material Thickness:
0.11"
Color:
Black
MFG. Part #:
91721002
Sold in Quantity:
Each

Info

Weld-on shock mount for bearing end shocks (spherical bearings or heim). Has a 1/2" hole.

  • Contoured to fit onto 1.5" outside diameter tubing
  • Can easily be altered to fit on 1.625", 1.750" or even 2" diameter tubing

Without modification, this bracket will accept a shock eye with a maximum width of 1". If the installer cuts away part of the support bushing, this bracket would accept a shock eye that is 1.375" wide.

Note: Pin # 910-07300 wont fit this bracket.

Item Details

Accepts a 1/2" bolt (not included).

Application

This bracket is contoured to fit onto 1.5" outside diameter tubing. It can easily be altered to fit on 1.625," 1.750" perhaps even 2" diameter tubing as well. Without a modification, this bracket will accept a shock eye with a maximum width of 1". If the installer cuts away part of the support bushing, this bracket would accept a shock eye that is 1.375" wide.

Specs

This bracket is contoured to fit onto 1.5" outside diameter tubing. It can easily be altered to fit on 1.625," 1.750" perhaps even 2" diameter tubing as well. Without modification, this bracket will accept a shock eye with a maximum width of 1". If the installer cuts away part of the support bushing, this bracket would accept a shock eye that is 1.375" wide.

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
