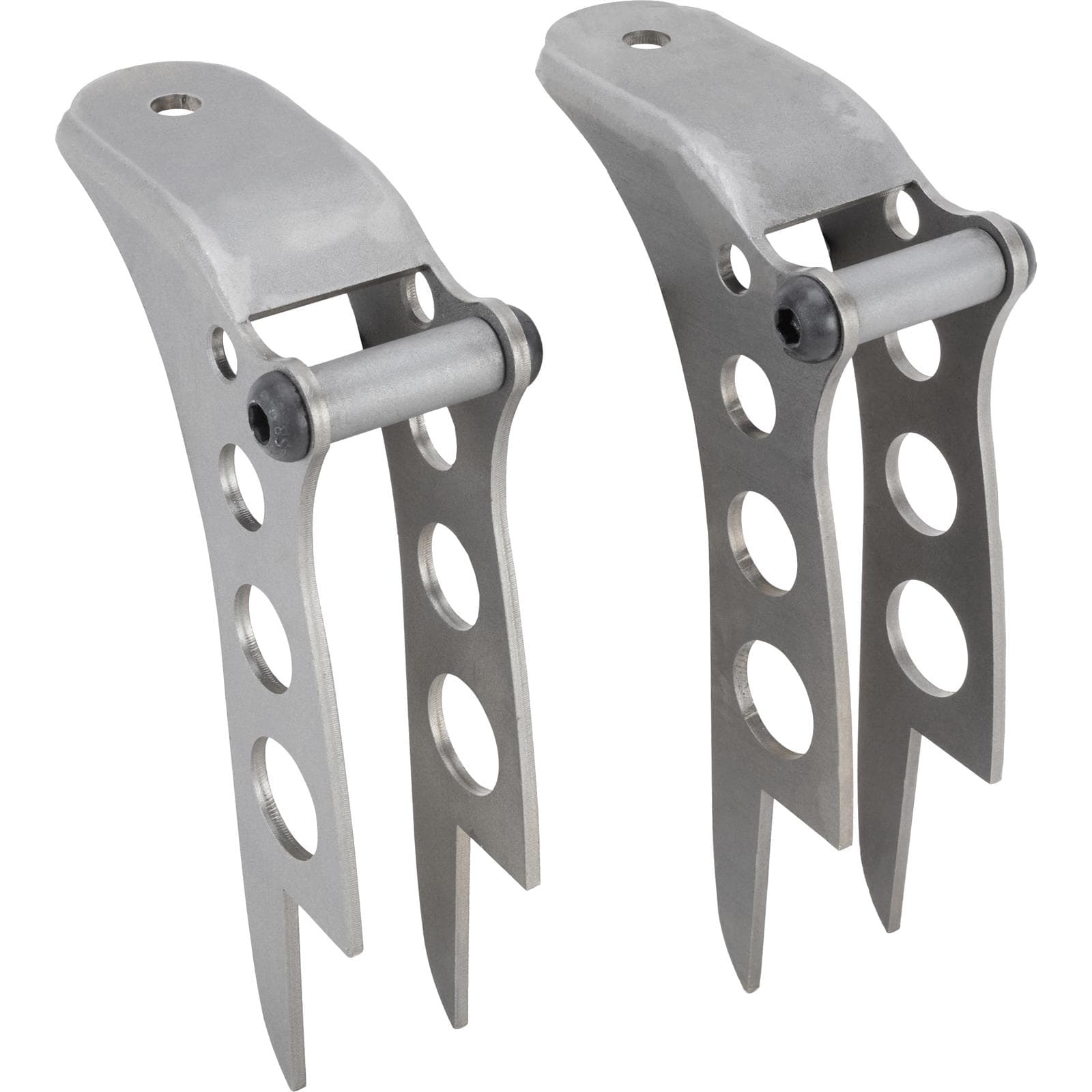

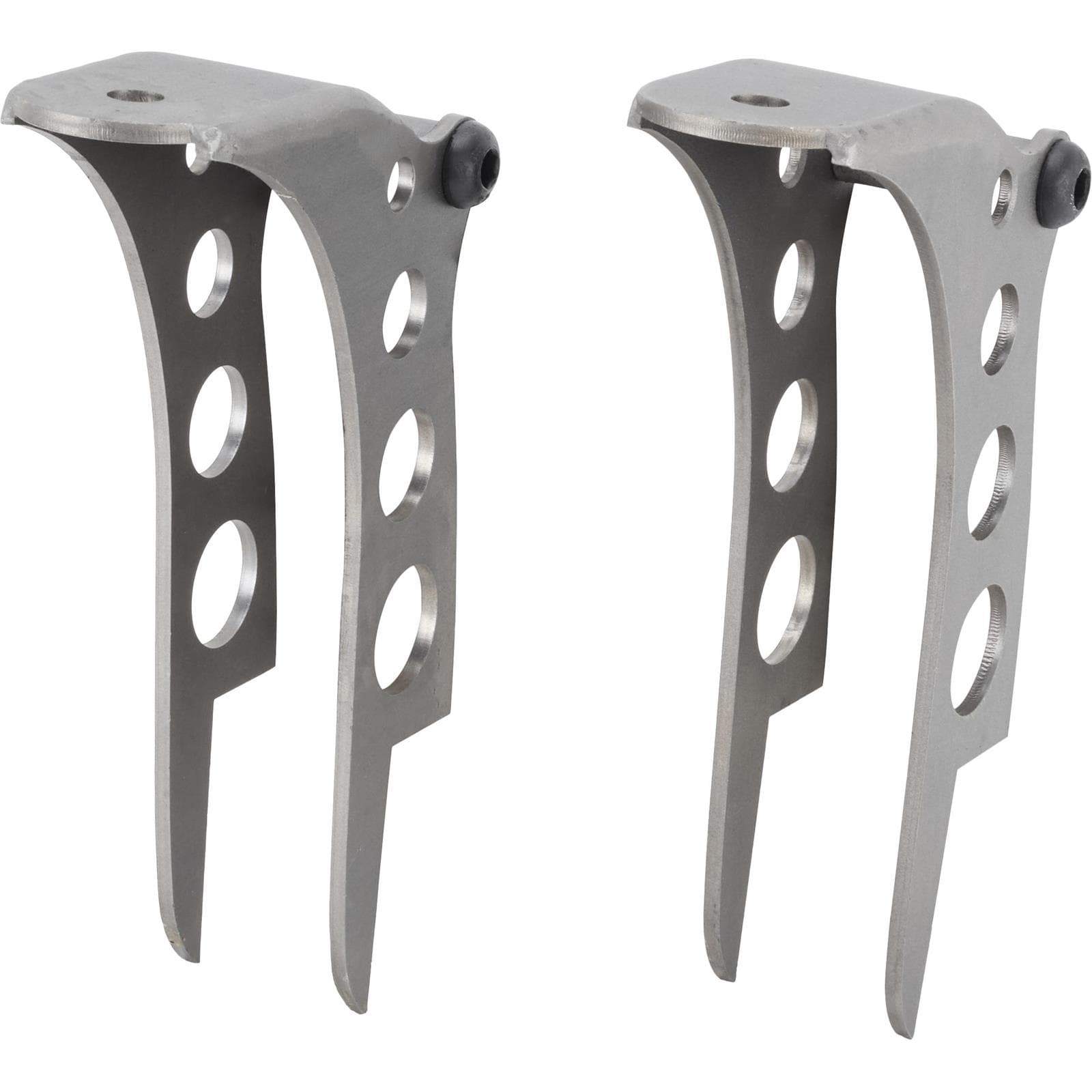

Speedway Universal Weld-On Shock/Headlight Mount Brackets
- Headlight and shock mounts designed for our T-buckets however could be used for multiple vehicles, welded to the outside edge of the frame rail with the shock mounting on outside (front) of the bracket
- Mounts Dietz style headlights or others requiring a 1/2" hole
- Features two different 1/2" holes for upper shock mounting
$109.99
/pair
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Steel, Natural, 0.50" Hole Diameter
- Headlight and shock mounts designed for our T-buckets however could be used for multiple vehicles, welded to the outside edge of the frame rail with the shock mounting on outside (front) of the bracket
- Mounts Dietz style headlights or others requiring a 1/2" hole
- Features two different 1/2" holes for upper shock mounting
- Measures 6" from the upper shock mount hole to the top of the frame rail
- Inner shock bolt hole is 5-7/8” from top of frame and inside outer edge of frame ¼”, outer shock hole is 6” from top of frame and outside frame 1”
Key Specs
| Material Type | Steel |
| Finish | Natural |
| Overall Length | 5.00" |
| Overall Width | 2.65" |
| Overall Height | 10.00" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91036003 Details
Speedway Motors 91036003 Details
These are the headlight and shock mounts we designed for our T-buckets. They were designed to be welded to the outside edge of the frame rail with the shock mounting on outside (front) of the bracket.
- Mounts have 1/2" holes for Dietz style or other headlights
- Each mount has two different 1/2" hole locations for upper shock mounting
- Weld-on to frame rail
- Shock bolts to outside, front of mount
- Inner shock bolt hole is 5-7/8” from top of frame and inside outer edge of frame ¼”
- Outer shock hole is 6” from top of frame and outside frame 1”
- Headlight hole is 3-3/8” outside of frame and up from frame 6-7/8”
Be sure to purchase our shock mount bolts (sold separately) with installation of these brackets.
Note: For use with radius rod front suspensions and Speedway T-Bucket 4-bar kits. Will not work with Model A and newer 4-bar kits.
Speedway Motors 91036003 Specifications
Speedway Motors 91036003 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91036003 |
| Brand | Speedway Motors |
| Material Type | Steel |
| Finish | Natural |
| Overall Length | 5.00" |
| Overall Width | 2.65" |
| Overall Height | 10.00" |
| GENERAL | |
| Hole Diameter | 0.50" |
| Mounted Height | 7.00" |
| Stud Diameter | 0.75" |
| Stud Length | 1.75" |
| Notes | This set of brackets is intended to be used with "radius-rod" (not 4-bar) style T-frames. These are built in our SHOP as needed. |
| Sold in Quantity | Pair |
