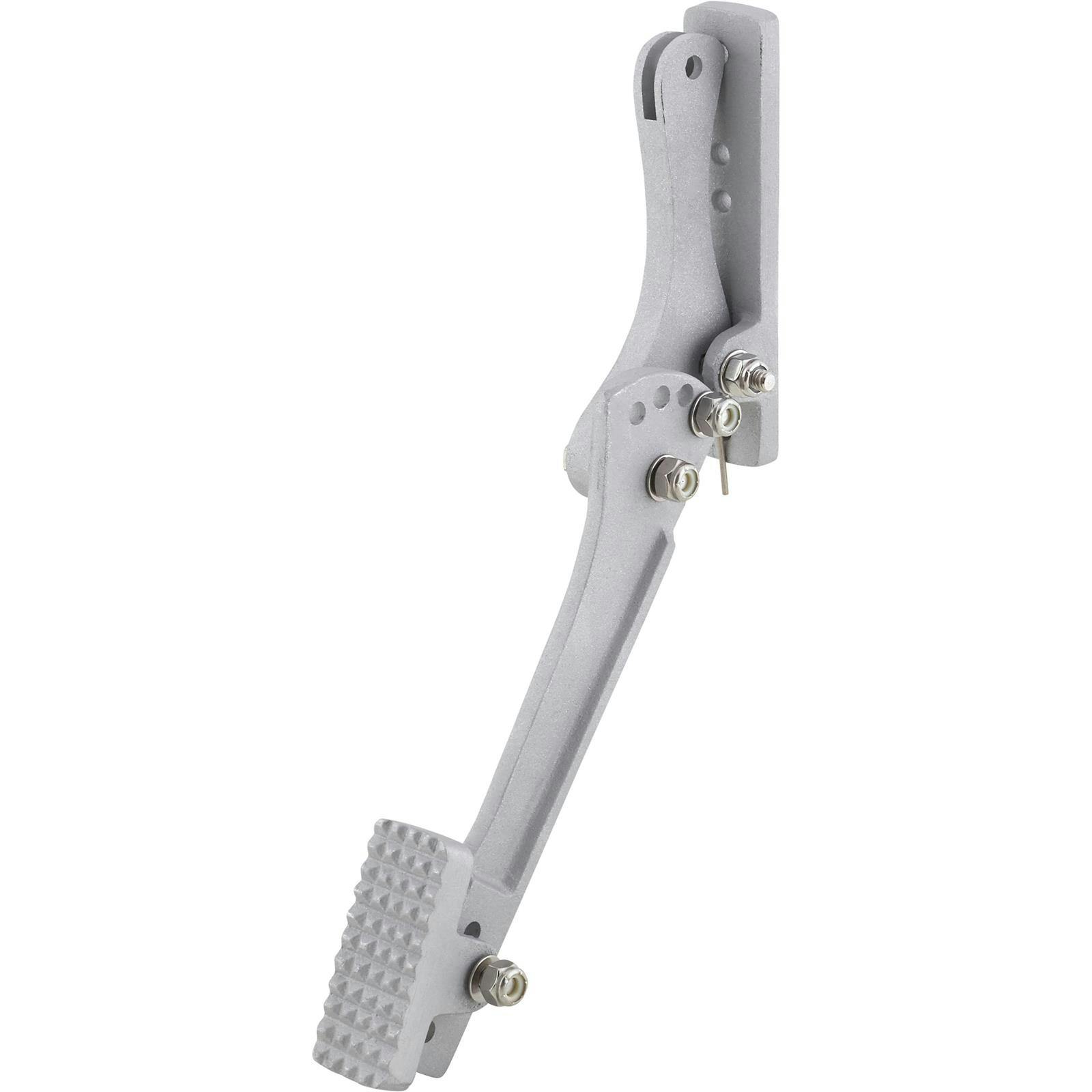

Speedway Universal Cast Aluminum Accelerator Throttle Pedal
- Beautiful cast aluminum pedals are fully adjustable
- Lower arm has 4 mount holes to change angle with the upper arm
- We recommend universal cable linkage #560-6230
$58.99
/each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Get something sooner
Browse In Stock and Ready to Ship AlternativesQuantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Aluminum, Natural, 11.00" Pedal Length
- Beautiful cast aluminum pedals are fully adjustable
- Lower arm has 4 mount holes to change angle with the upper arm
- We recommend universal cable linkage #560-6230
- Cable clamp sleeve is included for attachment to the throttle cable
- Cast Pedals have a nostalgic look and are a great touch to your custom interior
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91655025 Details
Speedway Motors 91655025 Details
Universal cast aluminum pedals are fully adjustable and have a 6-7/8" arm. Throttle cables not included. We recommend universal cable linkage #550-5657.
Specs
- Mounting base is 5-1/16” tall, 1-1/8” wide, and ¼” thick with 3 mounting hole options
- Mounting surface to center of pivot point is ½”
- Upper arm pivot hole to center of cable attachment hole is 3¼”
- Lower pedal arm is 8-1/8” from pivot point center to end of arm and has 4 mount holes for the pedal pad
- Pedal pad has non slip diamond pattern and at bottom hole on arm extends past arm 1”
- Pedal pad is 1-1/8” wide, 2-5/8” tall, and ¼” thick
- Lower arm has 4 mount holes to change angle with the upper arm
Speedway Motors 91655025 Specifications
Speedway Motors 91655025 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91655025 |
| Brand | Speedway Motors |
| Material Type | Aluminum |
| GENERAL | |
| Finish | Natural |
| Pedal Length | 11.00" |
| Pedal Width | 1.13" |
| Overall Width | 1.75" |
| Sold in Quantity | Each |
Ratings & Reviews
4.1
29 Reviews
Customers praised the product for its affordability and adaptability to custom applications, with many successfully using it in their different vehicle models. It was noted for its quality casting, good fit, and efficient performance, even in tight spaces. However, some customers mentioned that additional enhancements like shims, washers and bushings were needed to improve the fit and reduce side-to-side movement. The product's adjustability was appreciated, although a lack of clear instructions was mentioned. Despite some minor concerns, the overall consensus favored the product for offering good value for the price point.
Ratings & Reviews
4.1
29 Reviews
Customers praised the product for its affordability and adaptability to custom applications, with many successfully using it in their different vehicle models. It was noted for its quality casting, good fit, and efficient performance, even in tight spaces. However, some customers mentioned that additional enhancements like shims, washers and bushings were needed to improve the fit and reduce side-to-side movement. The product's adjustability was appreciated, although a lack of clear instructions was mentioned. Despite some minor concerns, the overall consensus favored the product for offering good value for the price point.
4.1
29 reviews
5
16
4
7
3
3
2
0
1
3
Most Liked Positive Review
4.0
Good value overall
Great pedal, I like the size and shape. It was easy to fit this to my firewall to match the height and throw of the brake and clutch pedals. The only negative is that the pedal is not tight enough side to side, and sometimes wobbles left/right under your foot. You'll hardly notice it with shoes on, and it's no showstopper, just not the most solid feel.
Most Liked Negative Review
3.0
Looks okay
It generally looks good, but the clearances are loose. It's going to need to have washers added as shims to keep it from rocking from side to side at the fulcrum and over-stressing the hinge points. And the hinge points are just cap screws in drilled holes. Really what you'd expect given the cost so no real complaint there. But it's going to be a little tempting to try to add bushings or bearings when I install it. Some sort of instruction diagram would have been helpful. Taking it apart and reassembling it with the components in the different positions is interesting, but it's difficult to see how all the different alternatives would actually work. The universal throttle cable that they recommend to go with it looks a little sketchy, primarily because what looks like the pedal end consists of a loop in the cable that will fit over a bolt at the top the lever, likely riding on and pulling against the sharp thread edges, and the carb end is just collar with a set screw. A little searching has turned up some other, more secure-looking possibilities. Particularly one of the Lokar XTC universal cables.
Filter by Ratings
I would buy this again
5.0
a year ago
Jbird
Roscoe Illinois
Verified
Worked perfectly for my 1951 chevy ls swap
Would Recommend
Yes I will buy again
5.0
a year ago
Drew
New Zealand
Verified
Excellent product Excellent quality Speedway Motors you sell the best parts.
Would Recommend
Rough edges but solid
5.0
a year ago
Derek
Cedar Rapids, IA
Verified
The casting looks like some amateur sand packing as its pretty rough, but everything is complete and holes were drilled properly. Adjustable pedal positions really made my install easy. I pressed a cable screw into the assembly with ease. Looks like this will hold up well considering it is a very soft alloy.
Would Recommend
Great product great service
5.0
2 years ago
Jay jay
Nc
Verified
Great product great service
Would Recommend
I will use speedway again
5.0
2 years ago
Fred
Venice Florida
Verified
Perfect for a tight space
Would Recommend
I would buy again
4.0
3 years ago
Ken
Nh
Verified
Gas pedal
Would Recommend
Good product
5.0
3 years ago
Nick m
Glendora ca
Verified
Could you some spacer to make it great, Great price point so if you have the know how to add better hardware, shims and bushings it will be a great vintage looking pedal. As stated in other reviews you cannot move pedal pad to bottom hole or it just rotates down and isn't usable.
Would Recommend
It worked perfectly thank you. And you're staff was very hel
5.0
4 years ago
Phil the Grinch
St Louis ,mo
Verified
Everything I buy most of time fits from the help I get there. When I have to return a part you make it easy thanks
Would Recommend
Too loose. Bottom hole of pedal adjustment isn't usable.
1.0
4 years ago
Scott E.
Carthage, MO
I bought the pedal for the price and that it looked like a design that would fit my custom application well. It is a cast part with a lot of space between pieces. This allows for large amounts of side-to-side movement. I wanted to use the pedal in its longest position, but the pedal pad swings down and faces the floor. I tried to pick up a spring at a hardware store to improve on the design, but they didn't have any that would fit. By the time I order and ship one that would work, I could have bought a more expensive, and better designed, pedal. It is a great price if you are willing to add a spring and shims or bushings to improve on this.
I would if I needed another one .
5.0
4 years ago
Jake
Winslow az
Verified
I'm using the fuel pedal to convert my 76 Ford F-250 with a 12 valve Cummins
Would Recommend
Showing 10 of 29 reviews
