Speedway Tribute T-Bucket Quick Change Rear End Kit

#7151801

Speedway Tribute T-Bucket Quick Change Rear End Kit

Incudes a medium-arch rear leaf spring with specially designed 36" radius rods
The lower links have tie rod ends for a "period correct" appearance
The triangulated upper control arms attach to axle with a special bracket

$5,844.99

Made to Order

$5,933.53

Save $88.54

This is a custom fabricated part. We estimate this item will ship on or before December 16th.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Solid Axle Rear Suspension Type, Bolt-On

Incudes a medium-arch rear leaf spring with specially designed 36" radius rods
The lower links have tie rod ends for a "period correct" appearance
The triangulated upper control arms attach to axle with a special bracket
Comes with rear axle housing with new-style "big bearing" housing ends
Rear-end features a 3.78:1 ratio and Wedgelock differential

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	7151801
Rear Suspension Type	Solid Axle
Trailing Arm Style	Radius Rod
Suspension Kit Type	Conversion
Suspension Height Adjustment	Stock Height

See more specs

Need To Know

Made to Order

This custom item will ship when completed

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 7151801 Details

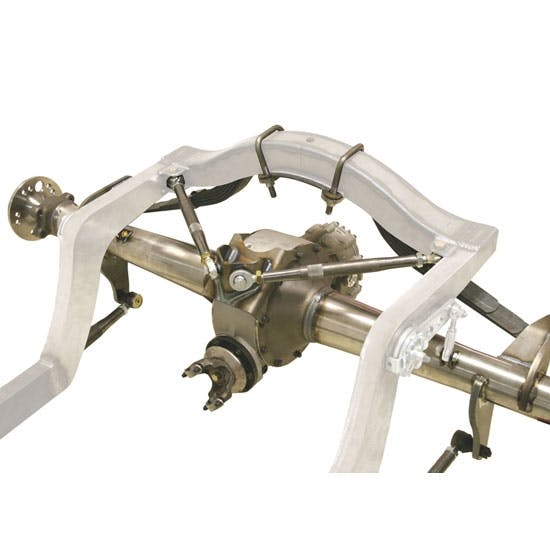

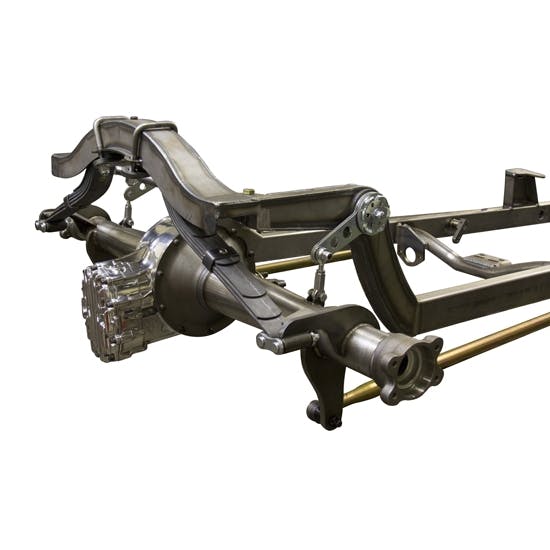

Finish off your Tribute T-bucket kit with this specifically-engineered rear axle and suspension kit. To accommodate the centered-pinion Winters Nostalgia V8 Quick Change rear axle, the Tribute T frame features an extra-high rear kick-up and Model A rear crossmember. All suspension mounting brackets (both frame and axle) are fully welded, making this rear axle option a complete bolt-on addition to the Tribute T.

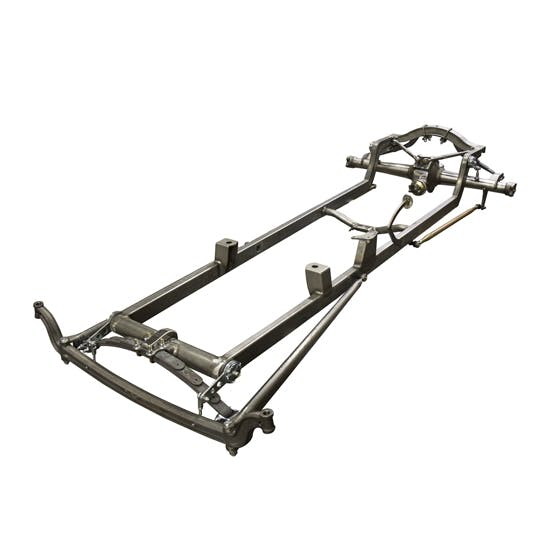

Bolt-on option for Tribute T-bucket kit 7151800
Medium-arch rear leaf spring with specially designed 36" radius rods
Lower links have tie rod ends for a "period correct" appearance
Triangulated upper control arms attach to axle with a special bracket
Includes rear axle housing with new-style "big bearing" housing ends
Rearend has a 2-1/2" axle flange/brake offset
Rearend features a 3.78:1 ratio and Wedgelock differential
Accepts common 6-spline quick change gears (not included)
Axle flanges drilled for 5 on 4-1/2" and 5 on 4-3/4" wheel bolt patterns

No special handling fees. No extra crating charges.

Guides & Documents

Leaf Spring Shackles Technical Information (91033324)

Front Spring Choices for Traditional Straight Axle Hot Rods

Speedway Motors 7151801 Specifications

KEY SPECS
MFG. Part #	7151801
Brand	Speedway Motors
Rear Suspension Type	Solid Axle
Trailing Arm Style	Radius Rod
Suspension Kit Type	Conversion
Suspension Height Adjustment	Stock Height
Spring Type	Leaf Spring
Shocks Included	No
Bolt-On	Yes
Axle Housing Included	Yes
Material Type	Steel

GENERAL
Sold in Quantity	Kit
Notes	Winters quick change rear end. Includes shock eyes, swedge tubes, rod ends, leaf spring, u bolts, and bump stops.
Finish	Natural

Ratings & Reviews

Be the first to write a review.

Questions & Answers

7 Questions • 7 Answers

Sort Questions

Is the Q/C FRONT MOUNT available for purchase separately?

by Bill Hilly

• 8 years ago

1 answer

View Answer

What is the spring perch distance center to center? Axle to axle flange width?

by giuseppe

• 10 years ago

1 answer

View Answer

Will this kit fit onto all the t bucket frames you sell, or just the tribute t?

by Partly McCloudy

• 11 years ago

1 answer

View Answer

does this kit come with all the internals, like ring and pinion? if so what gearing options are there?

by barryc

• 11 years ago

1 answer

View Answer

Is there a rear disc brake kit that you would recommend for this? Is there a rear disc brake kit that you would recommend for this? Or a drum brake kit?

by MattK6287

• 11 years ago

1 answer

View Answer

Just what is included here? I am starting a traditional looking style T build with a Lincoln V12, looking for this style axle with a frame but the t body has been lengthen 12” and I probable have to add some length forward of the cowl to fit the V12. so I do not believe your Tribute frame will work with out extensive mods.

by WISski

• 14 years ago

1 answer

View Answer

What is the best way to register this T-bucket in my home state (NY) ?

by Vinster

• 15 years ago

1 answer

View Answer

7 of 7 questions shown

Fitment

1923 Ford Model T
