Speedway Stainless Steel 4-Bar Rod Ends, 5/8-18 RH Thread, Polished

#91008051

Speedway Stainless Steel 4-Bar Rod Ends, 5/8-18 RH Thread, Polished

Name: Speedway Stainless Steel 4-Bar Rod Ends, 5/8-18 RH Thread, Polished
Brand: Speedway Motors
SKU: 91008051
Rating: 4.8 (34 reviews)

34 Reviews

5 Questions

These rod ends are made from fully polished investment cast stainless steel for superior strength and durability
5/8"-18 RH threaded shank allows for length adjustment of your bar assemblies
Polyurethane bushing with 1/2" ID steel sleeve stiffens the suspension link while also absorbing road vibrations for a smooth and comfortable ride

Material / Finish:

Stainless Steel / Polished

Steel / Zinc

Thread Type:

Right Hand

Left Hand

Style:

Select a style

Starting from

$32.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, RH Male Thread Type, Stainless Steel

These rod ends are made from fully polished investment cast stainless steel for superior strength and durability
5/8"-18 RH threaded shank allows for length adjustment of your bar assemblies
Polyurethane bushing with 1/2" ID steel sleeve stiffens the suspension link while also absorbing road vibrations for a smooth and comfortable ride
Beautifully polished stainless steel finish looks perfect on any show car or hot rod
Available in straight, 7 degree, or 10 degree shank which make these perfect for fabricating 4 bar suspensions

See more details

Key Specs

Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Stainless Steel
Hole Diameter	0.5"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

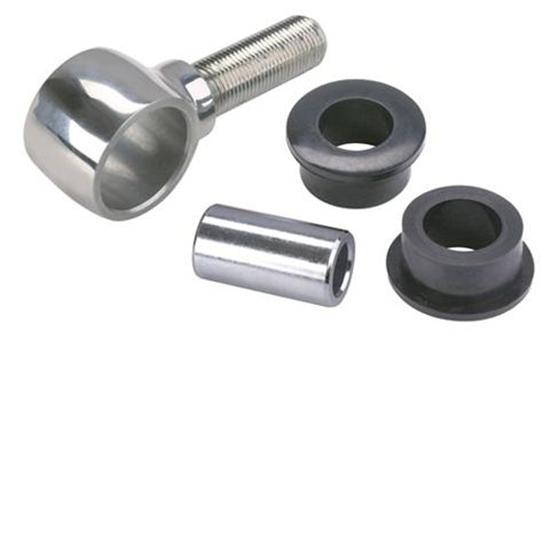

Don't settle for a weak 4-bar end made out of a piece of tubing welded to a bolt. These Speedway rod ends are made from fully polished investment cast stainless steel for superior strength and durability. All rod ends feature a 5/8"-18 RH threaded shank and the polyurethane bushing has a steel sleeve that accepts a 1/2" bolt.

Rod ends come in three different configurations:

Straight Shank
- Mounting eye is perpendicular to threaded shank
- 5/8"-18 RH threads
- Center of mounting eye to end of threads is 2-7/8"
7° Shank
- Mounting eye is offset 7° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 7° angle)
- 5/8"-18 RH threads
- Center of mounting eye to end of threads on short side is 2-13/16"
- Center of mounting eye to end of threads on long side is 2-15/16"
11° Shank
- Mounting eye is offset 11° from perpendicular to threaded shank (with the bushing side down, the stud will be angled up at a 11° angle)
- 5/8"-18 RH threads

Choose from straight, 7° or 11° angled shanks.

Specs

Overall width: 1.370"
Rod end width: 1.050"
Rod end I.D.: 1.125"
Steel sleeve O.D.: 0.750"
Steel sleeve I.D.: 0.500"
Threaded shaft length: 1-7/8"

WARNING:

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Specifications

KEY SPECS
MFG. Part #	Select Material / Finish, Thread Type and Style to see
Brand	Speedway Motors
Thread Type	RH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Stainless Steel
Hole Diameter	0.5"
Rod End Style	Solid
Rod End Construction	1-piece
Grease Fitting	No
Finish	Polished
Color	Natural
Bushing Material	Polyurethane
Jam Nut Included	No

GENERAL
Thread Length	1.875"
Rod End Head Width	1.37"
Overall Diameter	1.5"
Sold in Quantity	Each
