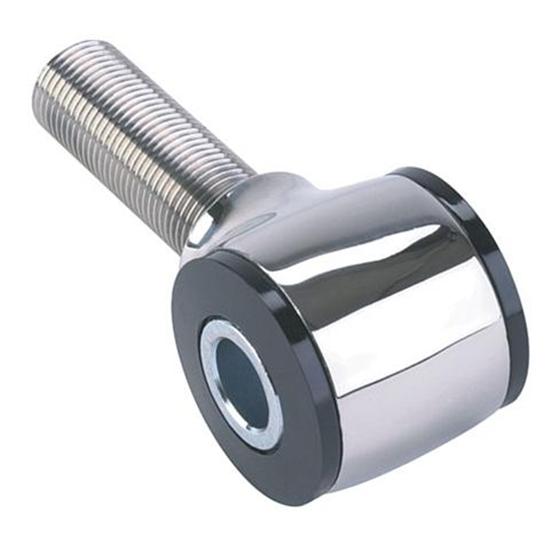

Stainless Steel 4-Bar Rod End, 5/8-18 LH Thread, Polished

#91008052

Stainless Steel 4-Bar Rod End, 5/8-18 LH Thread, Polished

Name: Stainless Steel 4-Bar Rod End, 5/8-18 LH Thread, Polished
Brand: Speedway Motors
SKU: 91008052
Price: 27.99 USD
Availability: InStock
Rating: 5 (11 reviews)

11 Reviews

8 Questions

These rod ends are made from fully polished investment cast stainless steel for superior strength and durability
5/8"-18 LH threaded shank allows for simple length adjustment by spinning the tube when used with RH thread rod end on the opposite side
Polyurethane bushing with 1/2" ID steel sleeve stiffens the suspension link while also absorbing road vibrations for a smooth and comfortable ride

Material / Finish:

Stainless Steel / Polished

Steel / Zinc

Thread Type:

Left Hand

Right Hand

$27.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, LH Male Thread Type, Stainless Steel

These rod ends are made from fully polished investment cast stainless steel for superior strength and durability
5/8"-18 LH threaded shank allows for simple length adjustment by spinning the tube when used with RH thread rod end on the opposite side
Polyurethane bushing with 1/2" ID steel sleeve stiffens the suspension link while also absorbing road vibrations for a smooth and comfortable ride
Beautifully polished stainless steel finish looks perfect on any show car or hot rod
Mounting eye is perpendicular to threaded shank (straight style rod end)

See more details

Key Specs

Thread Type	LH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Stainless Steel
Hole Diameter	0.5"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91008052 Details

Don't settle for a weak 4-bar end made out of a piece of tubing welded to a bolt. These Speedway rod ends are made from fully polished investment cast stainless steel for superior strength and durability. Features a 5/8"-18 LH threaded shank and the polyurethane bushing has a steel sleeve that accepts a 1/2" bolt.

Reverse, left hand threads
Mounting eye is perpendicular to threaded shank
Center of mounting eye to end of threads is 2-7/8"
Overall width: 1.370"
Rod end width: 1.050"
Rod end I.D.: 1.125"
Steel sleeve O.D.: 0.750"
Steel sleeve I.D.: 0.500"
Threaded shaft length: 1-7/8"

Specs

Suggested replacement part 91008015

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91008052 Specifications

KEY SPECS
MFG. Part #	91008052
Brand	Speedway Motors
Thread Type	LH Male
Rod End Attachment	Male Threads/Eyelet
Thread Pitch	5/8"-18
Material Type	Stainless Steel
Hole Diameter	0.5"
Rod End Style	Solid
Rod End Construction	1-piece
Grease Fitting	No
Finish	Polished
Color	Natural
Bushing Material	Polyurethane
Jam Nut Included	No

GENERAL
Thread Length	1.910"
Rod End Head Width	1.37"
Overall Length	3.60"
Overall Diameter	1.5"
Center Hole to End of Shank	2.875"
Sold in Quantity	Each

Ratings & Reviews

11 Reviews

Overall Assessment

Customers overwhelmingly praised the quality and practicality of our product. It has been endorsed as a perfect fit for intricate projects, being exactly what many users needed. The rod ends' ability to resist twisting while fine-tuning designs is a noted quality. Many have positively compared them against competitors, stating that the ride quality significantly improved after swapping out hemi joints for our product. Used in a variety of applications from car suspensions, custom rod decor, to marine frames, the rod ends proved versatile and effective. Customers found this product meets their high standards while being cost-effective, underlining its value.

Write A Review

11 reviews

Filter by Ratings

Sort Reviews

This product is perfect made !

5.0

6 months ago

Ban

Norway

Verified

Use it as a 4 link end on my 32 mod Ford Hot rodFast delivery

Would Recommend

Fit perfectly

5.0

5 years ago

Matt

Corona, CA

Verified

It was exactly what I needed

Would Recommend

Gladiator 33 Speedstar

5.0

5 years ago

Gladiator

Verified

This product has great quality.

Exactly what I expected.

5.0

7 years ago

Jerry

Woodinville, WA

Verified

I'm using these in an application where others are using Heim type rod ends in the trailing arms in the rear suspension of a lightweight car (Lotus 7 replica with a 1500 lb target weight and a two litre roughly 180 HP four-banger). I got these because they won't tend to twist when I fine tune the trailing arm lengths. They are nicely made and are exactly what I expected to receive.

Would Recommend

Speedway Stainless Steel 4-Bar Rod End, 5/8-18 LH Thread,

5.0

8 years ago

Badbowtie

Canada

Verified

great part show car quality on all 8 that I received. replaced all the hemi joints with these and the ride quality improved 100% nice smooth ride now. I would recommend these to anyone looking for rod ends

Great Products

5.0

9 years ago

Rick

New Braunfels, TX

Verified

Great replacement for my bent four bar unit.

Would Recommend

4Bar rod end

5.0

10 years ago

Willys

Quebec Canada

Verified

Great product

Would Recommend

stainless 4-bar rod end.

5.0

10 years ago

ken

trenton, ga.

Verified

these rod ends look great on my custom rod.

Would Recommend

Perfect!

5.0

10 years ago

Thudly

Clanton Al

Verified

These were perfect for the project we were fabricating! We are using them in a marine application for a frame that holds up a engine room floor. Wish there were more sizes available but this worked fine.

Would Recommend

Great product

5.0

12 years ago

Eyesie

New Zealand

Verified

Great product These are going to enhance the underside of my Hot rod Using these for a panhard bar on my 48 chev 3100 Very happy with the product

Would Recommend

Load More Reviews

Showing 10 of 11 reviews

Questions & Answers

8 Questions • 8 Answers

Sort Questions

What is the length of the steel sleeve? What is the material the bushings are made of?

by matt

• 9 years ago

1 answer

View Answer

Do these comes with the weld bungs for the pipe? If they do what are the dimensions? Come with Jamb Nuts?

by Charlie

• 10 years ago

1 answer

View Answer

Whats the distance from the center of the bolt hole to the tip of the threaded end? Also Whats the wall thickness of the stainless barrel?

by Tom

• 11 years ago

1 answer

View Answer

could these be used with hairpin radius rods in a rear application?

by 270 hemi

• 11 years ago

1 answer

View Answer

can these be used to mount rear radius rods to frame and rearend?

by trod

• 11 years ago

1 answer

View Answer

Does the LH thread come in straight only? Looking for a LH and a RH both at 11 degrees?

by Selwyn

• 11 years ago

1 answer

View Answer

How much do each of these weigh? Can you tell me the weight of these?

by RecumbentRon

• 12 years ago

1 answer

View Answer

What's the dimension across the face of the tube that goes through the rubber bushing.

by bassman

• 15 years ago

1 answer

View Answer

8 of 8 questions shown
