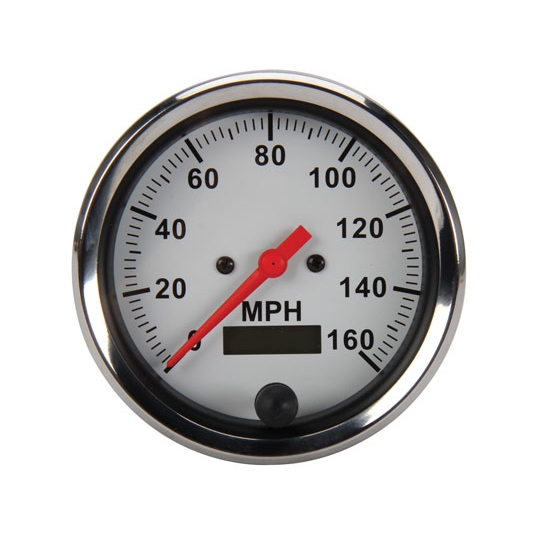

Speedway Speedometer Gauge, White Face, 3-3/8, Electric
Speedway Speedometer Gauge, White Face, 3-3/8, Electric
Universal Fit, 3.75" Overall Diameter, 3.34" Body Diameter, Electric Gauge Type, Lighted, White
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Speedway Speedometer Gauge, White Face, 3-3/8, Electric
X
Part # 91065051
$79.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Perfect for any street rod or race car
- Features a white face with bold black lettering and a bright orange needle for quick monitoring
- Speedometer will work with either a 16 or an 8 ppm sender
- 0-160 MPH gauge measurement
- Includes installation kit, sender not included
Details
MFG. Part #:
91065051
Overall Diameter:
3.75"
Body Diameter:
3.34"
Body Length:
1.60"
Depth:
2.60"
Center to Center:
2.70"
Stud Length:
.80"
Stud Diameter:
.19"
Gauge Type:
Electric
Gauge Sweep:
Full Sweep
Gauge Range:
0-160 MPH gauge measurement range.
Lighted:
Yes
Gauge Face Color:
White
Lettering Color:
Black
Needle Color:
Orange
Bezel Finish:
Stainless
Color:
White
Sold in Quantity:
Each
Notes:
Sender NOT included.
Info
These electric speedometers are perfect for your rod or race project. They feature a white face with bold black lettering and a bright orange needle for quick monitoring. Our 0-160 mph speedometers also come with a stainless steel bezel and a complete installation kit. This speedometer will work with either a 16 or an 8 ppm sender. There are two calibration modes, the first of which asks you to drive a measured mile and the speedometer will detect the frequency of the sender. The other mode allows you to enter the pulses per mile of your sender.
- 3-3/8” body diameter
- 3-3/4 ” bezel
- Overall Diameter: 3-3/4"
- Body Length: 1.60"
- Stud Length: 1.00"
- Backlit white face with black lettering
- Orange needle
- Electric
- 0-160 mph range
- Stainless steel bezel
- Includes installation kit
- Compatible with almost any sender EXCEPT the Sky Driver GPS signal generator by Classic Instruments
- SENDER NOT Included
- Replacement light socket assembly available # 910-65075
Notes
It is suggested to wire the speedometer with independent power and ground wires to avoid possible interference when wired with other guages.Charts
