Product Summary

Chevy Small Block V8, Crossover Header Tube Type, Raw

  • 1-3/4 Inch primaries for Small Block Chevy
  • Not 180 degree header
  • Standard port
  • Includes gaskets and header bolts
  • Kickout are premium raw steel construction that is mandrel bent and professionally cut.

Comes as a Kit

Key Specs

BrandSpeedway Motors
Header Tube TypeCrossover
FinishRaw
Material TypeSteel

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Speedway small block Chevy crossover headers (not a 180° header).

  • 1-3/4" primaries
  • 3-1/2" collector
  • Standard port
  • Bare steel finish
  • Includes gaskets and header bolts
  • Mild steel mandrel bent exhaust kickouts



Kit Includes:

(1) Speedway Small Block Chevy Crossover Headers, Raw Finish

(1) Speedway Turn-Down/Kickout Tail Pipe Tips, 3-1/2 x 10 Inch, Pair

Charts

Specifications

KEY SPECS
BrandSpeedway Motors
Header Tube TypeCrossover
FinishRaw
Material TypeSteel
GENERAL
Flange StyleStandard
Primary Tube Diameter1-3/4"
ColorNatural
Weld-UpNo
Exhaust Port ShapeRectangle
Collector Diameter3-1/2"
Collector Length8.00"
Flange Thickness.31"
Port Height1.75"
Port Width1.38"

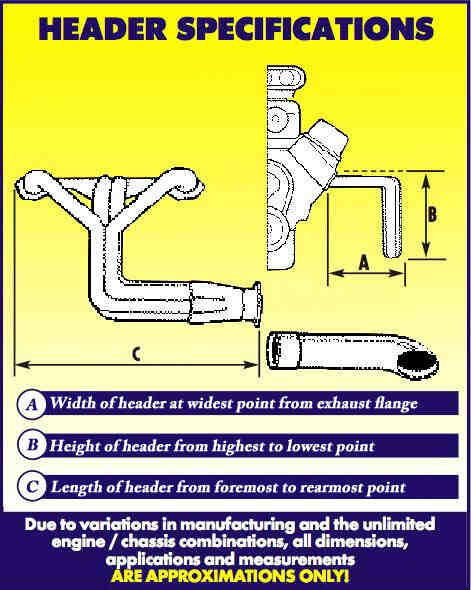

Drivers Side Dimension A6.30"
Drivers Side Dimension B7.00"
Drivers Side Dimension C33.75"
Passenger Side Dimension A7.00"
Passenger Side Dimension B9.30"
Passenger Side Dimension C41.00"
Hardware IncludedYes
Gasket(s) IncludedYes
Sold in QuantityKit
