Speedway Motors Water Bypass Kit, 1 Inch, AN6, Small Block Chevy

• 1-inch riser includes two 3/8-NPT threaded ports for coolant lines
• Can be used with thermostat housing or block off plate
• CNC machined from 6061-T6511 aluminum bar stock
• O-ring sealed base for leak free installation
• Designed to be used on Edelbrock’s Victor Series 2-piece LS water pump

Keep Your LS Engine Cool Lap After Lap with A Two Port Water Neck Riser

GM’s LS engine family has become a popular engine for circle track racing these days. While the LS is the undisputed swap king on the street, when it comes to surviving lap after lap most racers have updated their LS race engine to use the popular Edelbrock Victor Series two-piece LS water pump. This water pump is popular due to the relocated traditional small block Chevy thermostat design, which places the thermostat at the top of the pump, like the location on the intake manifold of a small block Chevy. This is done for several reasons. One, the LS engine family is reverse cooled, meaning that the thermostat is the “gate keeper” for the radiator cooled coolant to enter the engine. Whereas a traditional small block Chevy thermostat controls the release of the hot engine coolant back to the radiator for cooling. It also eliminates the need for the standard degas tank design that the LS engine uses, reducing engine compartment clutter and simplifying the cooling system circuit.

With the Edelbrock Victor Pro Series water pump installed you can use normal small block Chevy thermostats or restrictor plates with a standard thermostat housing for high performance street use. But more importantly for racing, you can add a riser to the thermostat mounting pad to provide a connection point for two or more coolant lines that are traditionally routed to the rear of the intake manifold or cylinder heads to prevent steam pockets and even out coolant temperatures from front to rear on the engine.

Our two port risers are machined from 6061-T6511 aluminum bar stock, accept standard thermostats or restrictors, or can be blocked off completely with our matching block off plate. It seals to the water pump’s housing with an O-ring gasket for easy removal/maintenance. The two ports are tapped to 3/8-NPT and will accept the typical AN to NPT fittings to connect your cooling lines. We also offer a 4-port riser with 1/2-NPT ports if you need a riser with larger flowing ports for direct connection to your radiator versus using a traditional upper hose, as in sprint car applications.

These straight flare adaptors connect 1/8" pipe to straight -3 AN fittings. They are lightweight aluminum and feature a 37° sealing angle. Order your desired size.

• Precision machined to ensure precise thread engagement
• Lightweight aluminum fitting
• -3 AN to 1/8" aluminum pipe
• 37° sealing angle guarantees a positive seal at maximum operating pressures
• Available in Blue anodized finish for a custom look

Black socketless push-on hose end fittings will give your engine compartment the look you are after. Straight fittings in multiple sizes. For use with 37 degree flared ends.

• -6 AN female to push-on hose barb adapter
• Straight style fuel line hose connector
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Available in a Black anodized finish

Black socketless push-on hose end fittings will give your engine compartment the look you are after. 90 degree fittings in multiple sizes.  For use with 37 degree flared ends.

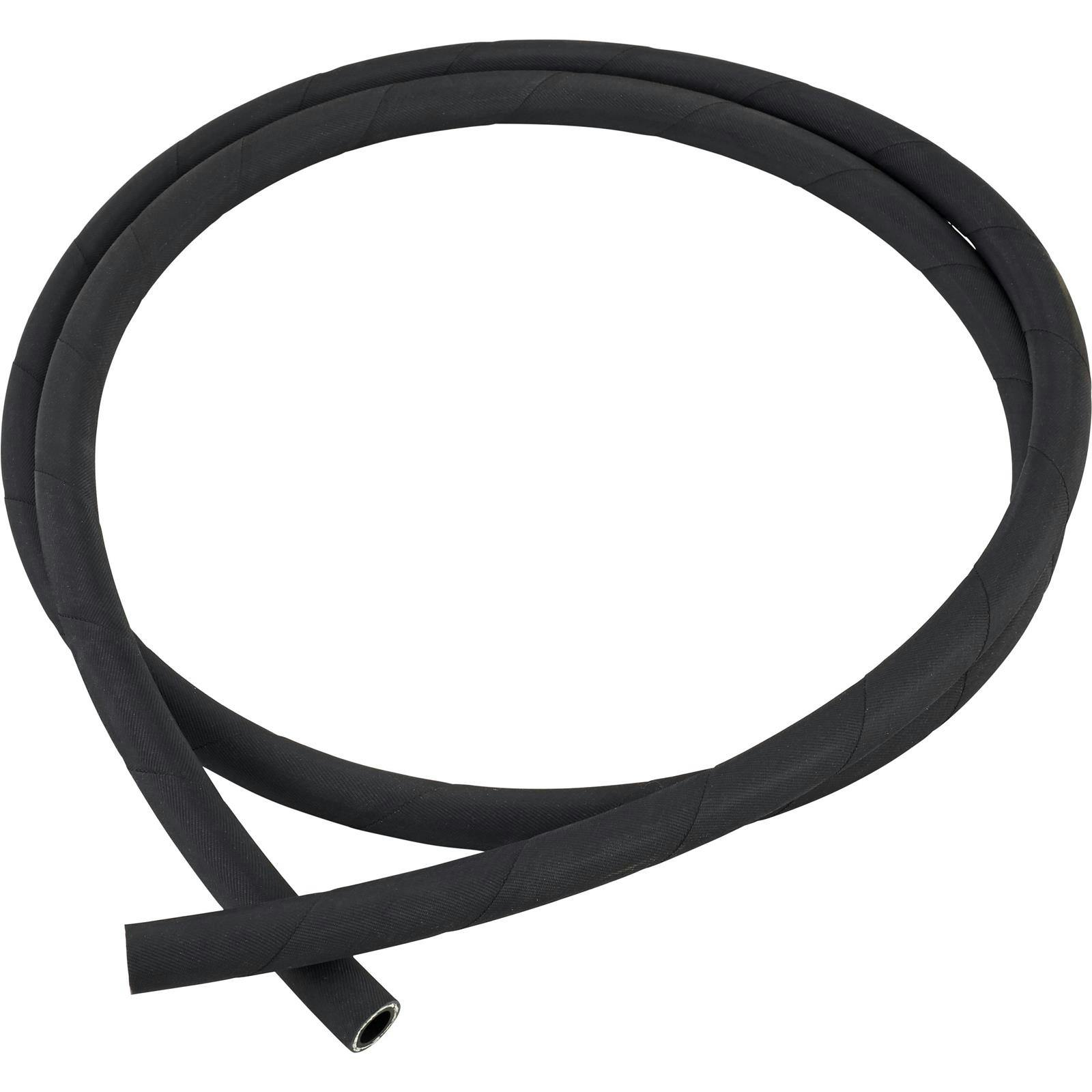

• Textile braid reinforcement
• Low pressure design for use with socketless reuseable fittings only
• No hose clamp necessary
• Ideal hose for fuel line applications
• 50,000 ft of hose in stock!

  Construction: AQP elastomer tube, textile braid reinforcement, black AQP elastomer cover.

  Application: For gasoline, fuel and lubricating oils, air and water. Not recommended for hydraulic impulse applications and is not approved for air brake, hydraulic brake or power steering applications.

  Operating Range: Max Operating pressure: 250 PSI. Minimum burst pressure: 1000 PSI. Operating Temperature Range -40°F to 300°F. Air not to exceed +250°F and water not to exceed +180°F. Reduced pressure operation allows for temperatures up to 300°F.

Fits all GM V8s, V6s, and small-block Fords. Three aluminum water outlet restrictor plates with 5/8", 3/4" and 1" diameter holes.

Use gasket for a perfect seal. Small Block Chevy (SBC) thermostat gasket. Works with 910-15703.
