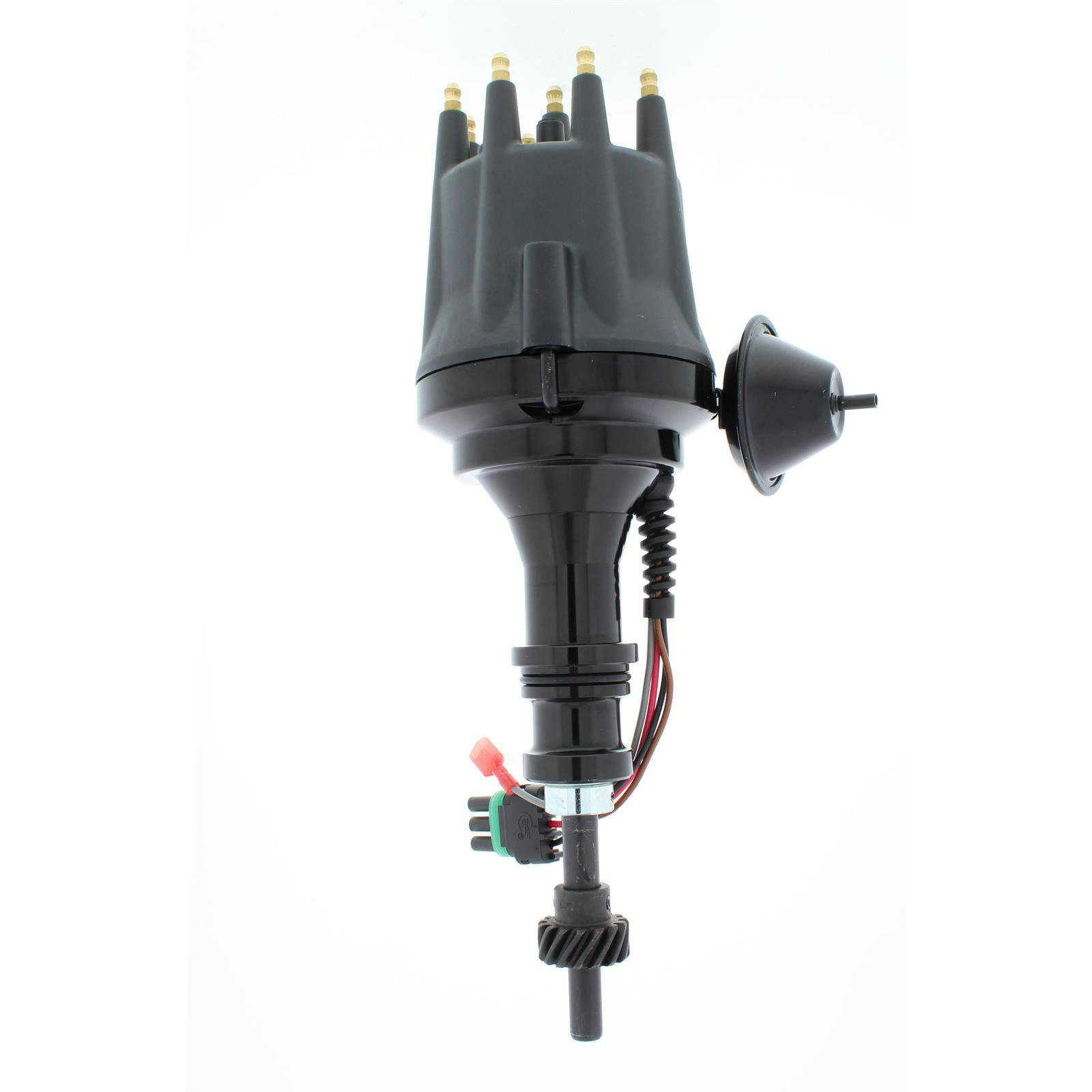

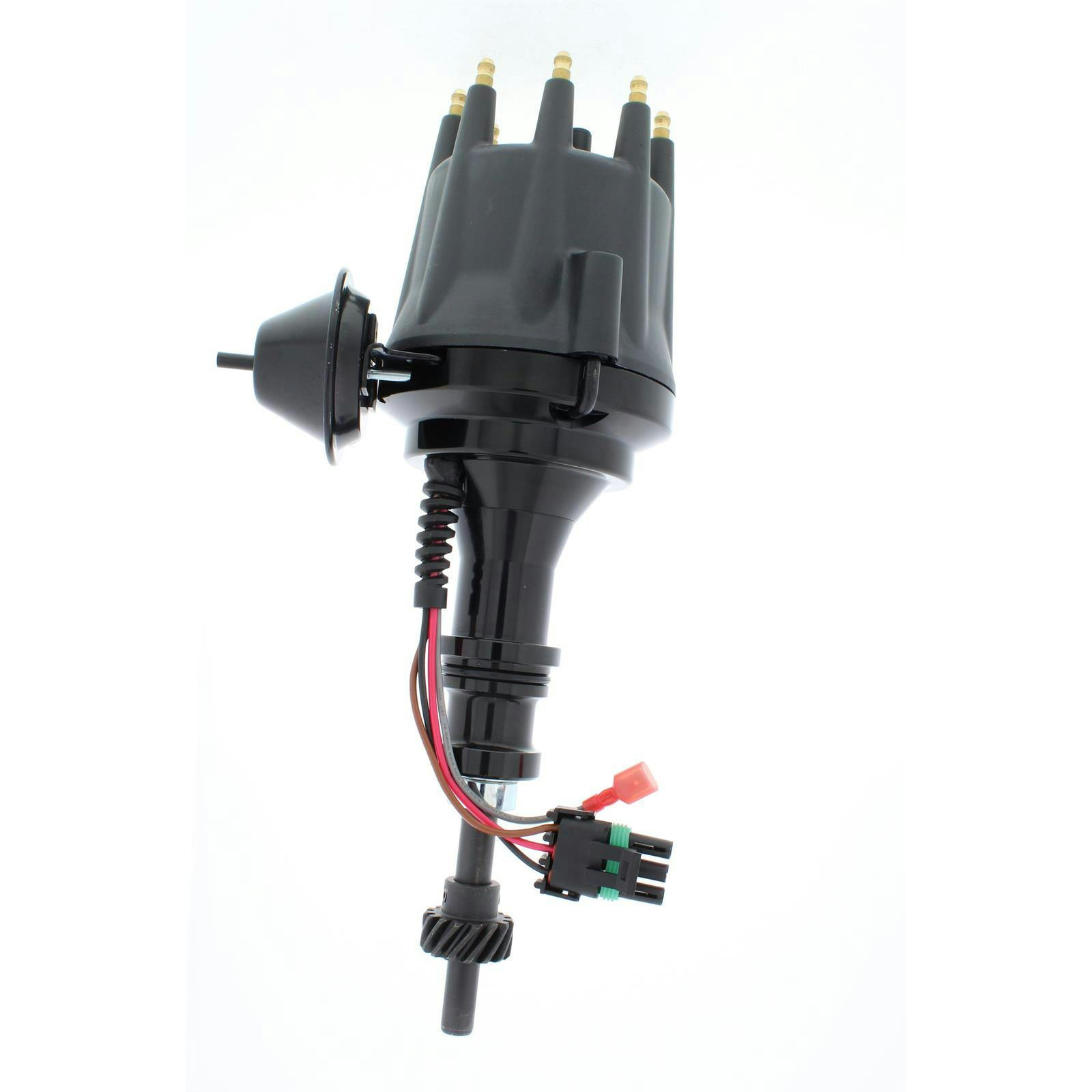

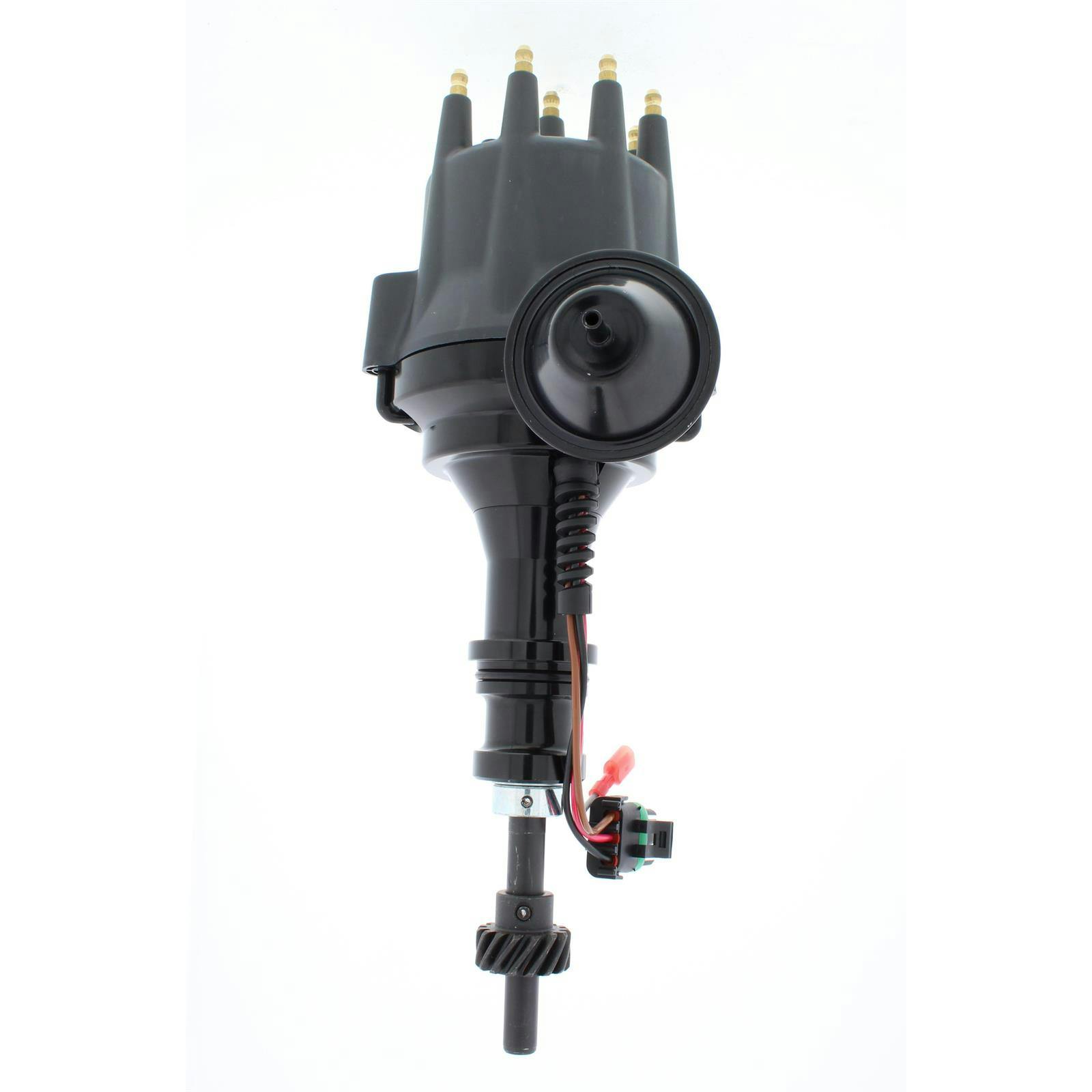

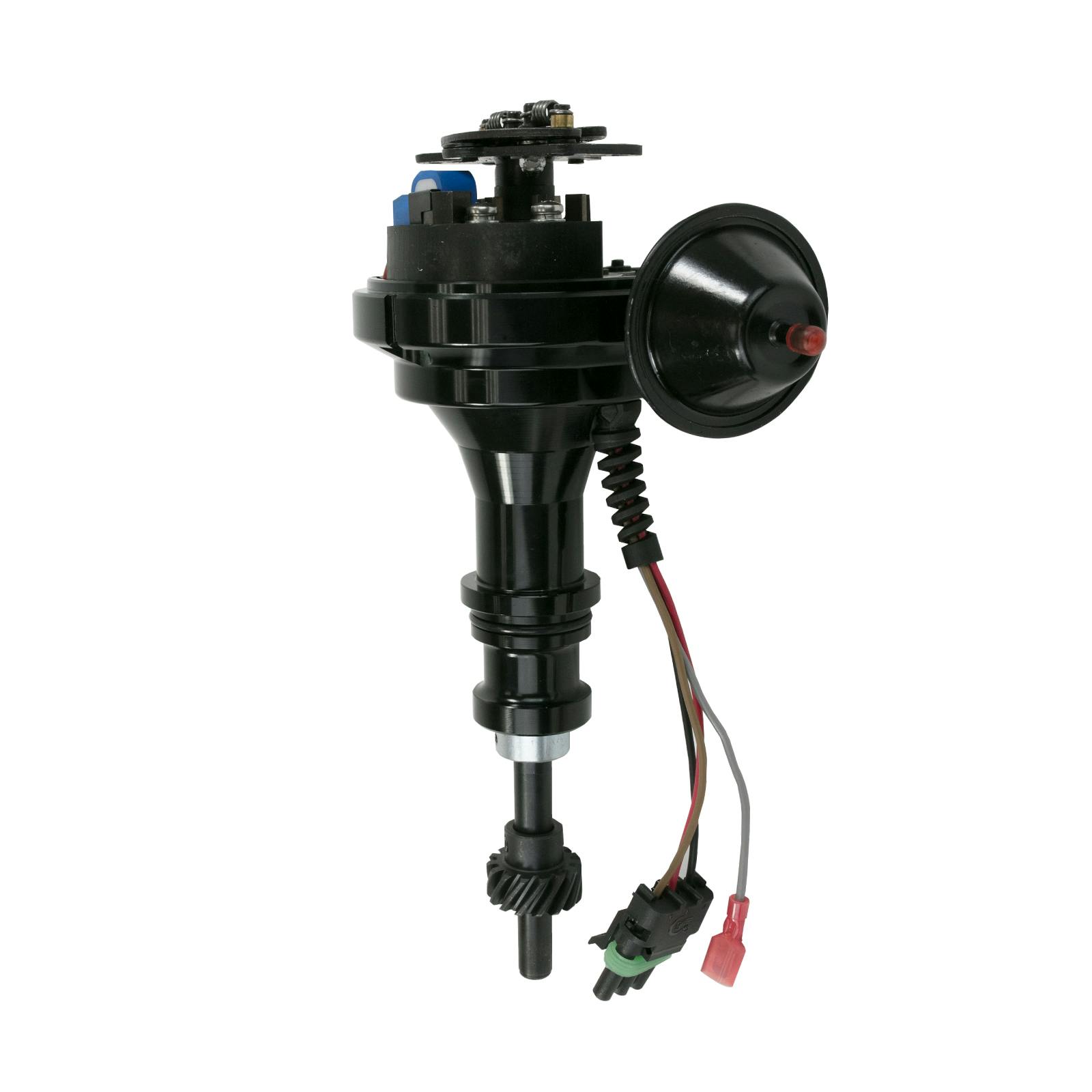

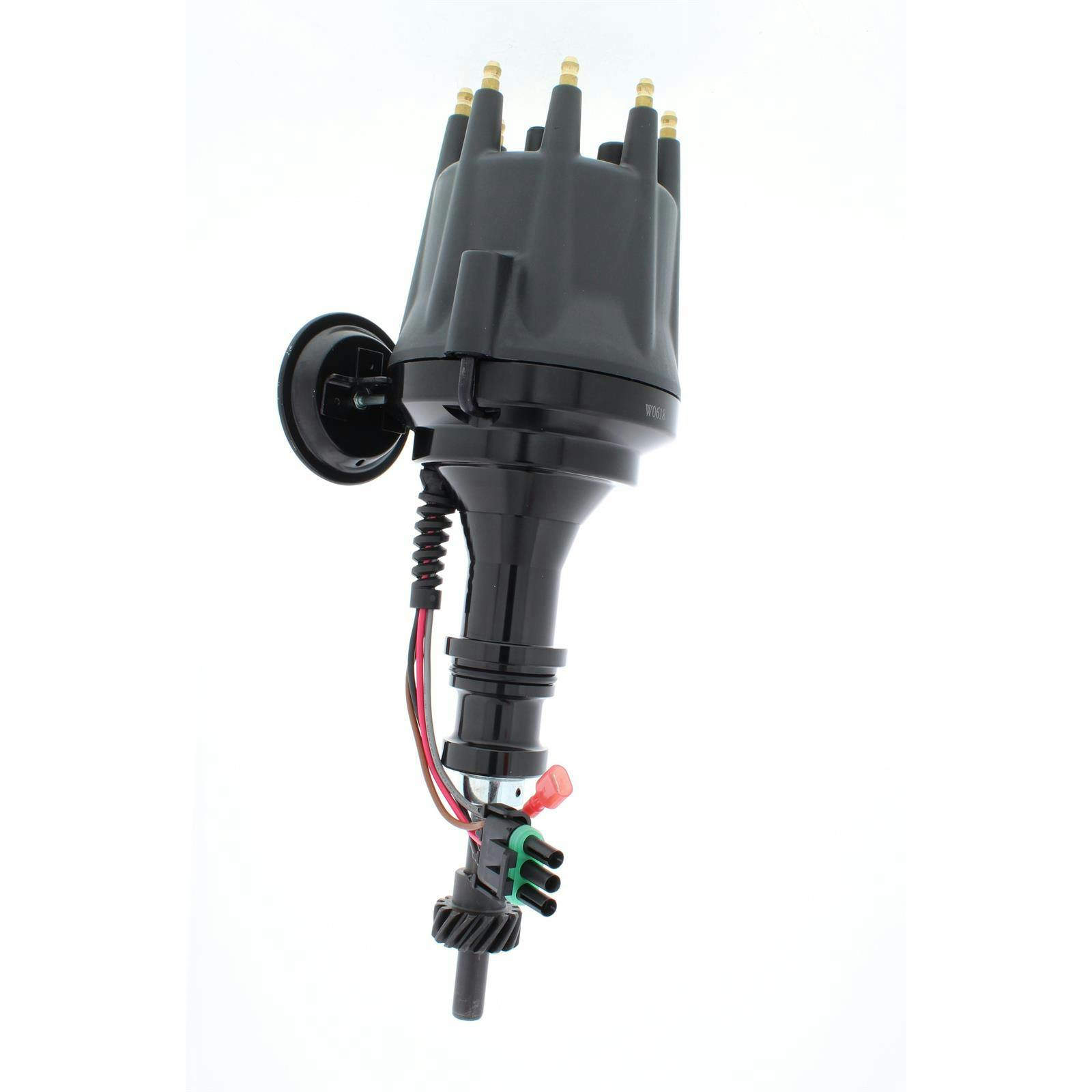

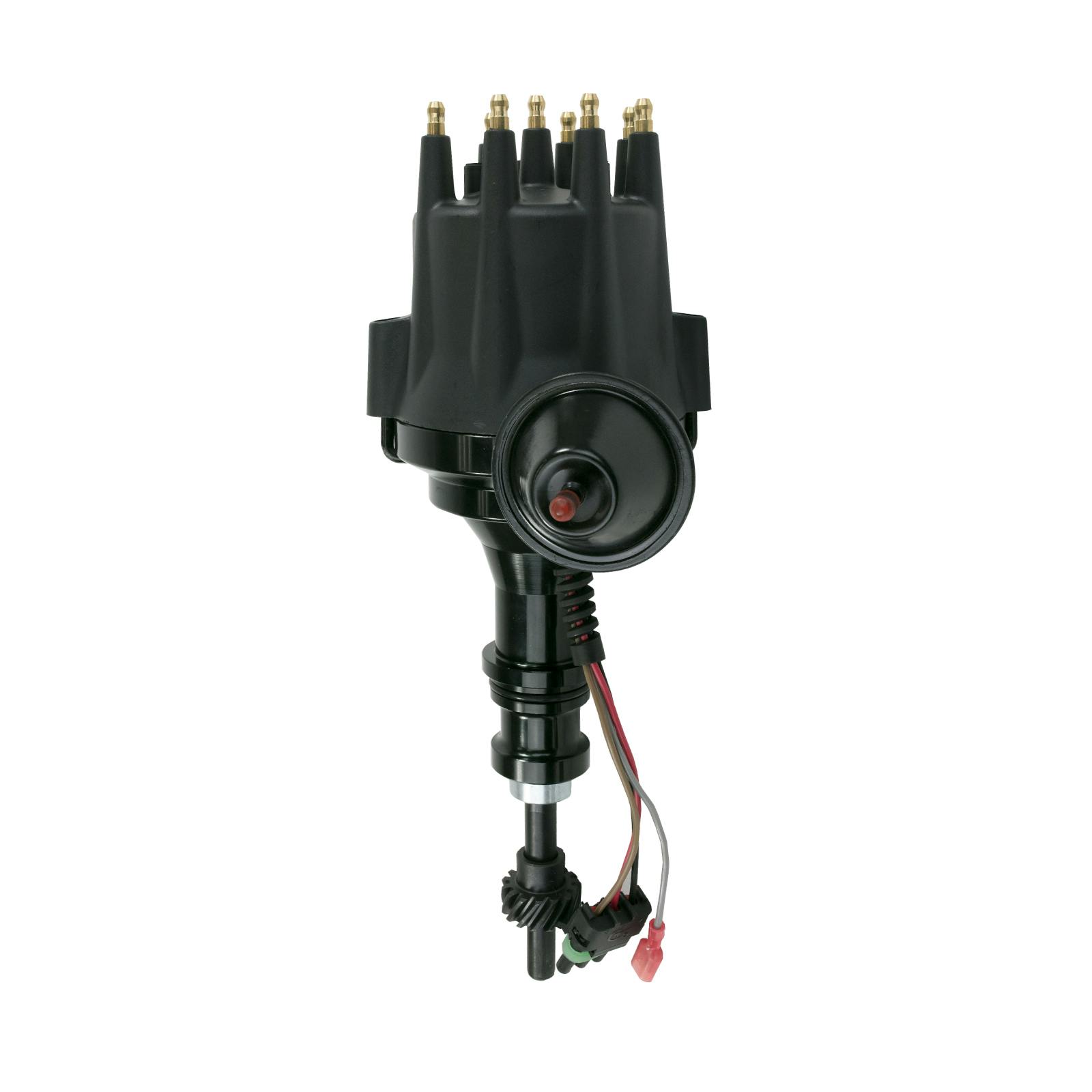

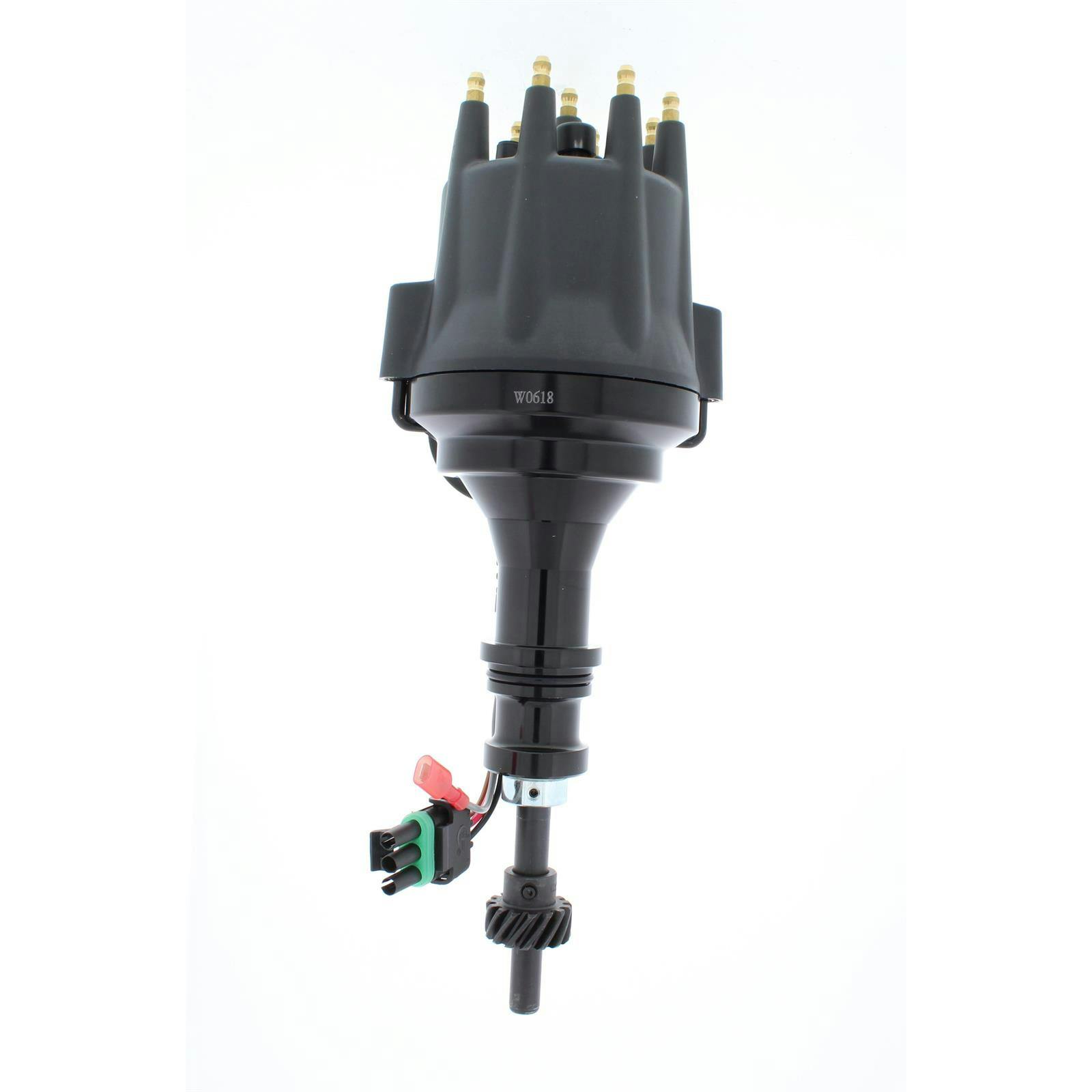

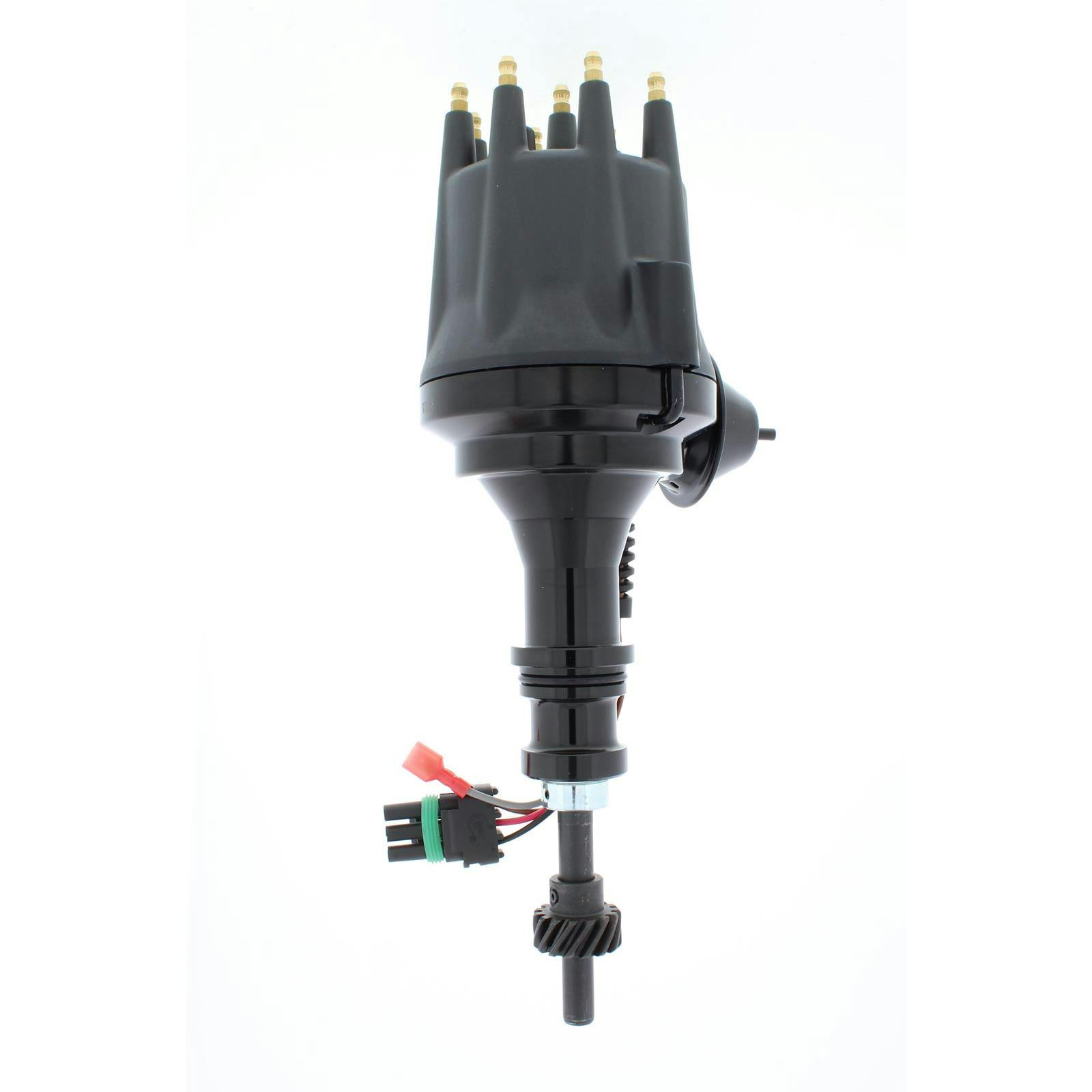

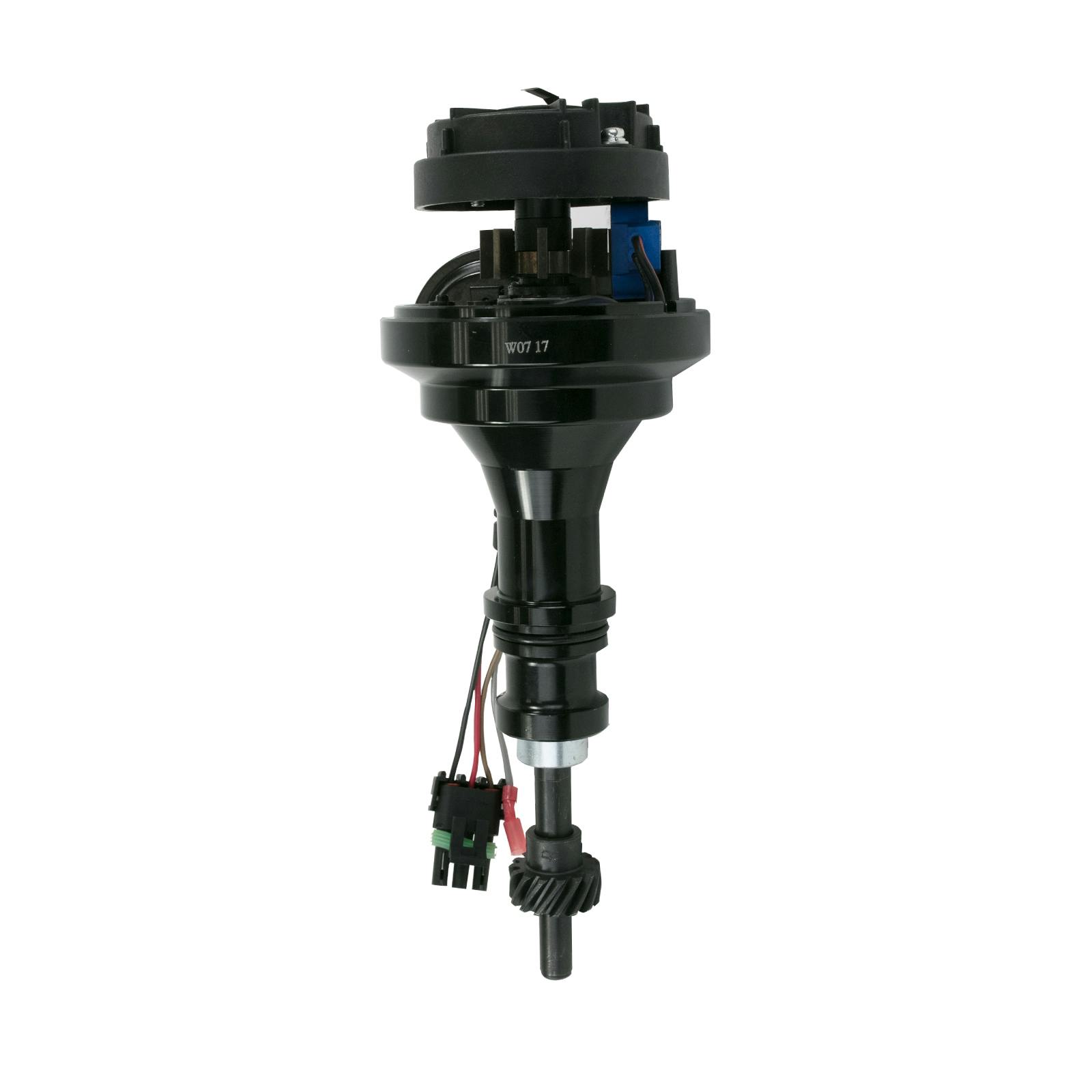

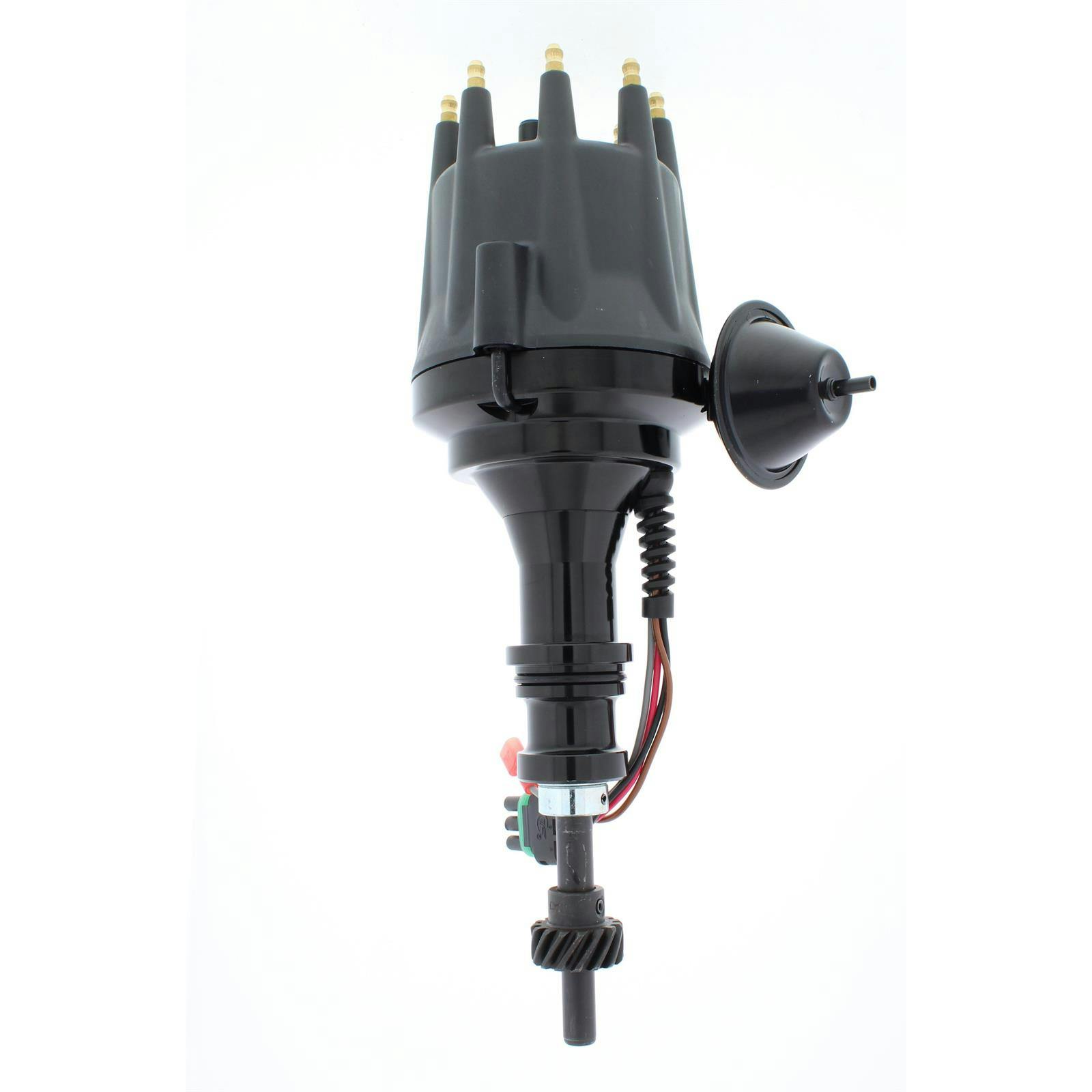

Speedway Motors Ready to Run Pro Billet Distributor, Ford 289/302

Speedway Motors Pro Series Ready to Run Distributor is perfect for a street performance ignition upgrade. It features a CNC-machined billet aluminum body and hardened steel shaft and gear, with a sealed ball bearing on top and a sintered steel bushing on the bottom. It also comes with a fully adjustable mechanical advance, vacuum advance, magnetic pickup trigger, and a high-output circuit board module with digital tach output. The dielectric cap comes with solid brass terminals and a color-matched wire retainer.

An important feature on all Speedway Motors Pro Series distributors is the fully adjustable mechanical advance. This allows you to easily modify the distributor to achieve a variety of timing curves. Included with all Pro Series distributors are four bushings of varied size. The bushing determines the mechanical advance the distributor can achieve. Also included are six springs, with two at each level of tension. The springs control the rate at which the distributor reaches the advance.

What separates a Ready to Run from a Pro Billet is the top-of-the-line internal ignition module. Build using the latest circuit board technology, this module eliminates the need for external ignition control, such as a CDI box. It also comes with a digital tachometer output. With a Pro Series Ready to Run distributor, just hook up your ignition coil, and you're good to go.

Includes:

• 3 Bushings and 4 Springs for Mechanical Advance
• Color-Matched Spark Plug Wire Retainer with Screws
• Vacuum Advance Block-off Plate (Black)
• Power Extension Cable
• Tachometer Output Extension Cable

(JPEG)

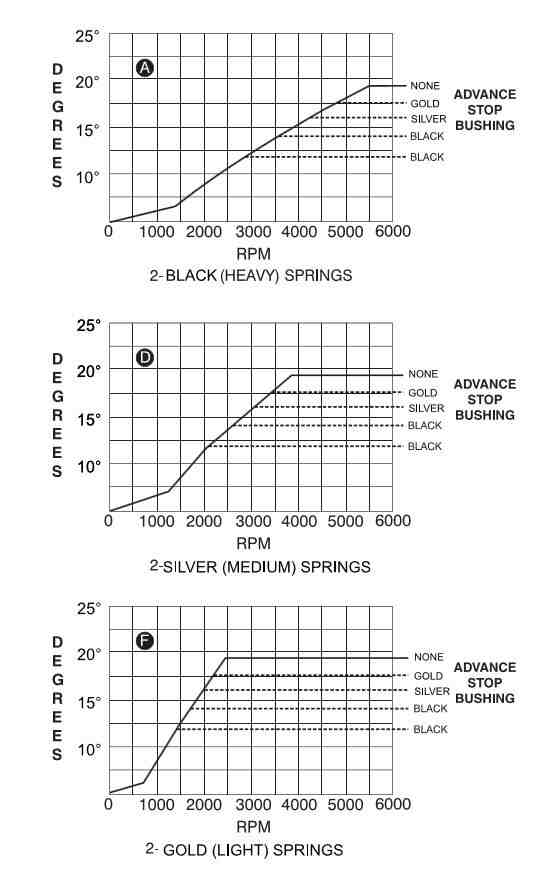

Advancement Distributor Chart (JPEG)

Advancement Distributor Chart (JPG)
