11 Inch Clutch Kit For GM LS Engines, 10 Spline, Up To 500 HP
11 Inch Clutch Kit For GM LS Engines, 10 Spline, Up To 500 HP
Speedway Motors

|

#89004505

11 Inch Clutch Kit For GM LS Engines, 10 Spline, Up To 500 HP

$368.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit, 11" Diameter, Full face Disc Style

    See more details

    Key Specs

    MFG. Part #89004505
    BrandSpeedway Motors
    Diameter11"
    Disc StyleFull face
    Hub StyleSprung
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Speedway Motors 89004505 Details

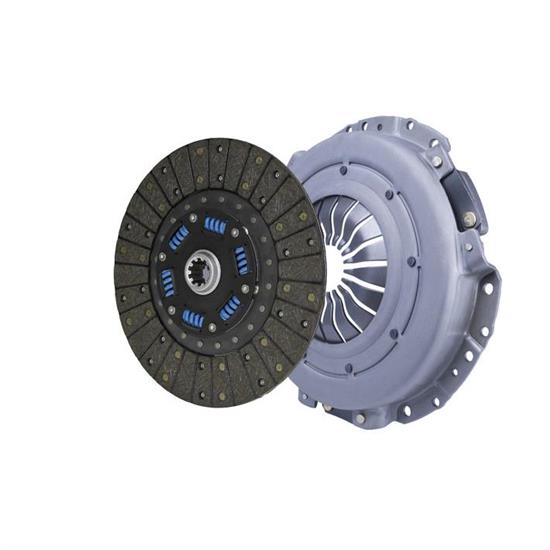

    The Speedway Motors 11 Inch GM LS engine Clutch Kit uses a matched pressure plate with a high-torque heavy-duty steel back friction disc. The advanced steel back friction material provides additional clamping force and superior burst strength. The reinforced steel backing allows for better heat dissipation delivering extended wear and quick recovery. The Speedway Motors clutch's high-torque discs are assembled with precision engineered components. Each disc uses a thicker retainer stamping and increased hardness hub to ensure maximum strength and reliability. Six inner and six outer heavy duty torsional dampening springs work with this assembly to minimize the shock of engagement. The Speedway Motors 11 Inch GM LS engine Clutch Kit is designed for stock applications or those with mild power increases.

    • For use in application of up to 500 HP
    • Complete kit includes pressure plate, clutch disc, pilot bushing, and alignment tool
    • Features HD steel backed clutch disc
    • Bolts directly to LS 11 inch flywheel
    • Works with popular GM 4 speed transmissions featuring 10 spline 1-1/8" input shafts

    Speedway Motors 89004505 Specifications

    KEY SPECS
    MFG. Part #89004505
    BrandSpeedway Motors
    Diameter11"
    Disc StyleFull face
    Hub StyleSprung
    GENERAL
    Alignment Tool IncludedYes
    Pilot Bushing IncludedYes
    Sold in QuantityKit
    Max Horsepower Rating500
    Spline Count10
    Shaft Diameter1.125"

    Questions & Answers

    Be the first to ask a question.

    Fitment

    • GM LM4

    • GM LS6

    • GM LS2

    • GM LSA

    • GM LM7

    • GM LQ9

    • 6.2 Chevy LS V8

    • GM LM7

    • GM LQ9

    • 6.2 Chevy LS V8

    • GM LM7

    • GM LQ9

    • 6.2 Chevy LS V8

    • GM L76

    • GM LC9

    • GM LMG

    • GM LY5

    • GM LY5

    • GM LM7

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • GM LS1

    • GM LS3

    • GM LS1

    • GM LS1

    • GM LS6

    • GM LS2

    • GM LS3

    • GM LS4

    • GM LS4

    • 4.8 Chevy LS V8

    • GM LM7

    • 4.8 Chevy LS V8

    • GM L20

    • GM LM7

    • GM LY2

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ9

    • GM LQ4

    • GM LM7

    • GM LQ4

    • GM LQ9

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LS3

    • GM LM4

    • GM LMG

    • GM LY5

    • GM LM7

    • GM L59

    • GM LM7

    • GM LC9

    • GM LMG

    • GM LY5

    • GM LC9

    • GM LMG

    • GM LMG

    • GM LY5

    • GM LQ4

    • GM LMG

    • GM LY5

    • 4.8 Chevy LS V8

    • GM L59

    • GM LM7

    • 4.8 Chevy LS V8

    • GM LMG

    • GM LY5

    • 6.2 Chevy LS V8

    • GM LC9

    • GM LMG

    • GM LC9

    • GM LMG

    • GM LMG

    • GM LY5

    • GM LH6

    • GM LS2

    • GM LM4

    • GM LM4

    • GM LM4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM LM7

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L33

    • GM LQ4

    • GM L20

    • GM LC9

    • GM LMG

    • GM L33

    • GM L59

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • 4.8 Chevy LS V8

    • GM L20

    • GM LM7

    • GM LY2

    • GM LC9

    • GM LMG

    • GM LM7

    • GM L59

    • GM LM7

    • GM LQ4

    • GM LQ4

    • GM LQ4

    • 6.2 Chevy LS V8

    • GM LH8

    • GM LH8

    • GM LS1

    • GM LS3

    • GM LS1

    • GM LS2
