Speedway Micro Sprint Alum. Swedged Radius Rod, 3/4 Inch, 7/16

• Anodized in a sleek satin black finish for that “blacked out” look

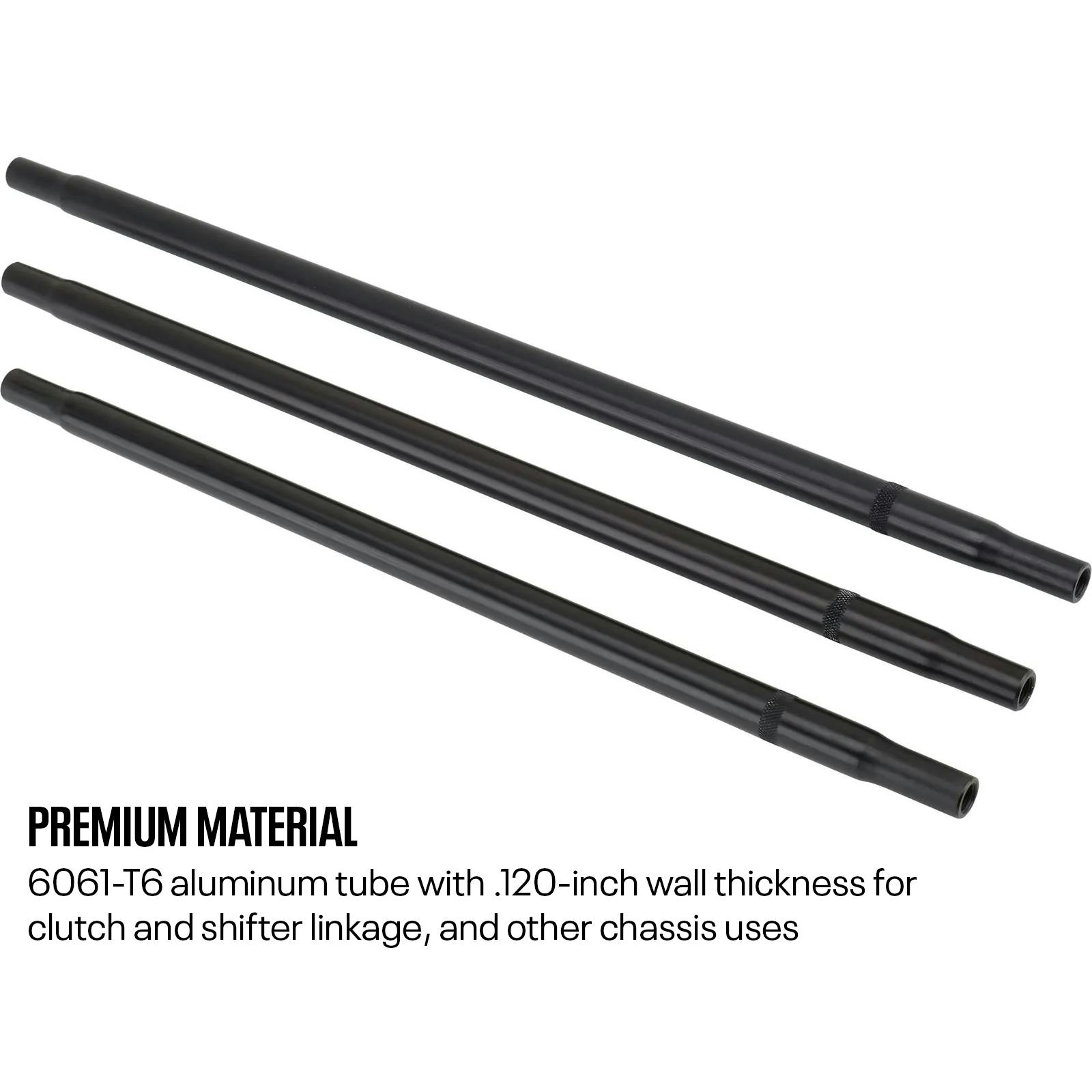

• 6061-T6 aluminum tube with .120-inch wall thickness for clutch and shifter linkage, and other chassis uses
• Suitable for suspension and steering on Micro Sprint, Mini Sprint, and Lightning Sprint
• Ends threaded 7/16-20 LH and RH threads for rod ends or clevises of your choice
• Available in 9 lengths from 18-inches to 21-1/2-inches long, in half-inch increments
• Outside diameter of tube is .750-inch (3/4-inch)
• Thin wall construction with swedged ends offers lighter weight than comparable non-swedged tubes
• Single rotation will adjust the overall length in or out by approximately 7/64-inch
• Knurled surface to aid in rotating the tube to make required adjustments
• Order by actual length measurement required for application

Swedged Tubing Provides Similar Strength with Less Weight

Weight is the enemy of a race car. Any time you can save weight without reducing integrity or creating an unsafe situation you will benefit. Utilizing aluminum tubing for such things as control arms, Panhard bars, steering linkage, and more are all great ways to not only save weight but allow your suspension and steering to react faster to changes in the track surface, which ultimately keeps your race car’s tires in contact with the racing surface for precise throttle, braking, and steering control that can put you in the winner’s circle.

One easy way to save weight is to replace heavy wall steel suspension and steering tubes with thin wall aluminum versions that utilize a swedged end. As aluminum is lighter than steel with similar strength characteristics it is the perfect upgrade to these suspension and steering pieces when sized properly for the application. Weight savings are further realized with the thinner wall dimensions of the aluminum tube versus a comparable steel tube of the same outside diameter. Swedging the ends of the aluminum tubing shrinks the outside diameter down, which thickens the wall of the tubing in the area where threads are created for the heim joint, bushing, or clevis end piece to be installed. This critical area is cold formed, which further strengthens the aluminum tube. Swedged aluminum tubes, on average, are 30 percent lighter than their steel counterparts while meeting the same strength requirements.

Multiple Lengths to Fit Any Race Car Application

We offer these super strong aluminum threaded tubes for your project in a beautiful satin black anodized finish. They are constructed from 6061-T6 aluminum with .120-inch wall thickness and available in 9 different lengths from 18-inches to 21-1/2-inches, in half-inch increments. These black finish aluminum tubes are threaded to accept 7/16-20 rod ends, bushings, or clevises with left-hand and right-hand threads. This allows the adjusting sleeve to be mounted between two points of adjustment, such as your shifter and transmission, among other fitment applications. Rotating the threaded tube moves the threaded ends of your choice inward or outward for adjustment. For the 7/16-20 thread ends these aluminum sleeves utilize this equates to roughly 7/64-inch of adjustment for each full rotation of the hollow threaded tube. This allows for precise adjustment of your suspension arms on your Mini, Micro, or Lightning Sprint race car these smaller 3/4-inch aluminum tubes are best used for.

Great for Chassis and Suspension Builds for Mini, Micro, and Lightning Sprint Cars

Wherever you wish to save weight by using an aluminum adjustable threaded tube in your race car, be it for a steering linkage, chassis support, or elsewhere, it is easy to figure out exactly what you need. Simply measure the center-to-center distance of your two adjustment or mounting points, subtract 3 inches for your rod ends, bushings, or clevises you choose and then order the closest length to that measurement. So, if your final measurement after subtracting the 3 inches for your ends is 18-inches, that is what you will order from the drop-down menu.
