#91381090

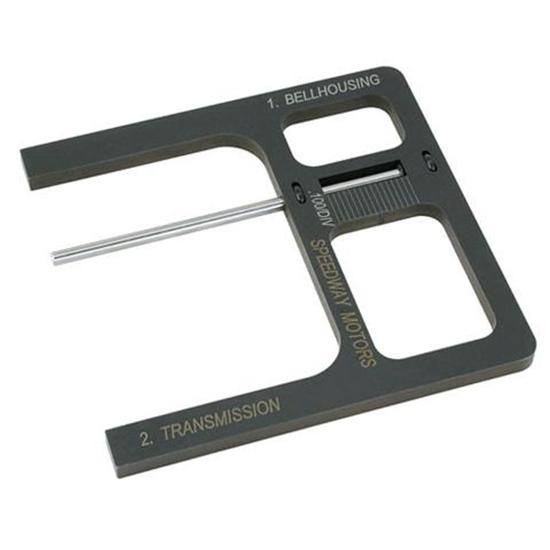

Speedway Hydraulic Clutch Release Bearing Set-Up Tool
- Make hydraulic release bearing set-up easy
- Hold the tool up to the bellhousing and push the rod in until it touches the pressure plate fingers
- Then turn the tool around and place up to transmission and you can check your clearance
$70.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Steel, 7" Overall Width
- Make hydraulic release bearing set-up easy
- Hold the tool up to the bellhousing and push the rod in until it touches the pressure plate fingers
- Then turn the tool around and place up to transmission and you can check your clearance
- Durable heavy steel construction
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91381090 Details
Speedway Motors 91381090 Details
Another Speedway exclusive -- makes hydraulic release bearing set-up as easy as 1-2-3. We all know what a pain it is to set the clearance on a hydraulic release bearing. With this handy little tool you will take the guess work and drudgery out of it.
Simply hold the tool up to the bellhousing and push the rod in until it touches the pressure plate fingers. Then turn the tool around and place it up to the transmission, and you can check your clearance.
Made of heavy steel construction with a black oxide finish, so this tool won't wear out or break. Numbers are laser etched.
-Does NOT fit T56 transmissions, as the width of the tool is not wide enough.
Learn how to properly use this tool by reading our tech article How to Install a Hydraulic Throwout Bearing.
Charts
Specs
Guides & Documents
Speedway Motors 91381090 Specifications
Speedway Motors 91381090 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91381090 |
| Brand | Speedway Motors |
| Material Type | Steel |
| GENERAL | |
| Sold in Quantity | Each |
| Overall Width | 7" |
| Overall Length | 7.5" |
| Overall Thickness | .375" |
| Notes | 'Fingers' are 5.5" apart, maximum depth that can be measured is 4.261". |
Ratings & Reviews
4.8
58 Reviews
The product, a set-up tool, is heavily commended for its quality construction and ease of use. Many customers were impressed with the tool's accuracy and its ability to simplify complex tasks, making it a must-have for tasks like adjusting the concentric clutch cylinder and installing hydraulic throw out bearings. The majority of users found the tool practical and efficient, saving both time and effort. It has been especially helpful for those without professional experience. The tool's solid construction was also praised, suggesting it is durable and reliable. While some users mentioned having to modify the tool for specific transmissions, overall, its performance was highly rated. Critics noted it may not offer the required accuracy for projects needing extreme precision. However, in general, the product is highly recommended.
Ratings & Reviews
4.8
58 Reviews
The product, a set-up tool, is heavily commended for its quality construction and ease of use. Many customers were impressed with the tool's accuracy and its ability to simplify complex tasks, making it a must-have for tasks like adjusting the concentric clutch cylinder and installing hydraulic throw out bearings. The majority of users found the tool practical and efficient, saving both time and effort. It has been especially helpful for those without professional experience. The tool's solid construction was also praised, suggesting it is durable and reliable. While some users mentioned having to modify the tool for specific transmissions, overall, its performance was highly rated. Critics noted it may not offer the required accuracy for projects needing extreme precision. However, in general, the product is highly recommended.
4.8
58 reviews
5
52
4
4
3
1
2
0
1
1
Most Liked Positive Review
5.0
High quality tool!
I use my release bearing tool on my circle track car. It makes setting up the airspace between the release bearing and the pressure plate a snap. I like it because it is lightweight and easy to read. If I had to say anything at all about the downfalls, I guess it would be that if you accidentally pull the rod out too far you will loose the little o-ring off and end up searching for an hour before you have to go get a new one...but that was my fault.
Most Liked Negative Review
1.0
Should say it does NOT work with modern LS series trans
Does not work eith modern ls1 and t-56 transmissions. Arms on tool are not wide enough. Why don't you make adapter available for t-56 trans and ls1 bell housing?
Filter by Ratings
Yes
5.0
2 months ago
Joe
Washington State
Verified
Works great and easy to use
Would Recommend
Easy to use works well
5.0
4 months ago
Billy bob
Nashville Tn
Verified
I found it a quick way to know setup .
Would Recommend
Quality tool
4.0
4 months ago
Sschultze
Conroe, TX
It is a great idea and made well. If you are using any type of modified adapter plate to bring together a transmission from a different manufacturer it may not be large enough. My adapter plate is one inch thick to put a Tremec T5 on a Volvo bell housing. This would not quite make the reach to be used because of the adapter plate. Still a good quality product that should work for most applications.
Would Recommend
No brainer
5.0
5 months ago
durchevous
Orangevale, Ca.
Verified
This was great for measuring the position of a hydraulic throw-out bearing. Nobody wants to do things twice. This tool gets it done right the first time!
Would Recommend
Yes
5.0
5 months ago
Sam
Oregon
Verified
Work says it should !
Would Recommend
I would recommend this to others.
5.0
5 months ago
Uncle
Albuquerque NM
Verified
Used it to set the clearance for the hydraulic throwout bearing
Would Recommend
I would buy again
5.0
6 months ago
Andy stachowiak
Brunswick OH
Verified
User friendly and good quality
Would Recommend
Saved lots of time!
5.0
7 months ago
Steve
Chino, CA
Verified
Tool was very easy to use. Saved myself lots of time by using this tool.
Would Recommend
Supper easy to use tool.
5.0
8 months ago
Chief
Lanexa, va
Verified
This tool takes the guess work out of measuring throw out bearing travel. Needed three hands with straight edge and caliber. Measurement is repeatable.
Would Recommend
Great product, quality built piece
5.0
8 months ago
Pat
Mooresville indiana
Verified
It will make it much easier setting up this clutch throw out bearing . no more installing and removing the transmission several times to get the clutch adjusted properly.
Would Recommend
Showing 10 of 58 reviews
