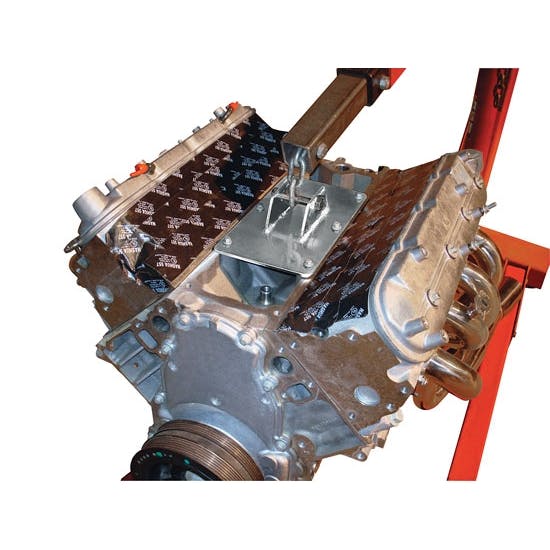

Speedway GM LS V8 Engine Storage Stand with Lift Plate, Leveler
Speedway GM LS V8 Engine Storage Stand with Lift Plate, Leveler
Speedway Motors

|

#9108791

Speedway GM LS V8 Engine Storage Stand with Lift Plate, Leveler

  • Kit includes everything you need to get your LS engine in or out of your vehicle and set up in the garage while being priced so low anyone can afford them.
  • 1/4" thick lift plate allows you to safely and precisely install or remove your LSx engine by its valley cover bolts
  • 3/4 ton engine leveler is fully adjustable with threaded rod and three-position chain mount holes per end
See More

Type:

Standard W/ Lift Plate/Leveler

RollerRoller W/ Lift PlateRoller W/ Lift Plate/LevelerStandardStandard W/ Lift Plate

$199.99

/kit

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Product Summary

Universal Fit, 0.075" Material Thickness, Steel, Red

  • Kit includes everything you need to get your LS engine in or out of your vehicle and set up in the garage while being priced so low anyone can afford them.
  • 1/4" thick lift plate allows you to safely and precisely install or remove your LSx engine by its valley cover bolts
  • 3/4 ton engine leveler is fully adjustable with threaded rod and three-position chain mount holes per end
  • Motor stand is light, compact, and you can even leave the tranny attached
  • Fits all Gen III and IV GM motors 1997 and newer.

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #9108791
Material TypeSteel
FinishPowdercoated
ColorRed
Hardware IncludedYes
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9108791 Details

The days of scratching the paint in your engine bay are over. This kit includes everything you need to get your LS engine in or out of your vehicle and set up in the garage while being priced so low anyone can afford them.

The polished stainless steel 1/4" thick lift plate allows you to safely and precisely install or remove your LSx engine by its valley cover bolts. It fits all Gen III and IV GM motors 1997 and newer. Includes a Grade 8 nut and bolt.

The heavy-duty drop forged steel constructed 3/4 ton engine leveler is fully adjustable with threaded rod and three-position chain mount holes per end. Allows you to tilt engine as needed. Includes heat treated chains and hooks.

The motor stand is light, compact, and you can even leave the tranny attached. The stand is made with 1" x 2" x 14 gauge tubing. The mounting plate is made with 1/4" steel. The stand has 9-1/4" clearance w/o casters to fit the deep oil pans. Mounting bolts are included.

Note: The engine storage stand will NOT clear the "batwings" of a C5 Corvette oil pan when it is bolted to an LS engine.

For a mobile stand, we offer Kit # 9108790 that includes casters

Kit Includes:

  • Quick Time 10100 GTP LSx Engine Lift Plate
  • Speedway GM LS V8 Engine Storage Stand
  • Performance Tool W41030 Engine Leveler

Speedway Motors 9108791 Specifications

KEY SPECS
MFG. Part #9108791
BrandSpeedway Motors
Material TypeSteel
FinishPowdercoated
ColorRed
Hardware IncludedYes
GENERAL
Material Thickness0.075"
Sold in QuantityKit
Noteshardware included

Fitment

  • GM LM4

  • GM LS6

  • GM LS2

  • GM LSA

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM LM7

  • GM LQ9

  • 6.2 Chevy LS V8

  • GM L76

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LY5

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS1

  • GM LS6

  • GM LS2

  • GM LS3

  • GM LS4

  • GM LS4

  • 4.8 Chevy LS V8

  • GM LM7

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ9

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LS3

  • GM LM4

  • GM LMG

  • GM LY5

  • GM LM7

  • GM L59

  • GM LM7

  • GM LC9

  • GM LMG

  • GM LY5

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LQ4

  • GM LMG

  • GM LY5

  • 4.8 Chevy LS V8

  • GM L59

  • GM LM7

  • 4.8 Chevy LS V8

  • GM LMG

  • GM LY5

  • 6.2 Chevy LS V8

  • GM LC9

  • GM LMG

  • GM LC9

  • GM LMG

  • GM LMG

  • GM LY5

  • GM LH6

  • GM LS2

  • GM LM4

  • GM LM4

  • GM LM4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM LM7

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L33

  • GM LQ4

  • GM L20

  • GM LC9

  • GM LMG

  • GM L33

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 4.8 Chevy LS V8

  • GM L20

  • GM LM7

  • GM LY2

  • GM LC9

  • GM LMG

  • GM LM7

  • GM L59

  • GM LM7

  • GM LQ4

  • GM LQ4

  • GM LQ4

  • 6.2 Chevy LS V8

  • GM LH8

  • GM LH8

  • GM LS1

  • GM LS3

  • GM LS1

  • GM LS2
