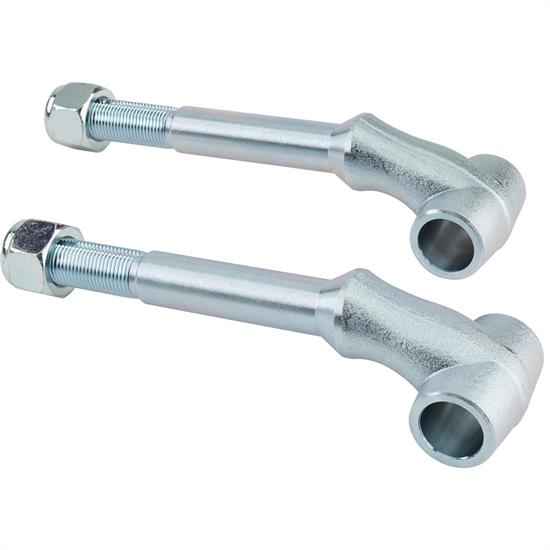

Speedway Front Solid Axle Leaf Spring Perch, Plain Forged Steel
- Works with 1928-34 Ford front ends with 1-3/4" wide cross spring
- Forged 4140 steel construction and built to strict tolerances, to ensure a tight fit
- Extra-long to add a lower shock mount and includes nylock nut
$47.99
/pair
In Stock
$52.99
Save $5.00
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.750" Overall Width, Steel, Natural
- Works with 1928-34 Ford front ends with 1-3/4" wide cross spring
- Forged 4140 steel construction and built to strict tolerances, to ensure a tight fit
- Extra-long to add a lower shock mount and includes nylock nut
- 2-1/2" from top of threads to mid-shoulder, 2-7/8" from top of threads to top of shoulder, Thread length is 1-7/8" with 5/8"-18 (Fine) threads
- Distance from the top of the shoulder to the bottom of the threads is 4-3/4"
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91033047 Details
Speedway Motors 91033047 Details
Works with 1928-34 Ford front ends with 1-3/4" wide cross spring. Extra-long for lower shock mounts. Includes nylock nut.
- Built to strict tolerances, to ensure a tight fit
- Forged 4140 steel construction
- 2-1/2" from top of threads to mid-shoulder
- 2-7/8" from top of threads to top of shoulder
- Thread length is 1-7/8"
- 5/8" fine thread
- Distance from the top of the shoulder to the bottom of the threads is 4-3/4"
- These are cut with a 1/8th inch keyway slot, but the key stock is not included. This can be purchased at almost any hardware/home improvement stores.
Charts
Guides & Documents
Speedway Motors 91033047 Specifications
Speedway Motors 91033047 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91033047 |
| Brand | Speedway Motors |
| GENERAL | |
| Overall Width | 1.750" |
| Inside Diameter | 0.750" |
| Thread Length | 1.750" |
| Thread Pitch | 5/8"-18 |
| Material Type | Steel |
| Finish | Natural |
| Sold in Quantity | Pair |
| Overall Height | 6.840" |
| Under Head Length | 2.5" |
Ratings & Reviews
4.8
84 Reviews
Customers are highly satisfied with our product's quality and performance, praising its durability, good fit, and easy installation process. The material is deemed strong and well-coated, and it often matches or exceeds original equipment quality. The product is frequently labelled as perfect for customers' projects, with specific positive feedback for its use in traditional hot rods and rat rods. Many customers mention they would buy the product again or recommend it to others due to its superiority and dependability. It stands out for being reasonably priced while delivering excellent service, thus giving it an edge over competition.
Ratings & Reviews
4.8
84 Reviews
Customers are highly satisfied with our product's quality and performance, praising its durability, good fit, and easy installation process. The material is deemed strong and well-coated, and it often matches or exceeds original equipment quality. The product is frequently labelled as perfect for customers' projects, with specific positive feedback for its use in traditional hot rods and rat rods. Many customers mention they would buy the product again or recommend it to others due to its superiority and dependability. It stands out for being reasonably priced while delivering excellent service, thus giving it an edge over competition.
4.8
84 reviews
5
73
4
9
3
1
2
1
1
0
Most Liked Positive Review
5.0
Good fit and appears to be a quality man
I bought these perches to be used with my original 31 front axle and a new reverse eye leaf spring. This perch fit both of them very well and they have a nice look to them. They have a nickle finish on them I believe which would look good unpainted but I am going to blast and paint them with my frame anyhow.
Most Liked Negative Review
3.0
very nice
these are very nice, BUT, these need to be beveled on both ends. Only the top is beveled, they need to send 2 beveled washers with this, to make it complete. Other than that, they are nice.
Filter by Ratings
Would buy again
5.0
2 months ago
Wife's RatCar
Prescott AZ
Verified
Used this on my wife's rat car. Worked great
Would Recommend
I would reccommend this part to replace a broken one.
5.0
2 months ago
"Doc" 66-67
Florida
Verified
The Axle Spring Perch, Plain Forged Steel part worked out just fine. These are a bit tough to install but with an extra set of hands to job was completed without incident.
Would Recommend
Product was just as advertised
5.0
9 months ago
Hotrod
Orange, Texas
Verified
Installed on my 31 model A to add shocks. Product fit well and was exactly as described.
Would Recommend
The parts work just like l wanted.
5.0
a year ago
Secret Weapon
Woodland Ca
Verified
It's Great to be able to get the correct parts easily.
Would Recommend
Excellent
5.0
a year ago
Debsla
Iowa
Verified
Exactly what I needed…good quality…very pleased!
Would Recommend
I would buy these again they fit right and fast shipping
5.0
a year ago
Slick
Sasheen lake
Verified
The right part I needed
Would Recommend
Nice fit
5.0
2 years ago
Eddie
Sauk Rapids, MN
Verified
Goes well with the other parts I have previously ordered
Would Recommend
Yes, I would use this product again
5.0
2 years ago
Fat Jack
Centerville, Pennsylvania
Verified
Everything was great about it. Nothing bad with it at all fit perfectly.
Would Recommend
I would buy again for a future build
5.0
2 years ago
Budman
Washington
Verified
Perfect fit for my hot rod
Would Recommend
I would buy again if needed
5.0
2 years ago
PB
Virginia
Verified
Worked exactly like they were supposed to
Would Recommend
Showing 10 of 84 reviews
Questions & Answers
Questions & Answers
13 Questions • 11 Answers
Can this perch be used with a 2 inch wide leaf spring? If so what additional parts are needed. If not, do you offer a wishbone bolt/perch for a 2 inch wide spring. I need to run a 35-36 inch long spring and have only found it available in a 2 inch wide spring. I am using a 1942 passanger car axle and want to mount the spring above the axle instead of in fount of the axle. I am building a fenderless model t hot rod for the street. Using oem 1942 wishbone, split to attach to frame rails. The simplest thing might be to use a 1.75 inch wide by 35 inch long spring, but have yet to find one. The distance between the wishbone to axle boss centerlin is about 41.5 inches. Thanks for your help
by Otis
• 7 years ago
1 answer
View Answer
What perch bushings do these take? Standard Model A bushings? Thanks
by Brian
• 8 years ago
1 answer
View Answer
I bought the I-Beam split wishbones kit (91639526) that included the spring perches (91033047) and lower shock mounts (91036105) which have a key way on the perch and slot in the shock mount but the is no key included in the kit. Is it necessary to have a key installed to keep the shock perpendicular to the axle? Where can I purchase a key if needed, from Speedway or an auto parts store? Overall the kit looks great and was shipped 2 days after ordered.
by The Colonel
• 8 years ago
1 answer
View Answer
this part shows it will fit a 28-34 ford my axle is looking like a 42-48 ford by looks of the spindle and measurements would these spring perch bolts still work on this axle ok
by john
• 9 years ago
1 answer
View Answer
Does this require a spring perch bushing into the axle?
by Angelking
• 9 years ago
1 answer
View Answer
I have a T speedster with the front spring mounted more-or-less in the stock configuration, the spring being perpendicular to the frame. Can these perches be bent, cold or hot, to adjust for caster? Original perches are about 5 1/2° off from being square to the bolt/shaft section.
by VanP
• 10 years ago
1 answer
View Answer
Why is there no key way in the spring perch to match the lower shock mount key way such as part # 910-36105 I purchased a front end kit back in early 2013. I am now working on shocks for my 1932 ford pickup. I called speedway back in mid 2013 when I installed the kit and asked about this issue. The tech told me you weld the two parts together. Ok I'm new to this back then, I dropped the issue. I have learned a lot sense then. It just doesn't make sense to have keyed and not the other.
by Newbe
• 11 years ago
1 answer
View Answer
what is the bolt diameter?
by Gus1953
• 12 years ago
2 answers
View Answers
What grade hardness are these perch bolts? Grade 2, or Grade 5
by FeBlock
• 13 years ago
1 answer
View Answer
does speedway sell a cone spacer to fit these, like the one sold with the flat top perches.
by Jim
• 14 years ago
1 answer
View Answer
10 of 13 questions shown
