Speedway -4 AN Universal Racing Brake Line System
by
Speedway Motors6 Reviews
|
2 Questions
- This kit includes everything you need to plumb any type of race car from master cylinder to calipers
- 3/16" steel brake lines with factory flared connections deliver leak free performance
- AN 4 Stainless steel braided flex lines with one 90 degree end are included (2) 19" long and (2) 26" long
See More
$169.99
kit
In Stock
$285.73
Save $115.74
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 0.188" Tube O.D., -4 AN
- This kit includes everything you need to plumb any type of race car from master cylinder to calipers
- 3/16" steel brake lines with factory flared connections deliver leak free performance
- AN 4 Stainless steel braided flex lines with one 90 degree end are included (2) 19" long and (2) 26" long
- Four billet aluminum frame adapter fittings are included as well as bolt on frame tabs which simplify installation
- Four unions, two tee fittings and a bag of line clamps are also supplied to hold the lines in place in even the harshest environments
Comes as a Kit
View Kit Components
See more details
Key Specs
MFG. Part # | 91031884 |
Brand | Speedway Motors |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91031884 Details
Speedway Motors 91031884 Details
Kit includes everything you need to plumb any type of race car from master cylinder to caliper.
Stainless Steel braided brake lines with 90 deg. end
- These high quality stainless steel, braided fluid lines have a 90° fitting on one end and a straight fitting on the other
- They work well for brake lines, clutch lines and gauge lines
- Anodized Steel Ends
3/16" steel brake lines
If you choose to use inverted flare hardware on your car, Speedway can save you time, effort, and money.
- These 3/16" mild steel "hard" lines bend easily and smoothly with hand tools, already have a double flare on each end, have male fittings threaded 3/8"-24 installed and have a 45° inverted flare.
- Double wall, copper plated steel brake line. High burst strength
- Resistant to vibration and fatigue. 3/16" O.D. tubing
- Each end flared with 3/8"-24 fitting
Learn more about flaring lines and how to select proper automotive fittings by reading our tech article. The Principles of Automotive Fittings.
Now available to assist in your brake line plumbing needs, please consider the available Stainless Steel Pipe to Inverted Flare and Inverted Flare Adapter Fittings
IFF Brass Union Coupler, 3/8 Inch-24 IFF to 3/8 Inch-24
- Couple two brake lines together with these handy fittings
- 3/8"-24 female to female thread
- Brass
Aluminum Brake Line Fitting
- This aluminum fitting will accept AN4 on one end, and the common 3/8"-24 female inverted flare on the other
- It includes a jam nut for easy tab mounting
Speedway Removable Brake Line Hose Retaining Tabs
- These handy brake line tabs can be bolted or riveted to your frame rather than welded
- 5/8" brake line hole with two 3/16" mounting holes
- Includes two tabs and two brake line retaining clips
3/8 Inch-24 IFF Each Port, Plain Adapter Tee
- This brass tee fitting is commonly used in brake line systems
- It features three 3/8"-24 inverted flare female (45-degree flare) ports
Insulated Line/Tubing Mount Clamps, 3/16 Inch
- You will need these rubber coated fuel line tube clamps and brake line clamps to finish your plumbing job
- These tube clamps are made from zinc plated steel, are easy to work with, durable, and corrosion resistant

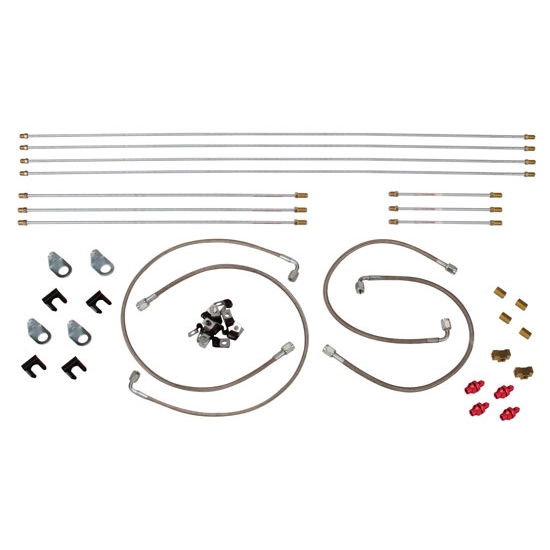

Kit Includes:
- (2) -4 AN 19" Stainless Steel braided brake lines with 90 deg. end
- (2) -4 AN 26" Stainless Steel braided brake lines with 90 deg. end
- (4) Aluminum 3/8"-24 to -4 AN bulkhead frame fittings
- (3) 8" long 3/16" steel brake lines
- (3) 20" long 3/16" steel brake lines
- (3) 40" long 3/16" steel brake lines
- (4) Removable brake line tabs
- (4) 3/8"-24 brass unions
- (2) 3/8"-24 IFF "T" fittings
- (10) Insulated line clamps
Note: For off-road use only
Charts
Speedway Motors 91031884 Specifications
Speedway Motors 91031884 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 91031884 |
Brand | Speedway Motors |
GENERAL | |
Tube O.D. | 0.188" |
AN Size | -4 AN |
Thread Pitch | 3/8"-24 IFM |
Sold in Quantity | Kit |
