Part # 91031883
Speedway -3 AN Universal Racing Brake Line System
by
Speedway Motors4 Reviews
|
2 Questions
- (2) -3 AN 19" Stainless Steel braided brake lines with 90 deg. end, (2) -3 AN 26" Stainless Steel braided brake lines with 90 deg. end and (4) Aluminum 3/8"-24 to -3 AN bulkhead frame fittings
- (3) 8" long 3/16" steel brake lines, (3) 20" long 3/16" steel brake lines and (3) 40" long 3/16" steel brake lines
See More
$169.99
kit
In Stock
$277.73
Save $107.74
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 0.188" Tube O.D., -3 AN
- (2) -3 AN 19" Stainless Steel braided brake lines with 90 deg. end, (2) -3 AN 26" Stainless Steel braided brake lines with 90 deg. end and (4) Aluminum 3/8"-24 to -3 AN bulkhead frame fittings
- (3) 8" long 3/16" steel brake lines, (3) 20" long 3/16" steel brake lines and (3) 40" long 3/16" steel brake lines
- (4) Removable brake line tabs, (4) 3/8"-24 brass unions, (2) 3/8"-24 IFF "T" fittings and (10) Insulated line clamps
- Kit includes everything you need to plumb any type of race car from master cylinder to caliper, for off road use only
- New parts make installation cleaner
Comes as a Kit
View Kit Components
See more details
Key Specs
MFG. Part # | 91031883 |
Brand | Speedway Motors |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Kit includes everything you need to plumb any type of race car from master cylinder to caliper.
Brake Line
These high quality stainless steel, braided fluid lines have a 90° fitting on one end and a straight fitting on the other. They work well for brake lines, clutch lines and gauge lines. AN 3, 19 Inch Stainless Steel. and AN 3, 26 Inch Stainless Steel Lines Included
Steel Brake Line
These 3/16" mild steel "hard" lines bend easily and smoothly with hand tools, already have a double flare on each end, have male fittings threaded 3/8"-24 installed and have a 45° inverted flare.
Double wall, copper plated steel brake line. High burst strength. Resistant to vibration and fatigue. 3/16" O.D. tubing. Each end flared with 3/8"-24 fitting.
Learn more about flaring lines and how to select proper automotive fittings by reading our tech article. The Principles of Automotive Fittings.
Brass Union
Couple two brake lines together with these handy fittings. 3/8"-24 female to female thread. Brass.
Brake Line Fitting
These brake line fittings from Longacre® feature a "bulkhead" style and come with a jam nut for easy mounting. They are CNC machined from lightweight aluminum.
- Fitting side 1: 3/16" female inverted flare
- Fitting side 2: -3 AN male
- Angle: Straight
- Material: Aluminum
- Finish: Red anodized
Brake Line Tabs
These handy brake line tabs can be bolted or riveted to your frame rather than welded. 5/8" brake line hole with two 3/16" mounting holes. Includes two tabs and two brake line retaining clips.
Brass "T" Fitting
This brass tee fitting is commonly used in brake line systems. It features three 3/8"-24 inverted flare female (45-degree flare) ports.
Insulated Line Clamps
You will need these rubber coated fuel line tube clamps and brake line clamps to finish your plumbing job. These tube clamps are made from zinc plated steel, are easy to work with, durable, and corrosion resistant. Choose from a full range of sizes.
10 clamps per package.

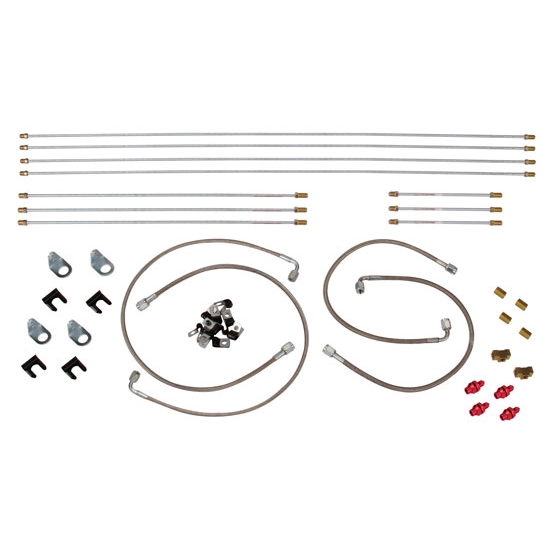

Includes:
- (2) 19" Brake Line With 90 Degree Ends - 91031892-3
- (2) 26" Brake Line With 90 Degree Ends - 91031893-3
- (3) 3/16 Steel Brake Line - 8 Inches Long - 91031800-8
- (3) 3/16 Steel Brake Line - 20 Inches Long - 91031800-20
- (4) 3/16 Steel Brake Line - 40 Inches Long - 91031800-40
- (4) Brass Union Fittings 3/8-24 To 3/8 IFF - 91031832
- (4) AN3 to 3/8 IFF Frame Fittings - 47545263
- (2) Pairs of Removable Brake Line Retaining Clips - 91031309
- (2) 3/8-24 IFF "T" Fittings - 91031835
- (1) 3/16 Insulated Line Clamps, pack of 1o - 91031312-3/16
Note: For off-road use only
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | 91031883 |
Brand | Speedway Motors |
GENERAL | |
Tube O.D. | 0.188" |
AN Size | -3 AN |
Thread Pitch | 3/8"-24 IFM |
Sold in Quantity | Kit |
