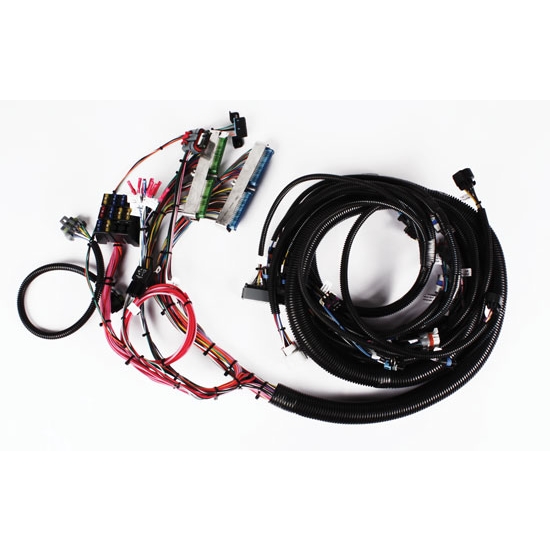

Speedway 2004-2008 Vortec V8 Wiring Harness, Extended

#91004084

Speedway 2004-2008 Vortec V8 Wiring Harness, Extended

Each new harness contains in depth application specific instruction sheets, Clearly marked factory GM connectors, labeled GXL jacketed wire, GM color coding and pre-fitted corrugated slit loom for an extra value & professional look
Standard length harness are 54" from the back of the engine to the PCM connectors

$707.99

/each

In Stock

Order soon, only 2 left in stock!

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Universal Fit

Each new harness contains in depth application specific instruction sheets, Clearly marked factory GM connectors, labeled GXL jacketed wire, GM color coding and pre-fitted corrugated slit loom for an extra value & professional look
Standard length harness are 54" from the back of the engine to the PCM connectors

See more details

Key Specs

MFG. Part #	91004084
Brand	Speedway Motors

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

For 2004-2008 Vortec V8 with electronic throttle body. Uses throttle actuator control module (metal bracket style) and pedal assembly with 9 pins.
Common aftermarket fuel pump and fan relays are included. Fan relay has a load rating of 30 amps so it can handle most fans, however if the fan requres more current to operate then the relay can be replaced with a 40 amp relay from any auto parts retailer.
These harnesses feature all of the connection points necessary to run the engine and transmission if applicable. The emission equipment has been eliminated and only the needed connections to run the engine and transmission are incorporated.
ECM programming will need to be done to remove all of the unneeded trouble codes that may be active from the stock application. Programming will need to be done to remove VATS (vehicle anti-theft system) programming, otherwise the engine will not run. These wiring harnesses do not include any type of VATS module to defeat the theft system.
Standard length harnesses are 54" from the back of the engine to the PCM connectors. Extended length harrnesses add an extra 4 ft. to remote-mount the PCM in your glovebox or underneath your dash.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 91004084 Details

Take the fear out of electronic fuel injection! These engine wiring harnesses are designed to make your engine transplant effortless. Each new harness contains in-depth application-specific instruction sheets, clearly marked factory GM connectors, labeled GXL jacketed wire, GM color coding, and pre-fitted corrugated slit loom for an extra value and professional look. All un-needed emissions wiring is eliminated to make the install as simple and reliable as possible.

2004-2008 Vortec V8 - Electric Throttle Body

Made from premium grade GXL jacketed automotive wire
Most wiring is larger gauge than stock application for durability
No splices to reduce points of failure
All primary grounding is done at the head or block and grounding points are isolated from each other to reduce electrical interference and minimize ground looping
Harness wiring matches GM wiring configuration and jacket colors follow GM color coding for easy identification
All electrical connectors are made by Delphi or Packard and are direct fit for GM cars and trucks
Can be installed to run engine in 20 minutes, but figure 4-6 hours for a professional installation
Diagnostic connector or OBD2 port for connection to scanners and tuning tools

Warranty Information

This harness is covered under warranty for the lifetime of the original owner against defects in workmanship within the wiring harness only, not time, or any damage in result of defective workmanship of the wiring.

CA Prop 65

Speedway Motors 91004084 Specifications

KEY SPECS
MFG. Part #	91004084
Brand	Speedway Motors

GENERAL
Type	Engine wiring harness, extended length for 2004-2008 Vortec V8 with electronic throttle body
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

I have a 78 trans am and want to put in a aluminum 5.3 from a 2005 Silverado which harness do I need?

by Jorge

• 7 years ago

1 answer

View Answer

I have a 1982 c10 and i got a motor and transmission from a 07 silverado classic 5.3 with a 4l60e What is the harness that i need for this truck and engine combination?

by Ramon

• 7 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

2007-2011 Chevy Avalanche

GM LC9
GM LMG

2000-2011 Chevy Silverado 1500

GM L20

2014 Chevy Suburban

GM LMG

2007-2011 Chevy Suburban 1500

GM LC9
GM LMG

2012-2014 Chevy Suburban 1500

GM LMG

2012-2013 Chevy Suburban 2500

GM LMG

2007 Chevy Tahoe

GM LMG

2008-2011 Chevy Tahoe

GM LC9
GM LMG

2012-2014 Chevy Tahoe

GM LMG

1999-2011 GMC Sierra 1500

GM L20
GM LC9
GM LMG

2000-2011 GMC Yukon

GM L20

2012-2013 GMC Yukon

GM LC9
GM LMG
