Part # 91032217

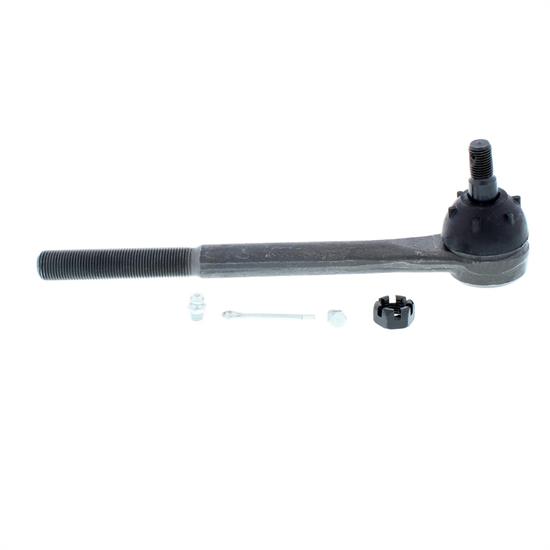

Speedway 1978-88 GM A/G-Body Metric Inner Tie Rod

by

|

  • This factory replacement inner tie rod end fit 1978 to 1988 G body (Metric chassis)
  • Also used on many IMCA Modified and Sport Mod applications along with a swedge tube and heim joint outer
  • Tie rod end has the grease zerk on the back of the tie rod end and not on the end as an inner tie rod end would utilize

$11.99

each

In Stock


Quantity

Select a vehicle to verify Fitment

Product Summary

Ends Tie Rod Component, Inner Position, Natural

  • This factory replacement inner tie rod end fit 1978 to 1988 G body (Metric chassis)
  • Also used on many IMCA Modified and Sport Mod applications along with a swedge tube and heim joint outer
  • Tie rod end has the grease zerk on the back of the tie rod end and not on the end as an inner tie rod end would utilize
  • Greasable design for a long service life
  • Castle nut, cotter pin, grease zerk and boot are included to simplify installation

Key Specs

Tie Rod ComponentEnds
PositionInner
Tie Rod StyleStraight
Thread TypeLH Male
Thread Pitch5/8"-18

Need To Know

Free Shipping on Orders Over $99

Need help? Call 800.979.0122

Quick and Easy Returns

Details

Inner tie rod end for an IMCA Modified race car application based off of a 1978-up Metric GM chassis configuration.

Note:   Tie rod end has the grease zerk on the back of the tie rod end and not on the end as an inner tie rod end would utilize.  This is not a direct replacement for a Moog type ES2034RL.

Please note the available inner tie rod end #s 910-2034 or 106-30221 noted below when the inner tie rod with a grease zerk in the end is required for an o/e type replacement for the 1978-up GM Metric application.

Item Details

Moog # ES2034RL
78-81 A-Body
78-88 G-Body

IMCA Approved.

Application

Inner tie rod end application for IMCA Modified race car application based off of a 1978-up metric chassis configuration.

Specifications

KEY SPECS
MFG. Part #91032217
Tie Rod ComponentEnds
PositionInner
Tie Rod StyleStraight
Thread TypeLH Male
Thread Pitch5/8"-18
GENERAL
Degree of Taper7 degree
Shank Length1.86"
Material TypeSteel
FinishNatural
Overall Width1.65"
Overall Length9.5"
Thread Length3"
Grease Zerk IncludedYes
Hardware IncludedYes
Sold in QuantityEach
NotesMOOG ES2034RL.
